High Pressure Diesel Driven Mining Screw Air Compressor Machine

1 Set/Sets
MOQ
negotiable
Price
High Pressure Diesel Driven Mining Screw Air Compressor Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Screw Air Compressor,Mining Air Compressor
Name: Screw Air Compressor Machine
Power Source: Diesel
Engine Brand: Cummins
Motor Power: 294KW
Working Pressure: 25bar
Capacity: 31m3/min
Application: Water Well,mining Blasting
Feature: High Drilling Efficiency,Multifunctional
Configuration: Stationary
Cooling Method: Both Air/Water Cooling Available
Keywords: Water Well Screw Air Compressor
Condition: New
After-sales Service Provided: Online Support
Warranty: 1 Year
Dimension(l*w*h): 3800x1800x2050mm
Weight: 4800 KG
Graphic Customization: Min. Order: 1
Customized Logo: Min. Order: 1
Highlight:

High Pressure Screw Air Compressor

,

Diesel Driven Screw Air Compressor

,

Mining Screw Air Compressor Machine
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: QSDS1100LG-25C
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 12-20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Month
Product Description

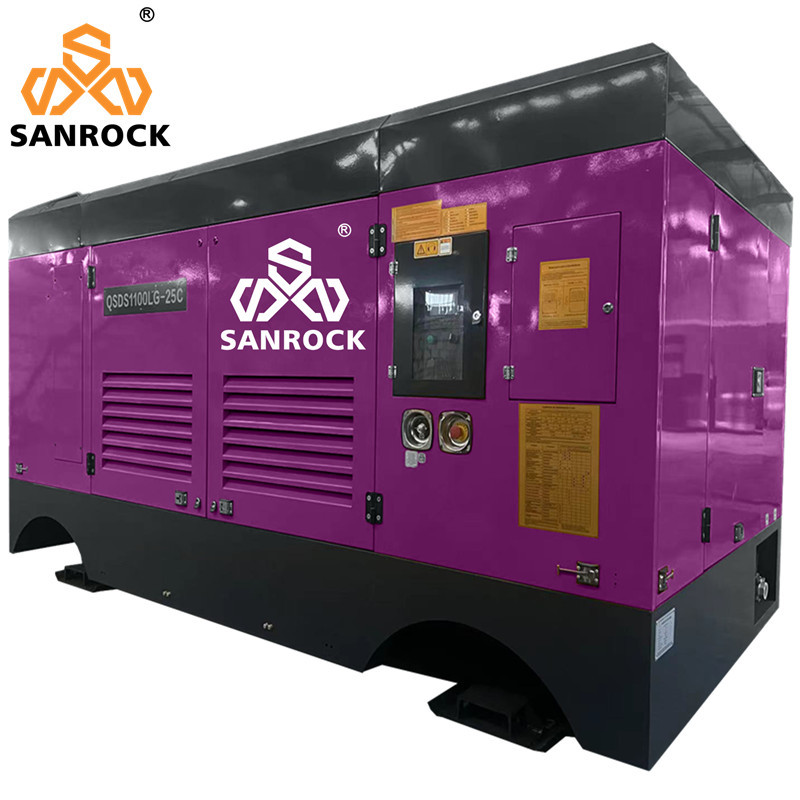

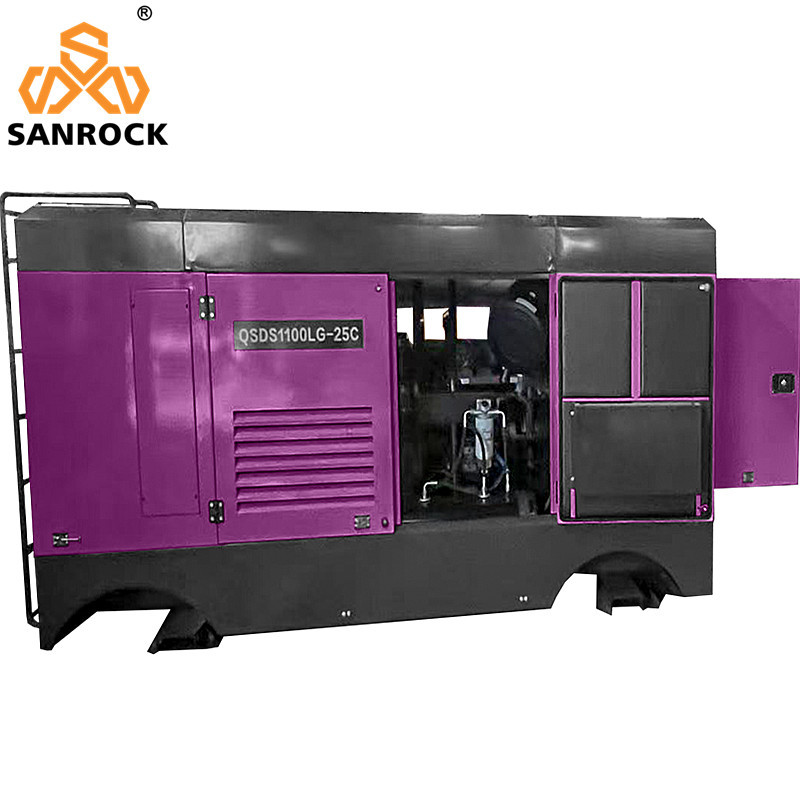

High Pressure Diesel Driven Mining Screw Air Compressor Machine 0High Pressure Diesel Driven Mining Screw Air Compressor Machine 1



High Pressure Diesel Driven Mining Screw Air Compressor Machine 2


1. Full series product optimized for stronger frame and better towing protection and safety; stronger roof loading capabilities to meet customer load carry needs with rubber protection strips.
2. All pressure pipes are connected with steel tubes, it has excellent sealing and protect rubber from prevent aging, abrasion resistance and has attractive appearance.
3. Designed safety air filter unit and stainless steel air inlet pipes for guaranteed dust filter ability and better protection against dirty air due to rubber horse damage.
4. All new designed cooler with independent modular unit and secured by structural component with cushion pad without any pressure points, effectively eliminating cooler damage by shroud deformation; independent damage unit placement made easy without removing the cooler assembly.
5. New designed protected cooler for higher efficiency and better safety protection. Full body sound absorbent cotton and rear car silencer designed to make operate noise reduce 40% less than normal products.
6.Large stand-alone capacity, no clearance volume, reasonable structure and ideal force balance, long life of the host, easy maintenance and few wearing parts.
7.To add to the benefits of the portable compressors,this series specially good for continues running and with transportation requirement in consideration,upgraded for better durability and lower fuel consumption.

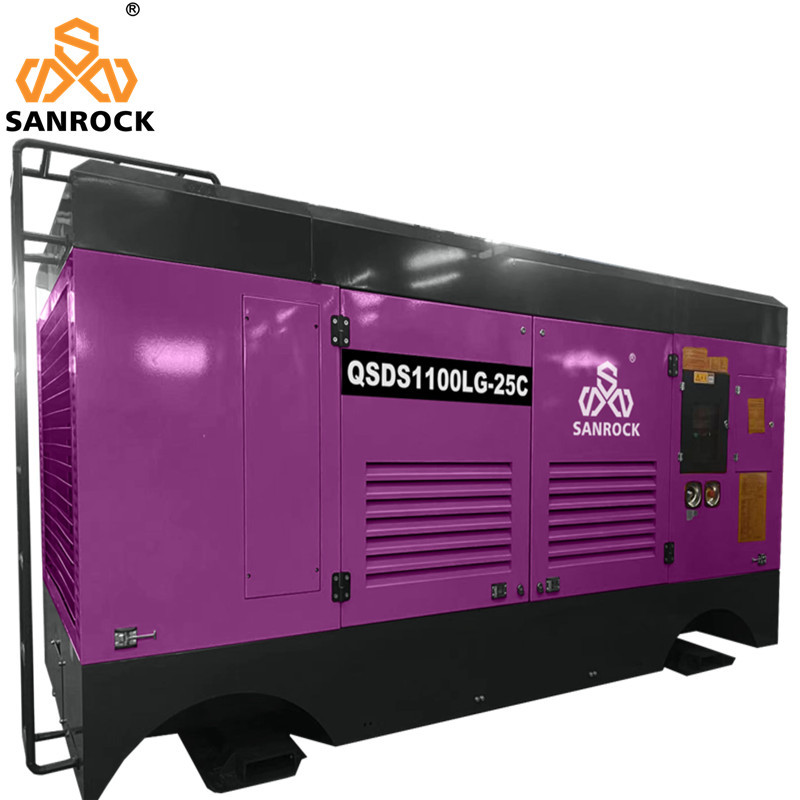

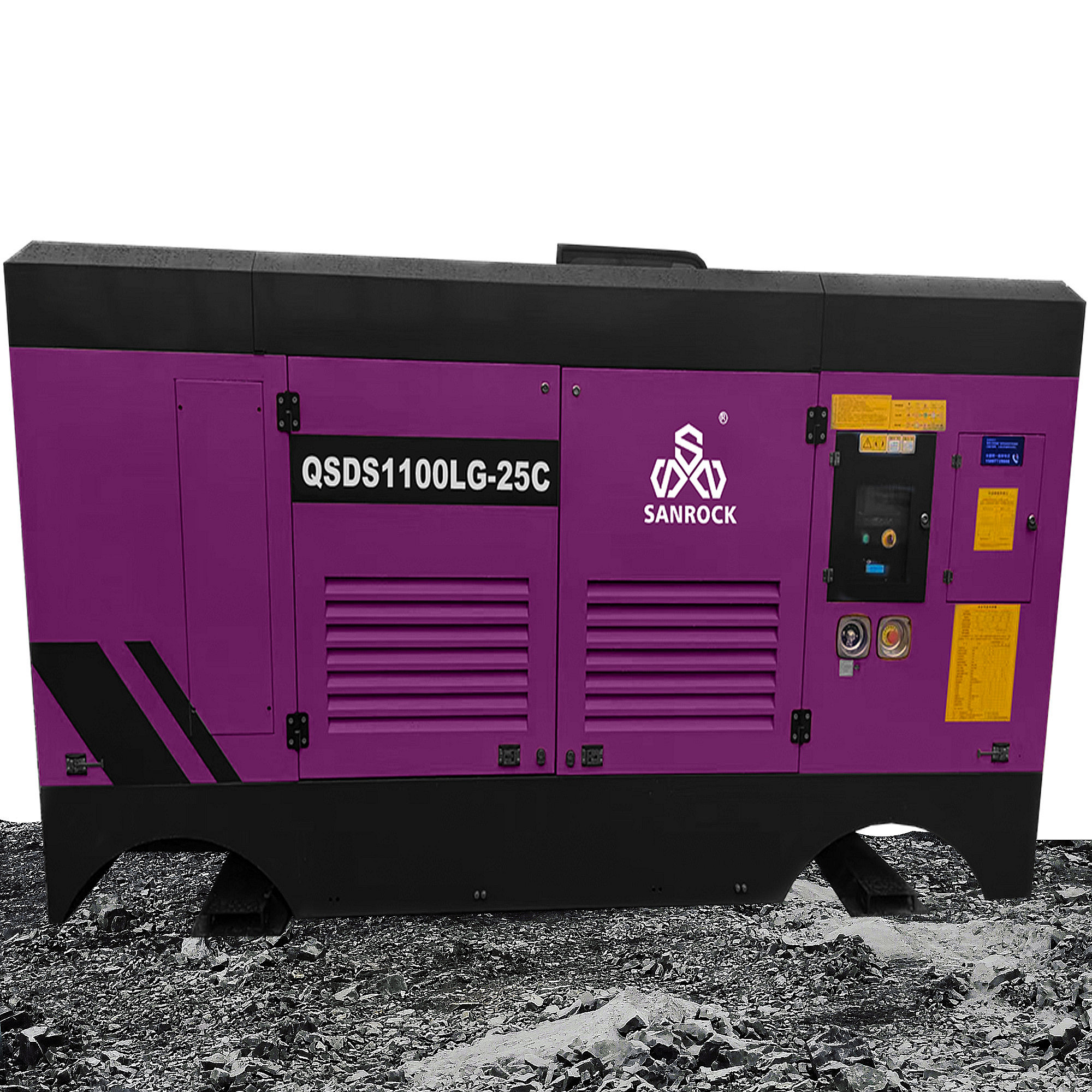

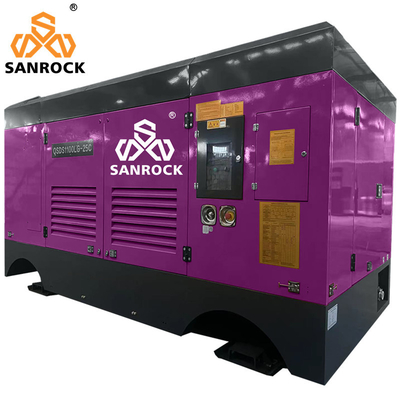

High Pressure Diesel Driven Mining Screw Air Compressor Machine 3
High Pressure Diesel Driven Mining Screw Air Compressor Machine 4
High Pressure Diesel Driven Mining Screw Air Compressor Machine 5

High Pressure Diesel Driven Mining Screw Air Compressor Machine 6High Pressure Diesel Driven Mining Screw Air Compressor Machine 7

Products Description

Brand Name:Sanrock
Product name: screw air compressor
Model Number:QSDS1100LG-25C
Emission standard:Stage III
Fuel tank capacity :650L
Exhaust port specifications * Quantity:G2*1 & G3/4*1
Air end:two stage compression
Working condition:three-condition
Max. working/ idle speed:1900/1400rpm
Motor power:294kw
Diesel Engine Brand:Cummins
Working pressure:25bar
Capacity:31m3/min
Application:water well drilling,mining rock blasting,hole drilling
Demensions (L*W*H):3800x1800x2050mm
Weight:4800kg
Certification:CE

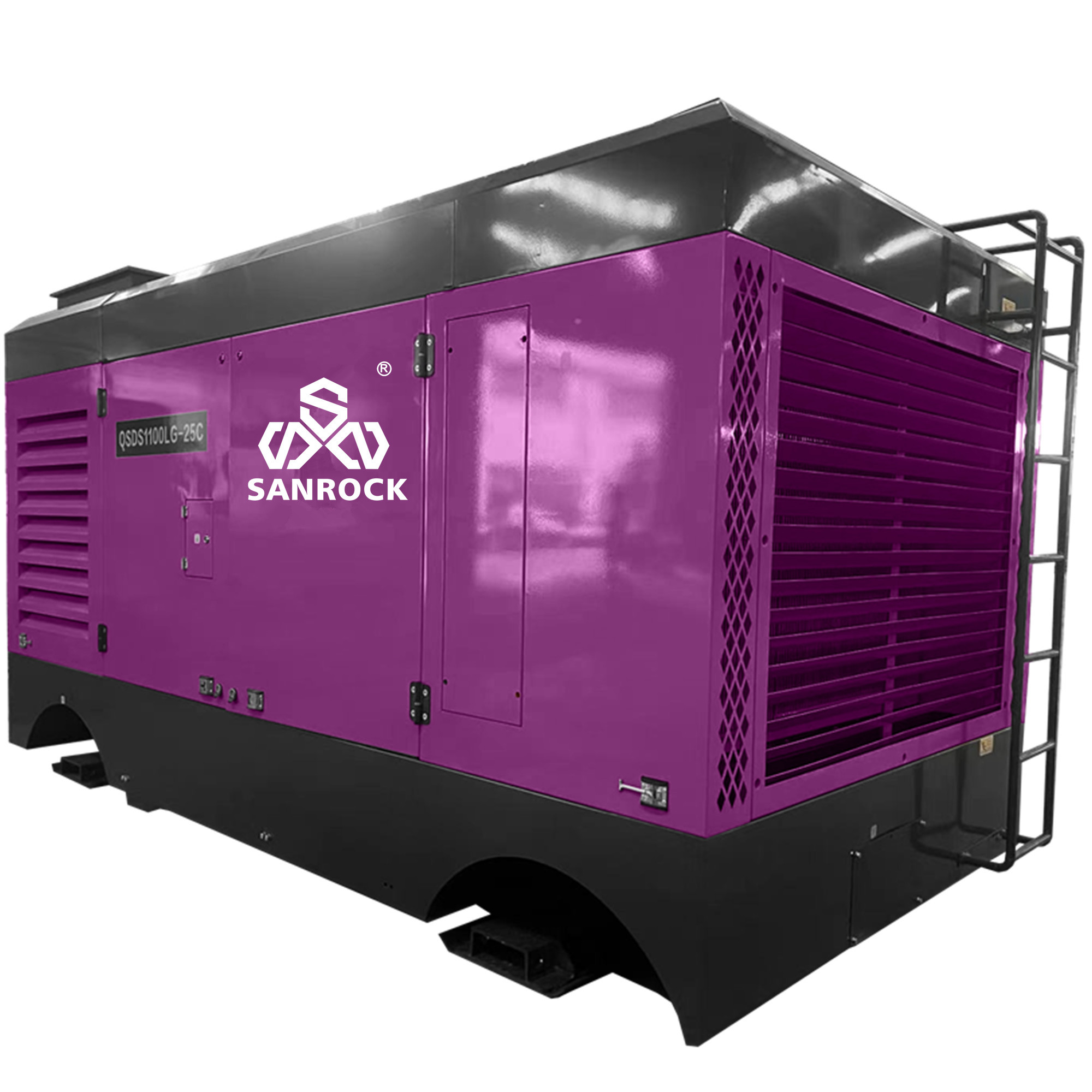

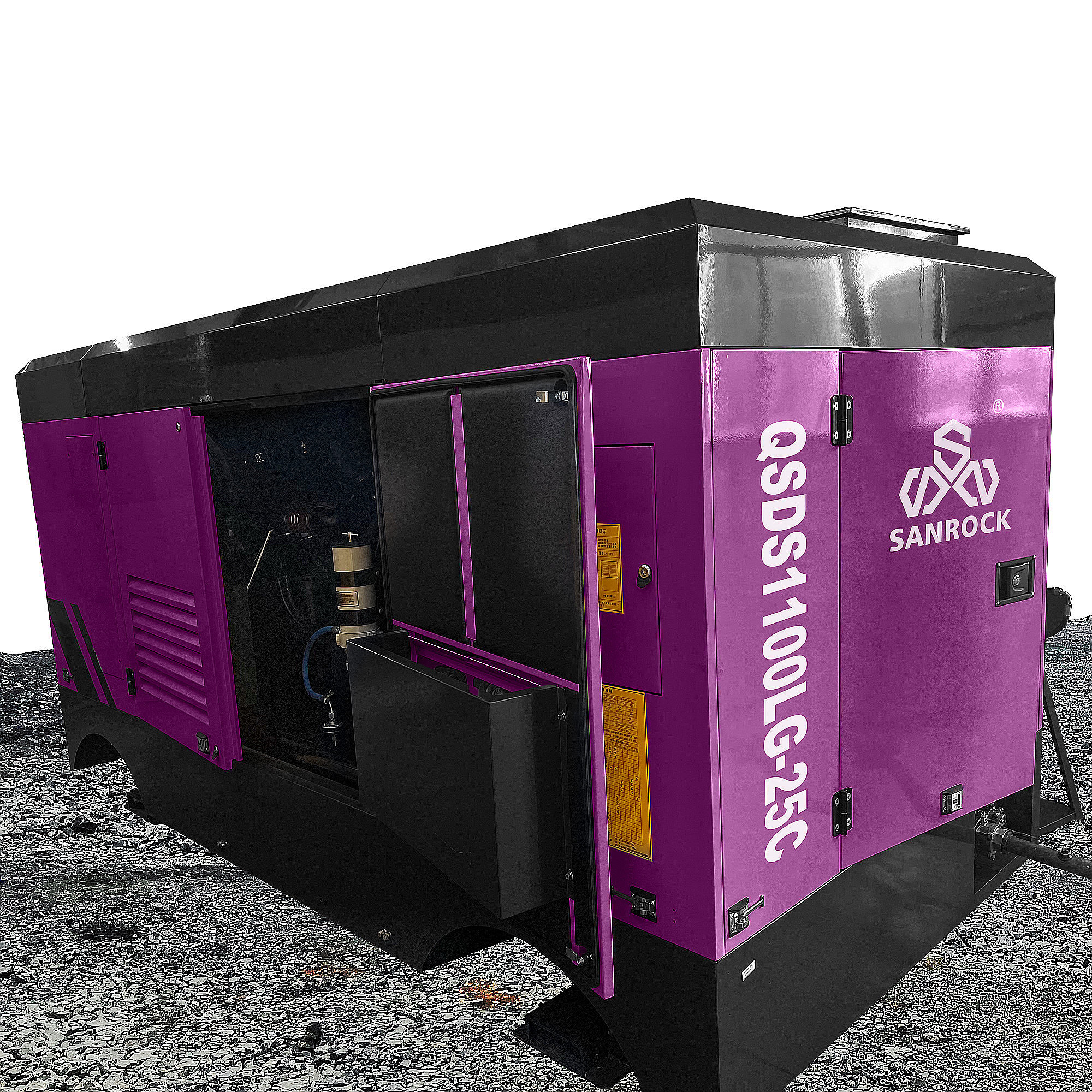

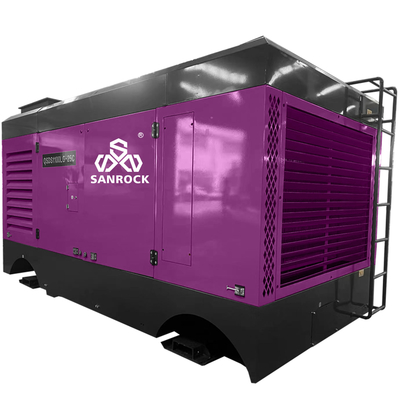

High Pressure Diesel Driven Mining Screw Air Compressor Machine 8High Pressure Diesel Driven Mining Screw Air Compressor Machine 9High Pressure Diesel Driven Mining Screw Air Compressor Machine 10High Pressure Diesel Driven Mining Screw Air Compressor Machine 11High Pressure Diesel Driven Mining Screw Air Compressor Machine 12High Pressure Diesel Driven Mining Screw Air Compressor Machine 13
High Pressure Diesel Driven Mining Screw Air Compressor Machine 14

High Pressure Diesel Driven Mining Screw Air Compressor Machine 15High Pressure Diesel Driven Mining Screw Air Compressor Machine 16

Company Profile

High Pressure Diesel Driven Mining Screw Air Compressor Machine 17

High Pressure Diesel Driven Mining Screw Air Compressor Machine 18

High Pressure Diesel Driven Mining Screw Air Compressor Machine 19

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
