Features:
1.This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
2.Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
3.Surface hydraulic core drilling rig has excellent performance, drilling depth of 500meters.
4.Mud pump system meets the requirements of different geological conditions and different drilling hole diameter.
5.The standard configuration is NQ, HQ PQ diameter drilling tools which can meet the high pressure, high torque, high rpm drilling parameters to achieve efficient and fast hole formation.
6.High Efficiency With big torque, high power unit allocation and with reasonable structure design ,all these guarantee the drill rig’s high operation and performance efficiency.
7.With an elegant outline, compact structure, reliable performance and operation easily.
,
Products Description
|
Model
|
SRC500M
|
|
Drilling capacity
|
Drilling depth for water well
|
350m(75mm~220mm)
|
|
Wireline coring NQ size
|
500m
|
|
Borehole (Drill bit) dia.
|
Ø75～Ø350mm
|
|
Drilling angle
|
90°
|
|
Drive head
|
Lifting capacity
|
120kN
|
|
Thrusting capacity
|
85KN
|
|
Rotary speed RPM
|
Turning right:27-901r/min
|
|
Turning left:48-219 r/min
|
|
Max. Torque
|
10500N.m
|
|
Power Unit
|
Engine Model
|
YN27
|
|
Rated power/speed
|
58kW/ 2400r/min
|
|
Mechanical winch capacity
|
5.5Ton
|
|
Drill pipe
|
Drill pipe diameter
|
Ø50/ Ø60 / Ø76/ Ø89mm
NQ/ HQ /PQ
|
|
Drill pipe length
|
3000mm
|
|
Mud pump
|
BW160/ BW200/ BW250/BW320/BW450
|
|
Crawler chassis
|
Walking speed
|
0-2 km/h
|
|
Climbing angle
|
Max. 25-30°
|
|
Dimension
|
Transport
|
5600*2100*2600mm
|
|
Working
|
3800*2400*7600mm
|
|
Weight with steel crawler
|
6500kg
|
|

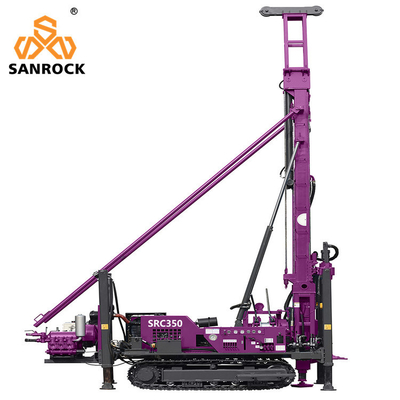

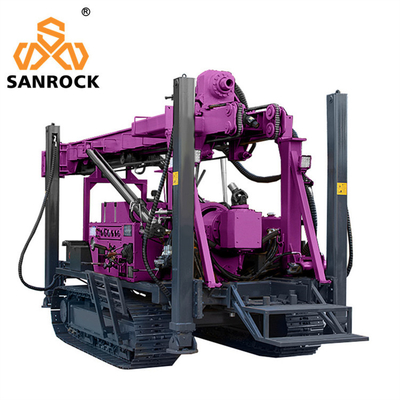

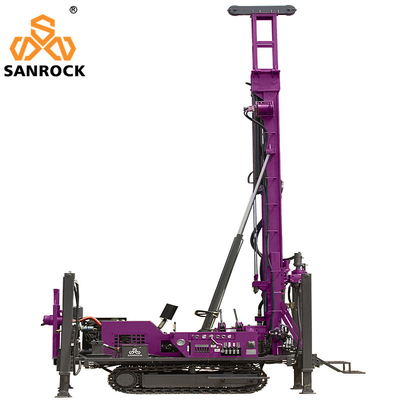

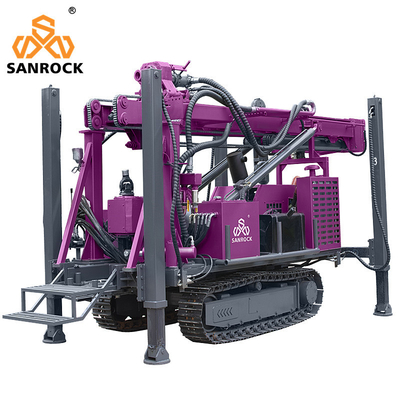

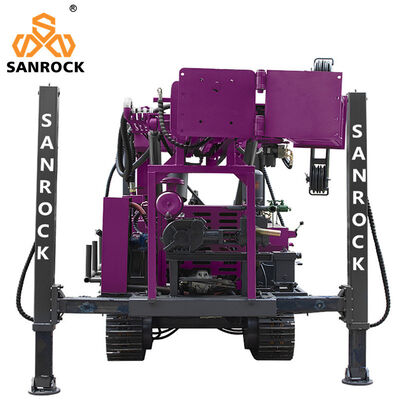

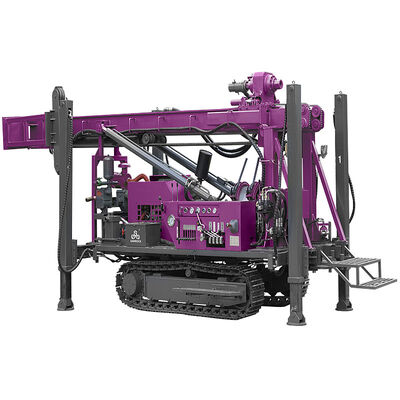

Rotary Core Drilling Rig Exploration 500m Hydraulic Portable Core Drilling Rig Machine
Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells,coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata. Mechanical top-drive drilling rig is a machine that mixes mud drilling rig and air drilling rig in one equipment. It adopts MT or AMT manual automatic transmission, 10 grade forward gears, and 2 grade reverse gears. Positive and negative switching is sensitive and convenient. Main drilling methods: conventional DTH hammer drilling, non-core PDC bit or tricone bit drilling.
