Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DTH Drilling Rig
Name: Mining Drilling Rig
Power Type: Diesel
Engine: Yuchai
Drilling Depth: 20m
Drilling Diameter: 70-100mm
Application: Mining Project,Blasthole Drilling
Volune Of Diesel Oil Tank: 70 L
Walking Speed: 2.5km/h
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Dimension(l*w*h): 4500*2150*2500mm
Weight: 3800KG
Usage: Ore
Drilling Hardness: F=6-20
Compensation Length: 900 Mm
Feed Stroke: 3550 Mm
Climbing Angles: 25degree
Method Of Feed: Cylinder+Chain
Customized Logo: Min. Order: 1
Highlight:

Surface Borehole DTH Drilling Rig

,

Hydraulic DTH Drilling Rig

,

Mining Crawler DTH Drilling Rig

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: IOS9001 CCC
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

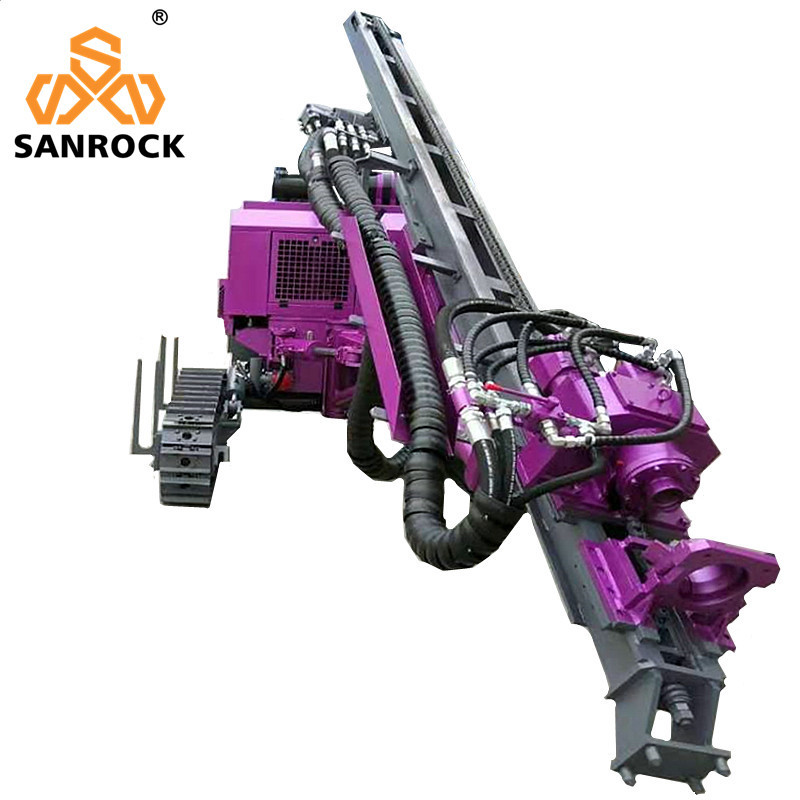

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 0

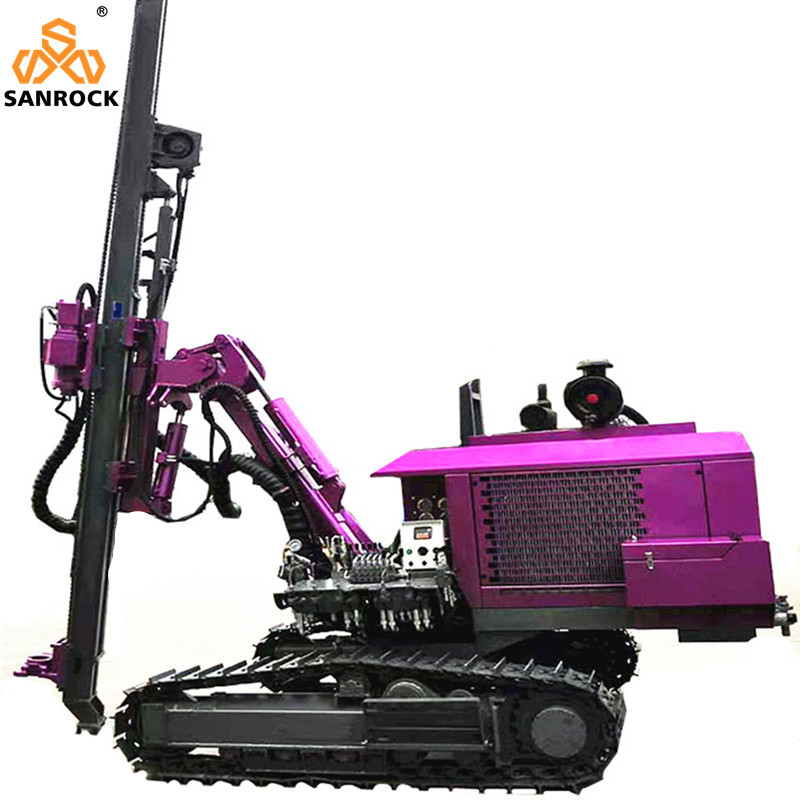

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 1

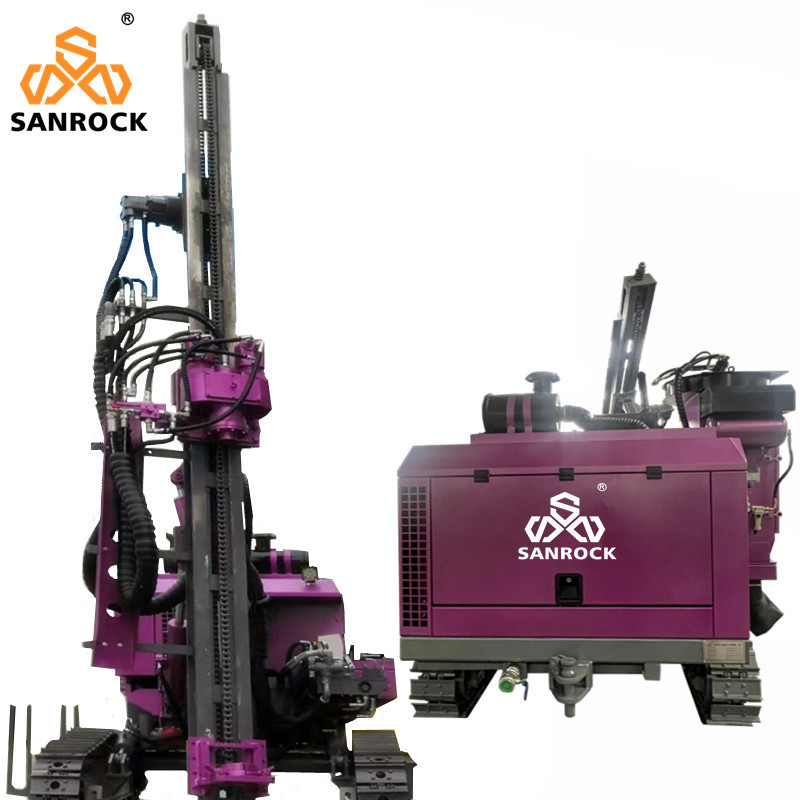

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 2

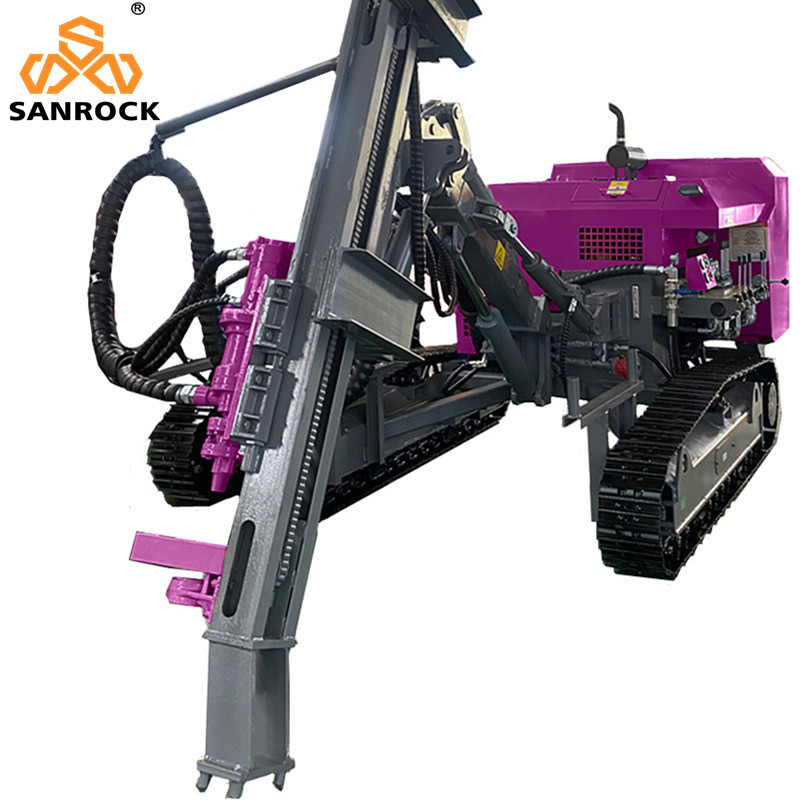

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 3

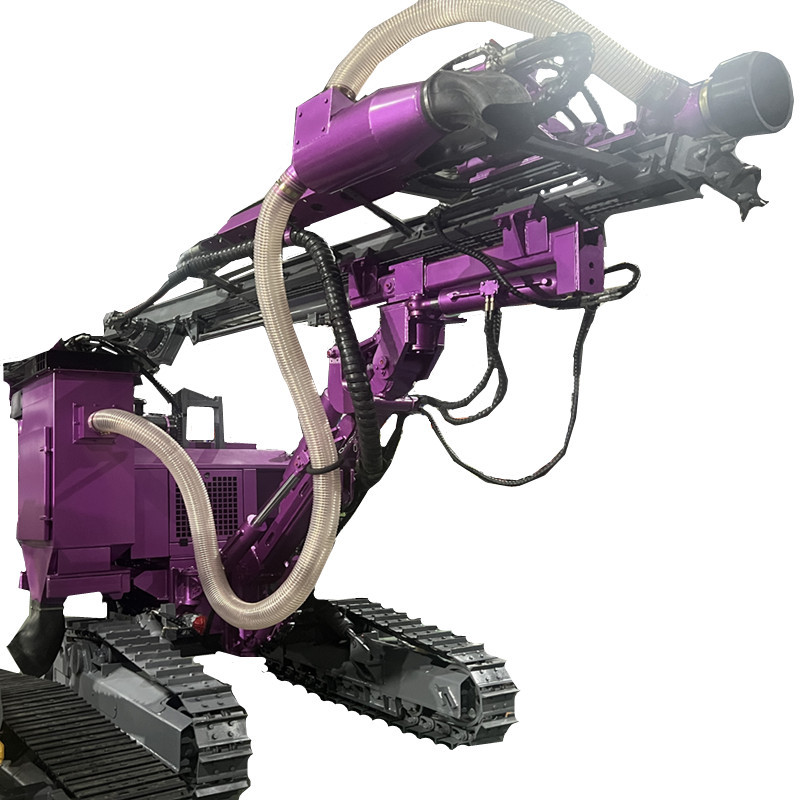

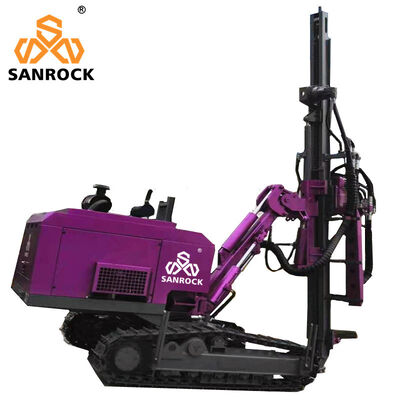

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 4Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 5
1. This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.
2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.
3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. 4.All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.
5.Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 6

Products Description
Product name: drilling rig
Brand Name:Sanrock
Name:Separated Crawler Drilling Rig
Method of Feed:Cylinder+Chain
Drilling Depth:30-50M
Drilling Diameter:90-200mm
Travelling Speed:3km/h
Climbing Angles:30°
DTH Hammer:4"/5"/ 6"
Transportation Dimensions:Customized
Drill rod diameter76mm
Drill rod length3.0m



Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 7



Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 8



Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 9

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 10Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 11

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 12Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 13

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 14

Company Profile

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 15

Certifications

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 16

Surface Borehole Drilling Rig Mining Crawler DTH Drilling Rig Hydraulic Drilling Machine 17



1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.



2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.



5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
