Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine

1Set/Sets per Month
MOQ
negotiable
Price
Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Rotary Drilling Machine
Name: Hydraulic Drilling Rig
Power(w): 110KW
Power Type: Diesel
Drilling Depth: 15m
Drilling Diameter: 1400mm
Rotate Speed: 17-35r/min
Working Pressure: 32Mpa
Overall Drilling Weight: 22T
Maximum Stroke: 3000mm
Max.pull-down Piston Push: 80KN
Max.pull-down Piston Pull: 100KN
Min.ground Claerance: 400mm
Crawler Board Width: 450mm
Traveling Speed: 2.5Km/h
Application: Pile Foundation,Construction Works,foundation Engineering
Usage: Ore,Piling Foundation
Type: Rotary Drilling Rig
Dimension(l*w*h): 7000*2300*10700mm
Weight: 22000KG
Highlight:

Construction Works Rotary Pile Drilling Rig

,

Crawler Rotary Pile Drilling Rig

,

Hydraulic Borehole Drilling Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRP515A
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

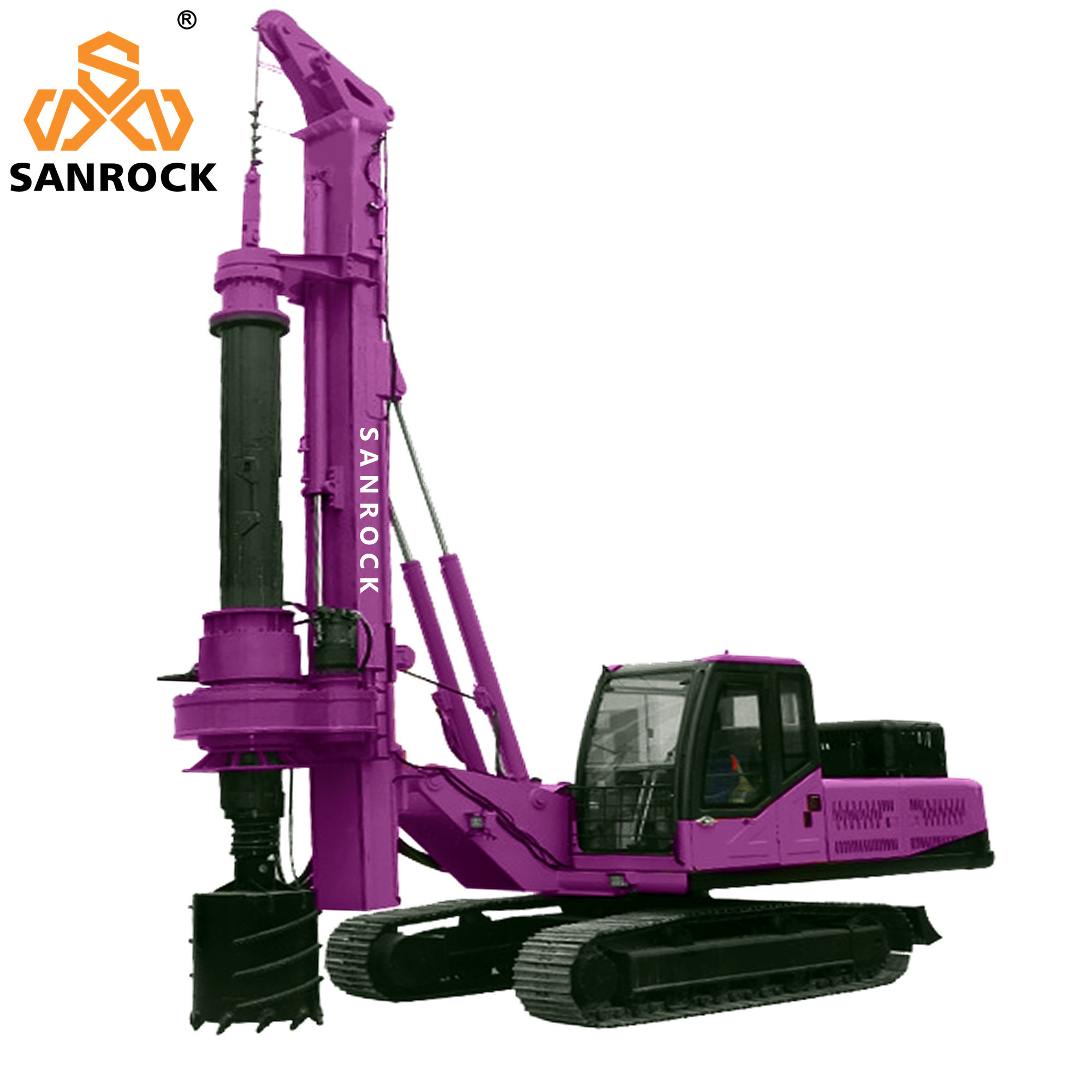

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 0

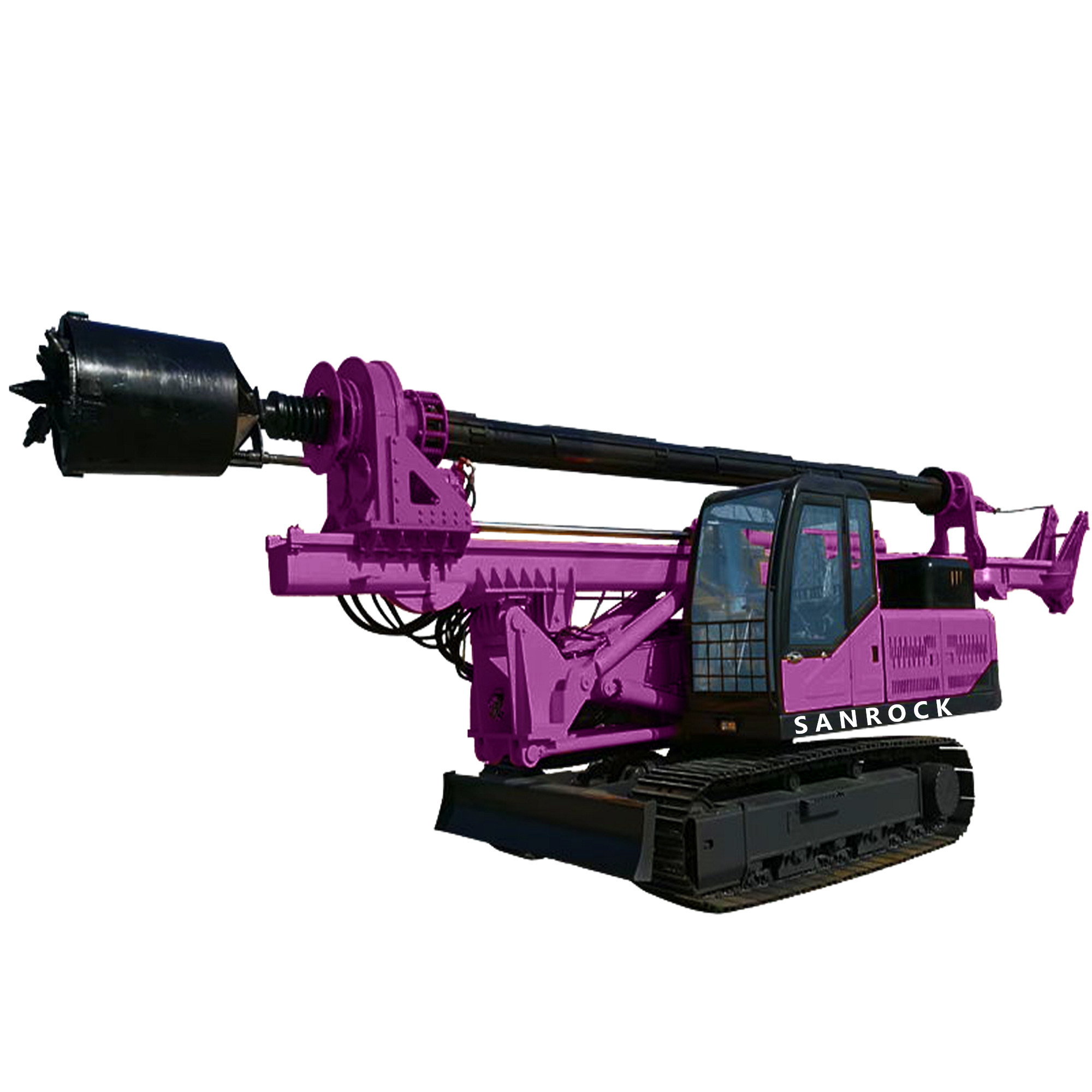

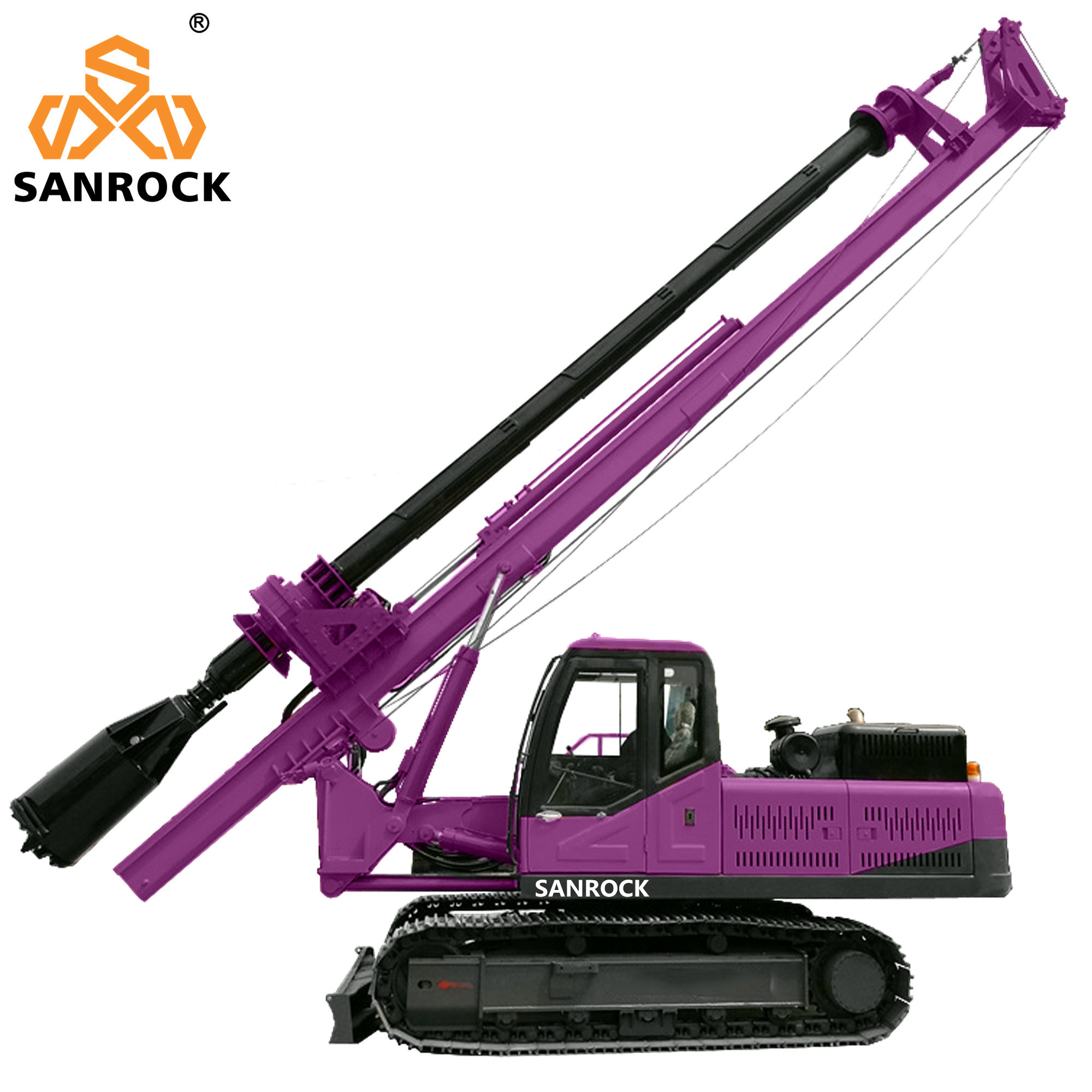

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 1Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 2

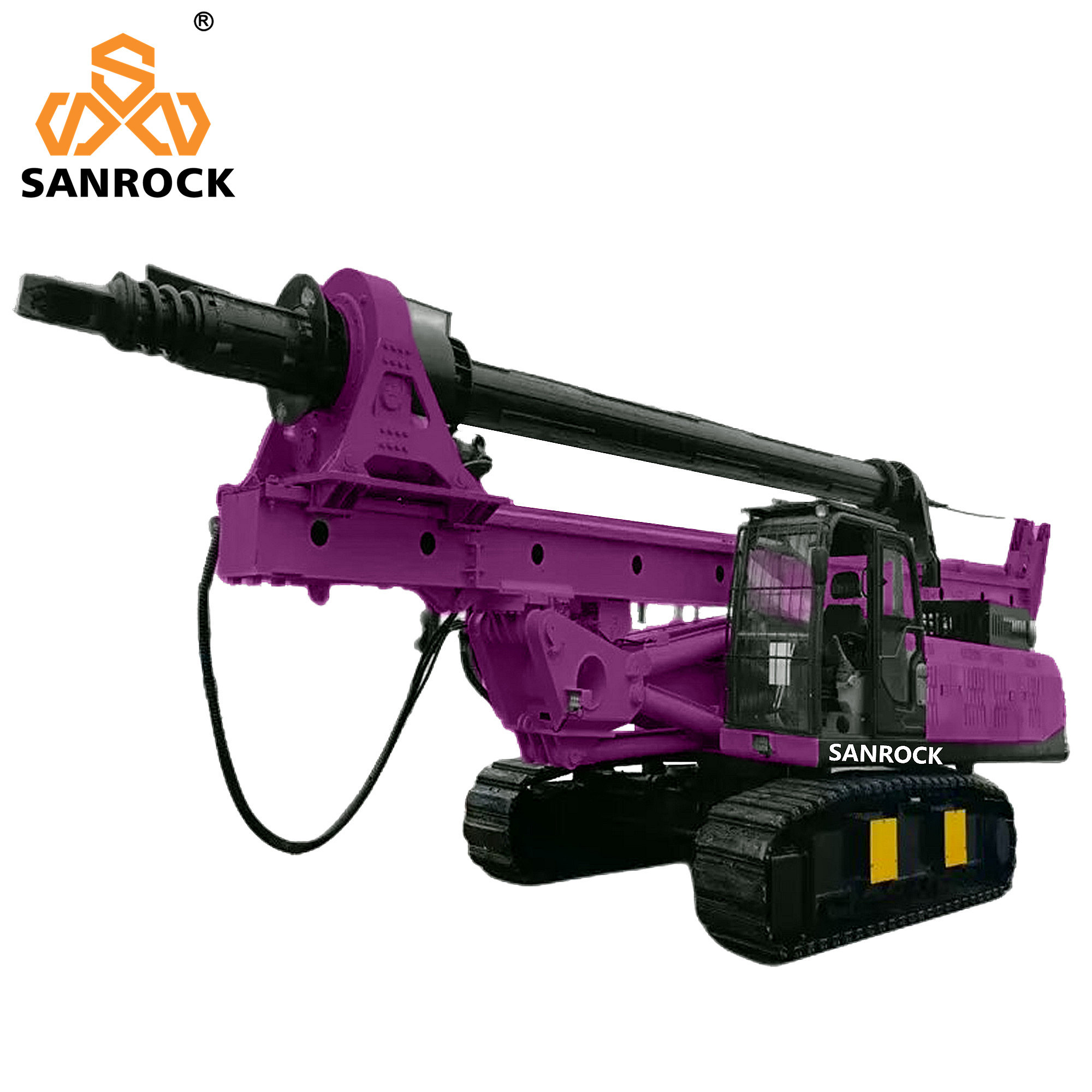

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 3

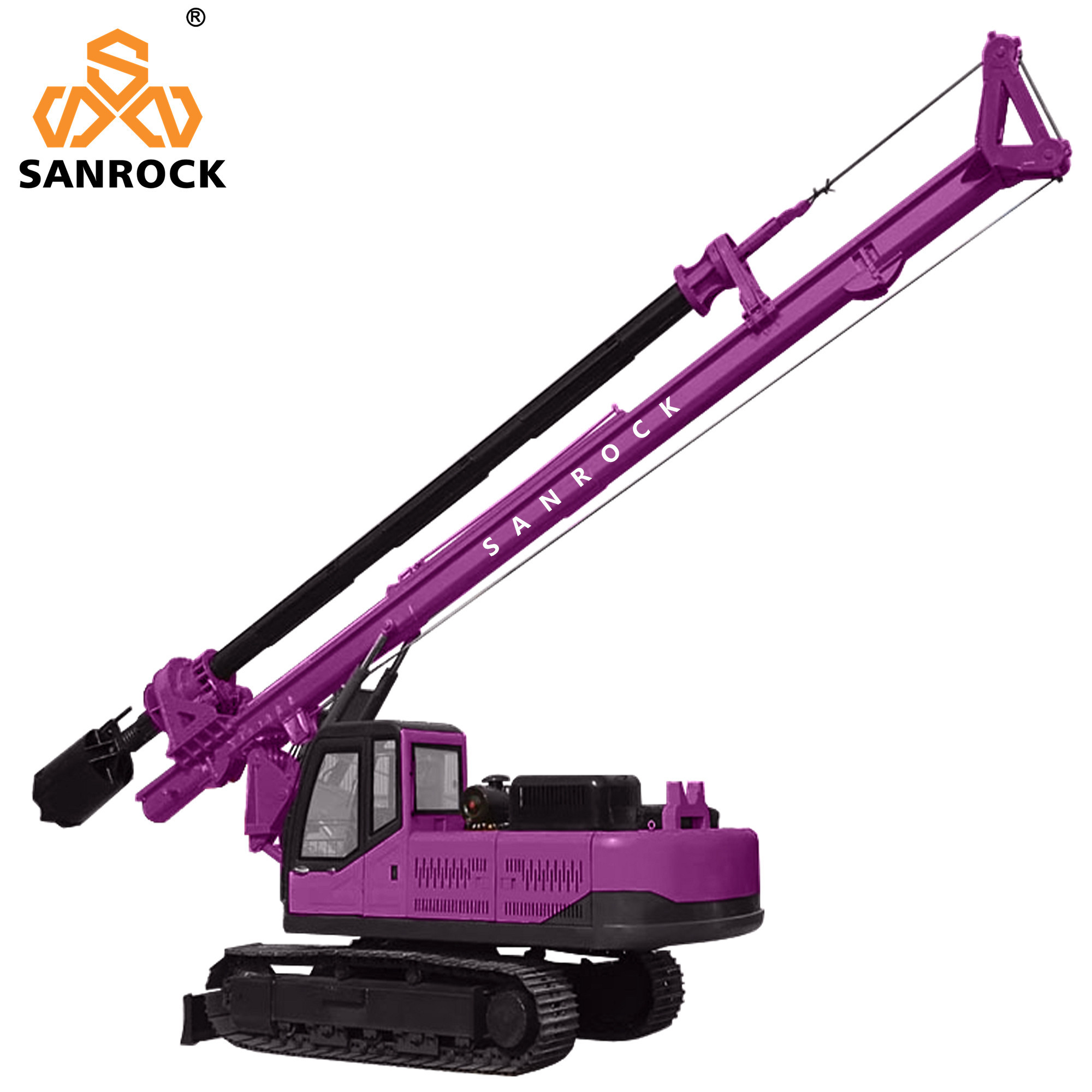

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 4

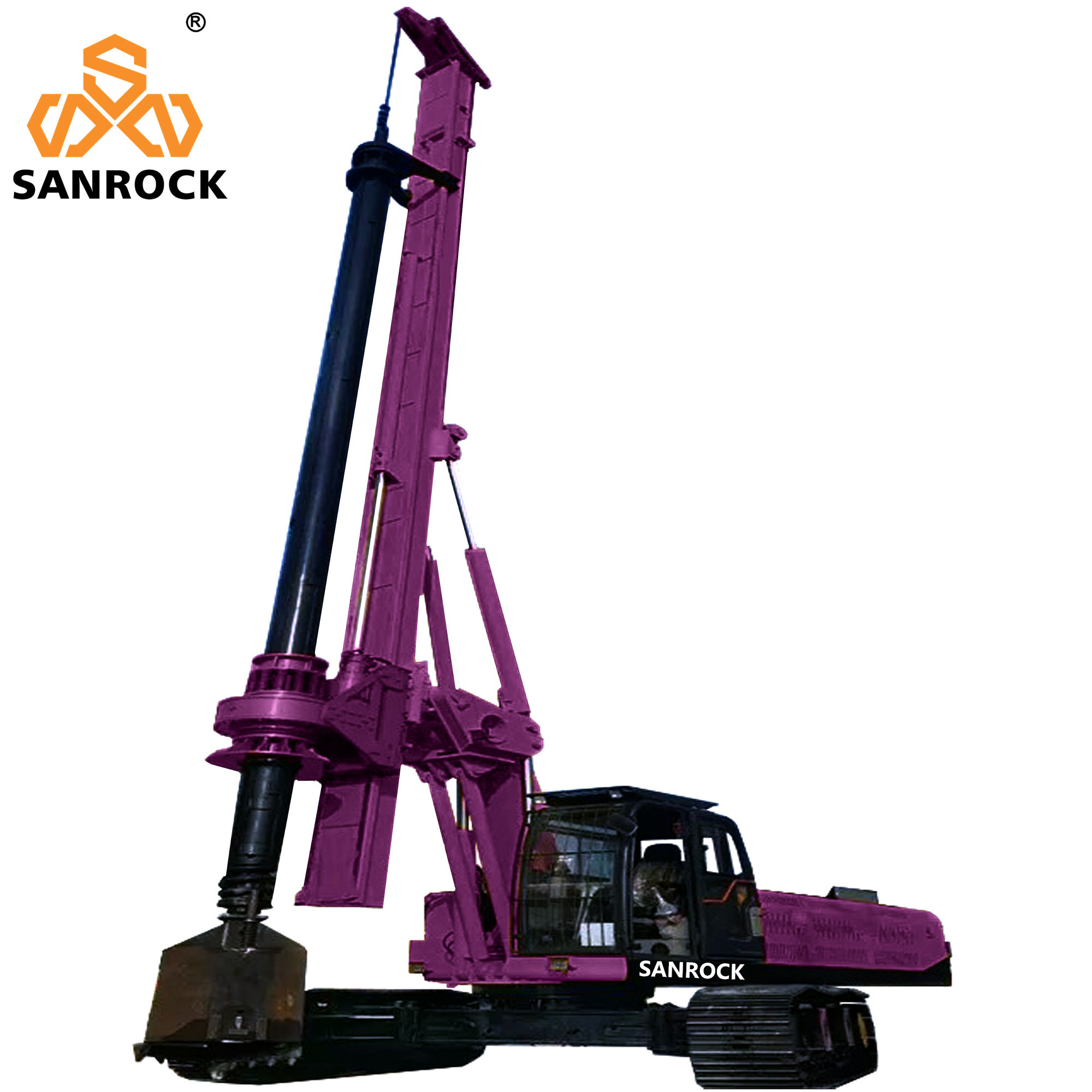

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 5

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 6



Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 7

The structure is simple and delicate, the durability is good, the stability of the whole machine is good, the cost is saved and the maintenance is more convenient.
The power head is reasonable in design, reliable in lubrication, strong in power, cost-saving, not easy to damage, and easy to maintain.
Main hoisting: the use of advanced hydraulic motors, sensitive response, can be used to decentralize freely, greatly improving the construction efficiency.



Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 8

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 9

Products Description

Produce Name: Rotary Drilling Rig
SRP515A Main Technical Parameters
Engine
Model
6105ZIY4/YC
Rated power
KW
110
Rotary Drive
Max.output torque
KN.m
100
Rotary speed
r/min
17-35
Max.Drilling Diameter
mm
1400
Max.Drilling Depth
m
15
Main Winch
Rated Tension
KN
80
Max.single-rope speed
m/min
60
Auxiliary Winch
Rated Tension
KN
30
Max.single-rope speed
m/min
60
Lateral/forward/backward inclination of mast
°
±5/5/15
Pull-Down Cylinder
Max.pull-down piston push
KN
80
Max.pull-down piston pull
KN
100
Maximum stroke
mm
3000
Chassis
Max.traveling speed
km/h
2.5
Min.ground claerance
mm
400
Crawler board width
mm
450
System Working Pressure

MPa
32
Overall Drilling Weight

t
22
Dimension
Working Condition
mm
7000*2300*10700
Transportation Condition
mm
8700*2300*3400

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 10

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 11

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 12

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 13

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 14

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 15

Company Profile

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 16

Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 17



Crawler Rotary Pile Drilling Rig Construction Works Hydraulic Borehole Drilling Machine 18

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.




3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.




4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
