Hydraulic Rotary Drilling Rig Machine Construction Engineering

1Set/Sets per Month
MOQ
negotiable
Price
Hydraulic Rotary Drilling Rig Machine Construction Engineering
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Rotary Drilling Rig Machine
Type: Rotary Drilling Rig
Power(w): 153KW
Drilling Diameter: 1400mm
Drilling Depth: 20m
Rotate Speed: 17-35r/min
Max.pull-down Piston Push: 100KN
Max.pull-down Piston Pull: 120KN
Working Pressure: 32Mpa
Maximum Stroke: 3000mm
Walking Speed: 2.5kw/h
Application: Pile Foundation,Blasthole Drilling,Construction Works,foundation Engineering
Name: Hydraulic Drilling Rig
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Dimension(l*w*h): 7150*2600*11700mm
Warranty: 24000KG
Highlight:

Hydraulic Rotary Drilling Rig Machine

,

Construction Engineering Rotary Drilling Rig

,

Construction Engineering Rotary Drilling Rig Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SRP520
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

The structure is simple and delicate, the durability is good, the stability of the whole machine is good, the cost is saved and the maintenance is more convenient.
Infinite rotation, double-lift winch, main winch to ensure that the rated lifting weight, is more than twice the year-on-year increase.
Match the reasonable hydraulic system, the oil temperature is normal in summer.

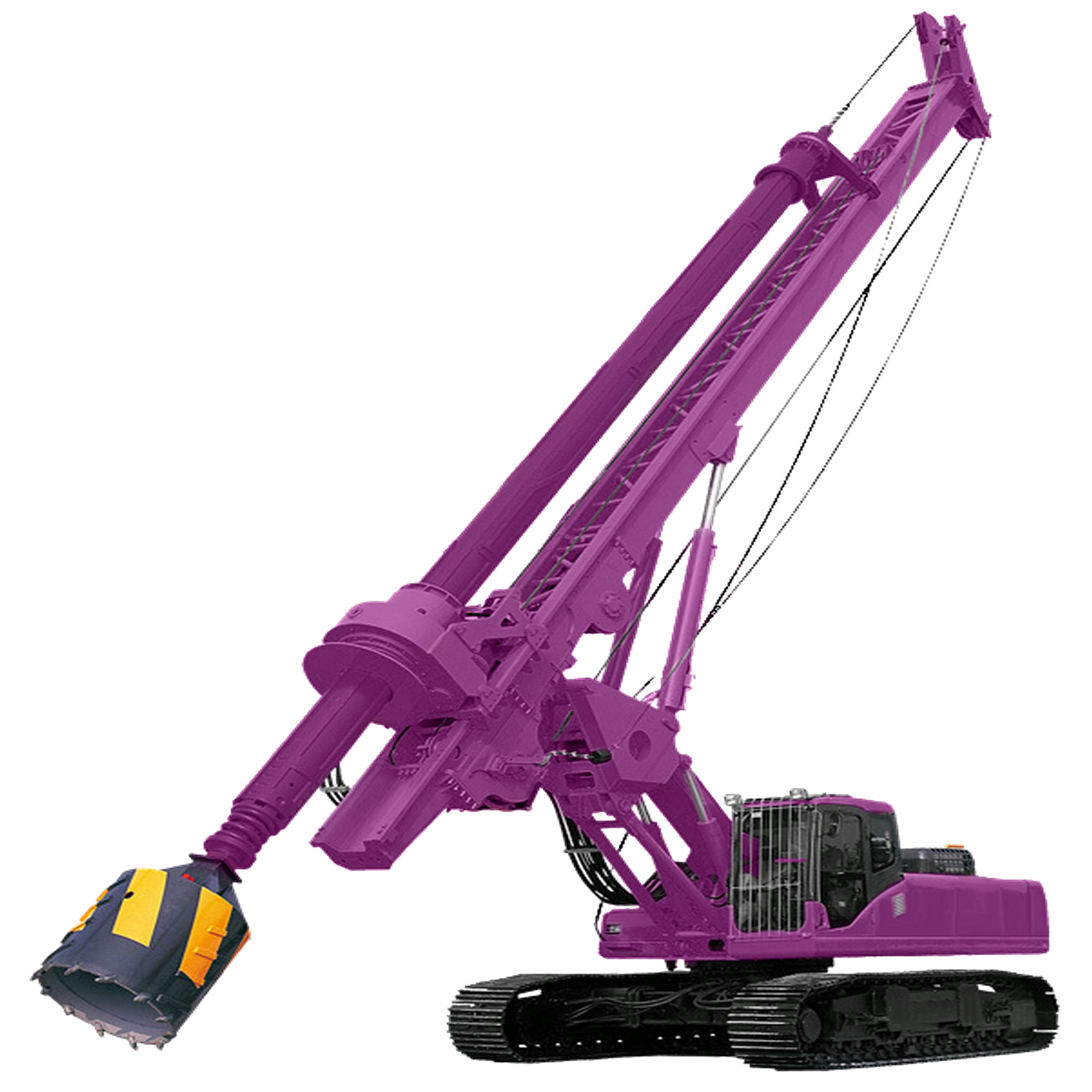

Hydraulic Rotary Drilling Rig Machine Construction Engineering 0Hydraulic Rotary Drilling Rig Machine Construction Engineering 1

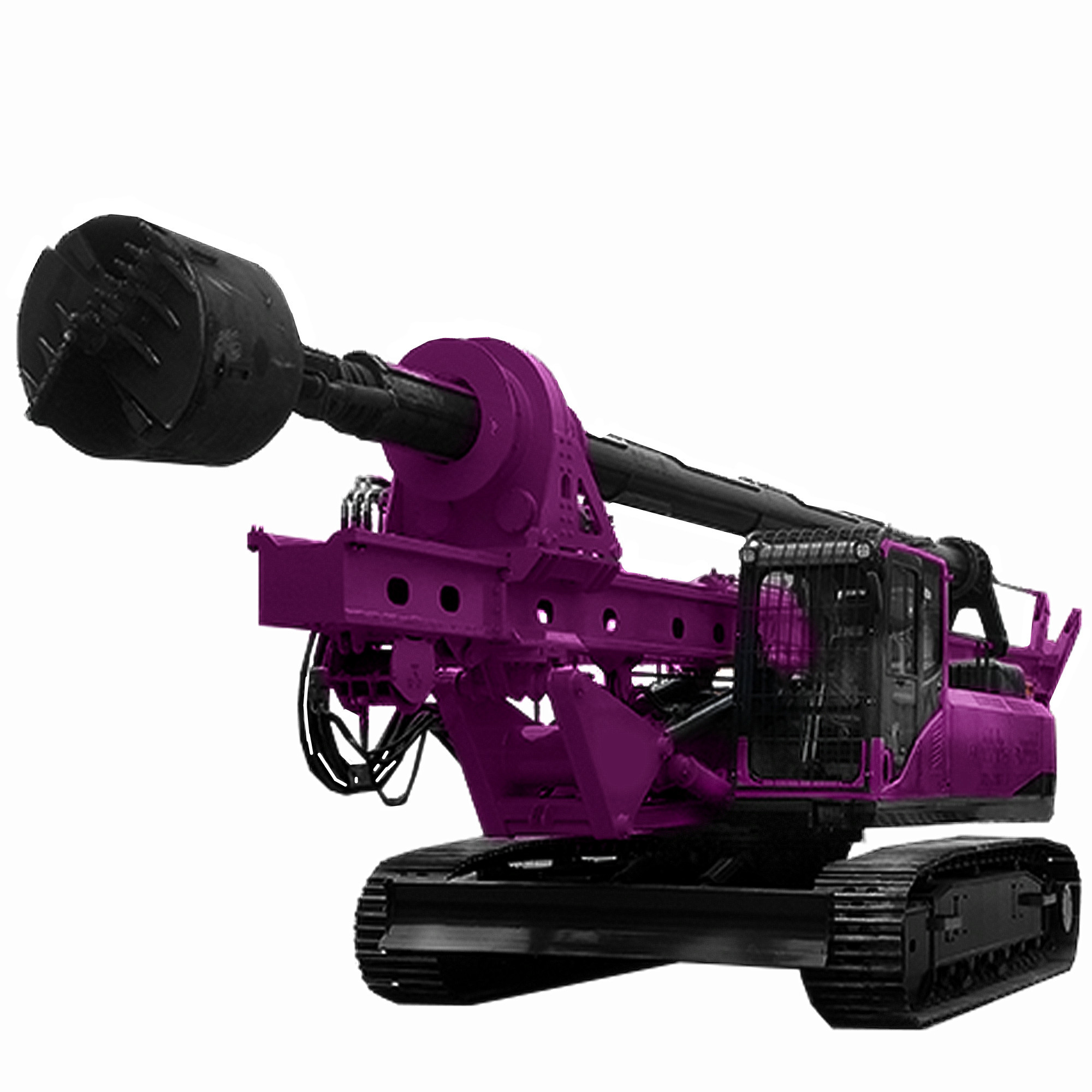

Hydraulic Rotary Drilling Rig Machine Construction Engineering 2

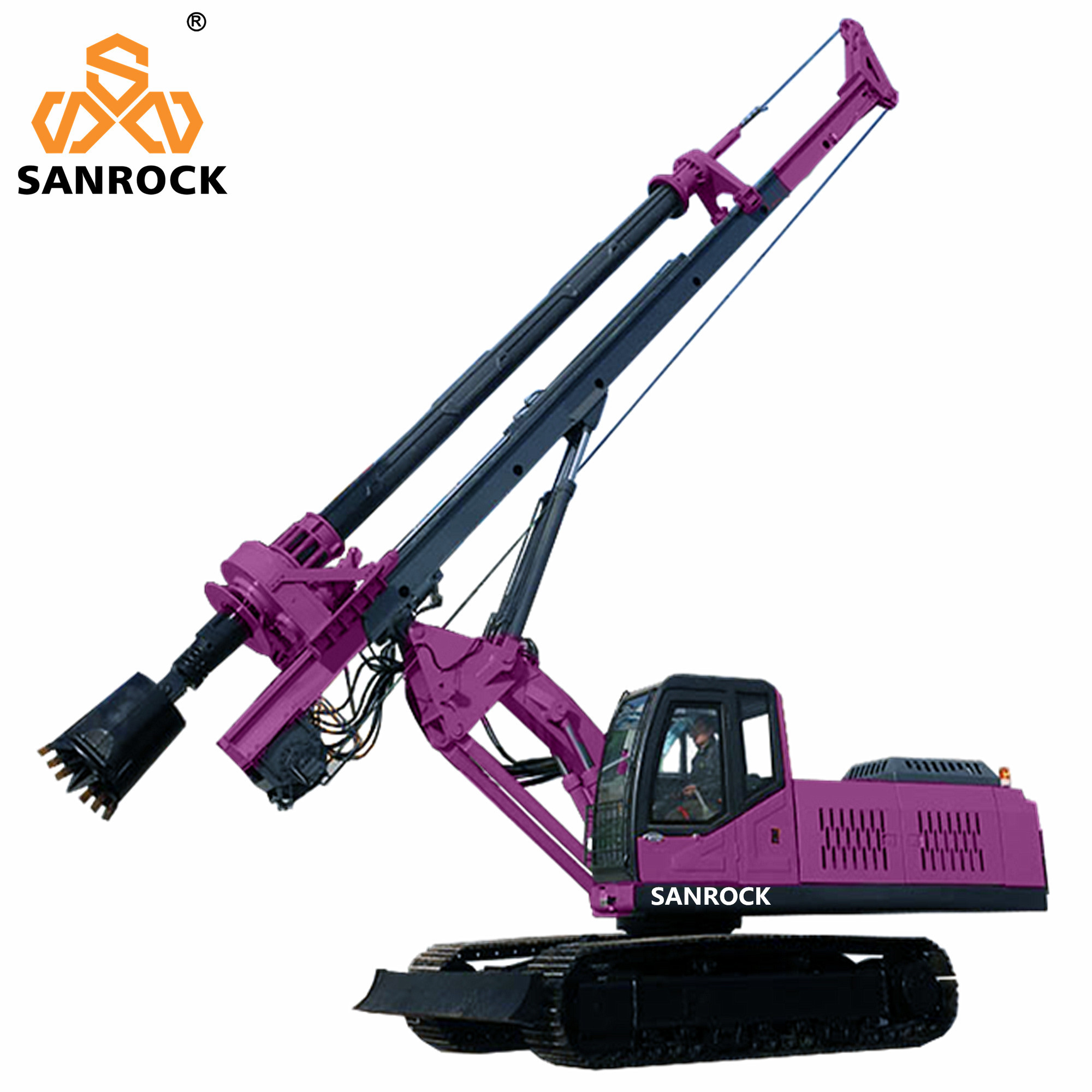

Hydraulic Rotary Drilling Rig Machine Construction Engineering 3

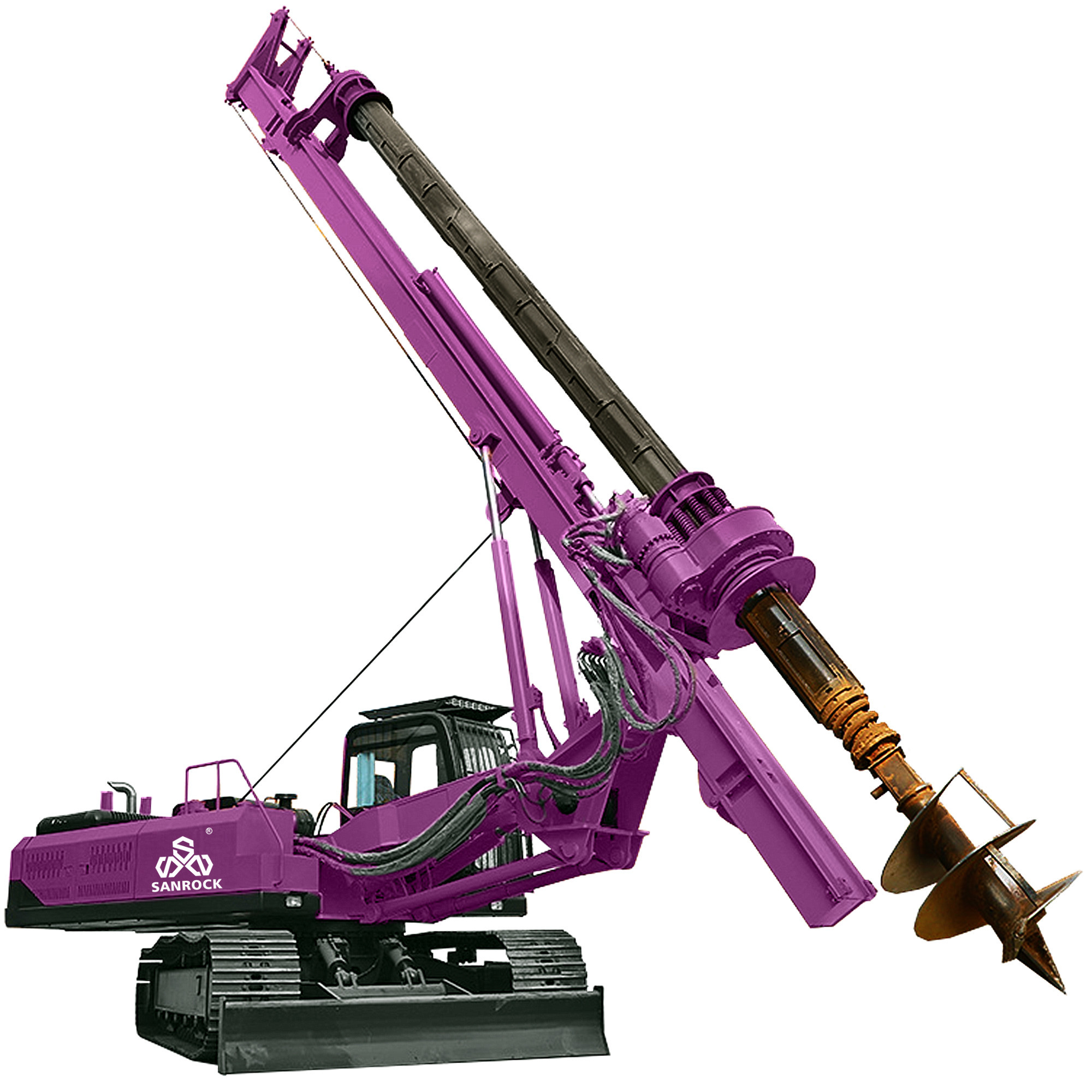

Hydraulic Rotary Drilling Rig Machine Construction Engineering 4

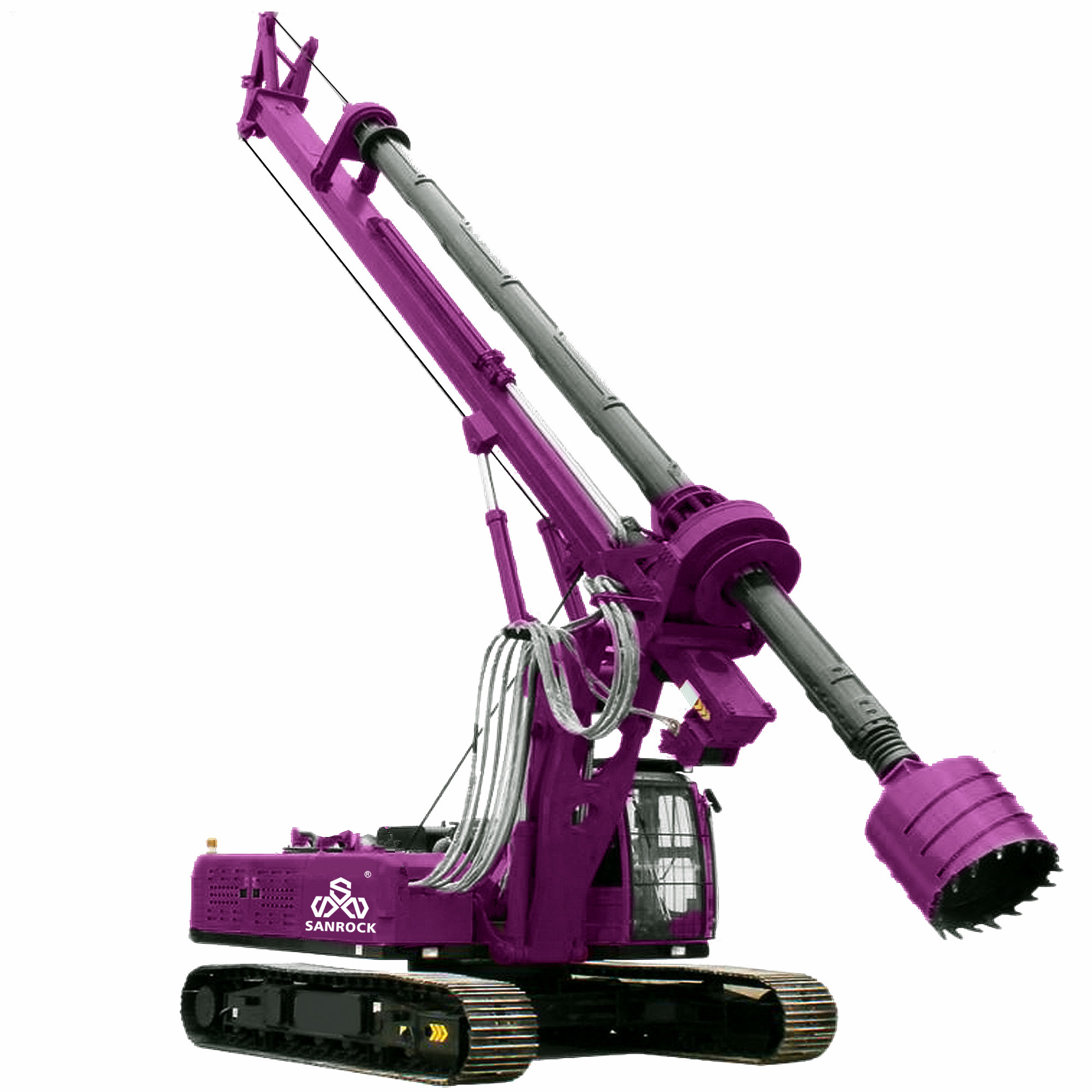

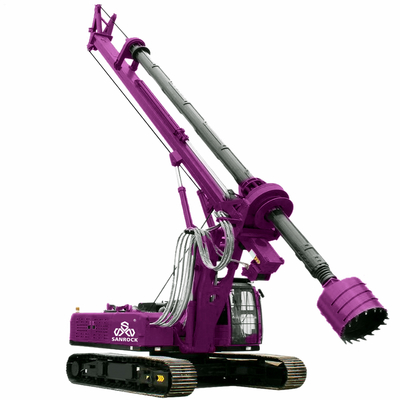

Hydraulic Rotary Drilling Rig Machine Construction Engineering 5Hydraulic Rotary Drilling Rig Machine Construction Engineering 6

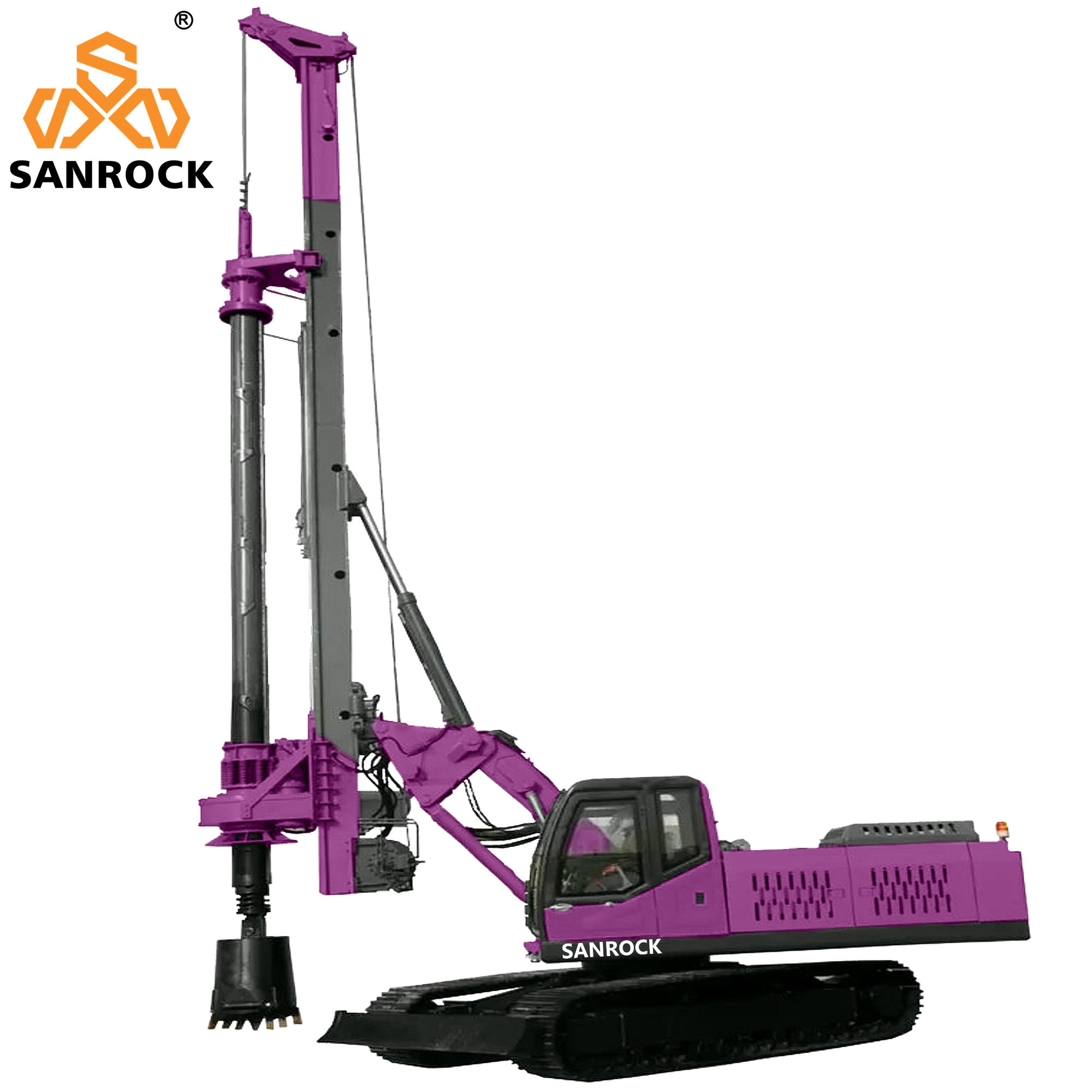

Hydraulic Rotary Drilling Rig Machine Construction Engineering 7

Products Description

Produce Name: Rotary Drilling Rig
SRP520 Main Technical Parameters

Engine
Model
Cummins/Weichai
Rated power
KW
153
Rotary Drive
Max.output torque
KN.m
100
Rotary speed
r/min
17-35
Max.Drilling Diameter
mm
1400
Max.Drilling Depth
m
20
Main Winch
Rated Tension
KN
80
Max.single-rope speed
m/min
60
Auxiliary Winch
Rated Tension
KN
30
Max.single-rope speed
m/min
60
Lateral/forward/backward inclination of mast
°
±5/5/15
Pull-Down Cylinder
Max.pull-down piston push
KN
100
Max.pull-down piston pull
KN
120
Maximum stroke
mm
3000
Chassis
Max.traveling speed
km/h
2.5
Min.ground claerance
mm
360
Crawler board width
mm
600
System Working Pressure

MPa
32
Overall Drilling Weight

t
24
Dimension
Working Condition
mm
7150*2600*11700
Transportation Condition
mm
9700*2600*3450

Hydraulic Rotary Drilling Rig Machine Construction Engineering 8Hydraulic Rotary Drilling Rig Machine Construction Engineering 9Hydraulic Rotary Drilling Rig Machine Construction Engineering 10Hydraulic Rotary Drilling Rig Machine Construction Engineering 11

Hydraulic Rotary Drilling Rig Machine Construction Engineering 12

Hydraulic Rotary Drilling Rig Machine Construction Engineering 13

Company Profile

Hydraulic Rotary Drilling Rig Machine Construction Engineering 14

Hydraulic Rotary Drilling Rig Machine Construction Engineering 15

Hydraulic Rotary Drilling Rig Machine Construction Engineering 16

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.


2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.




3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.




4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
