Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor

1Set/Sets per Month
MOQ
negotiable
Price

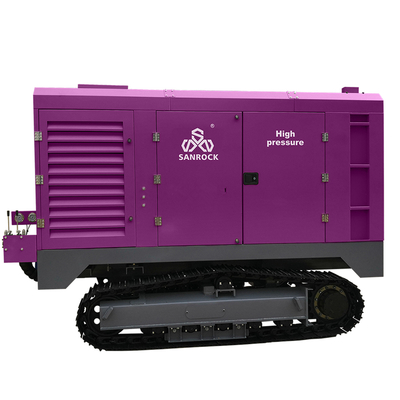

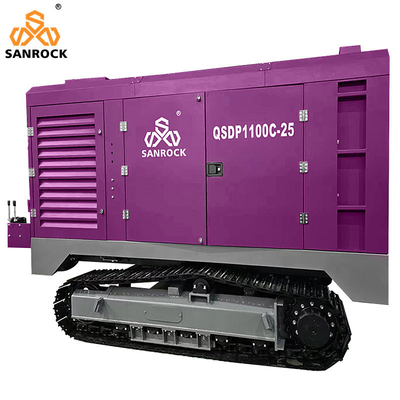

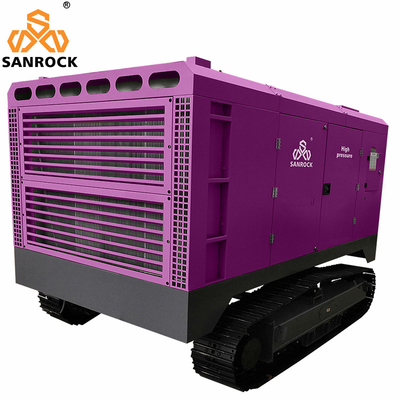

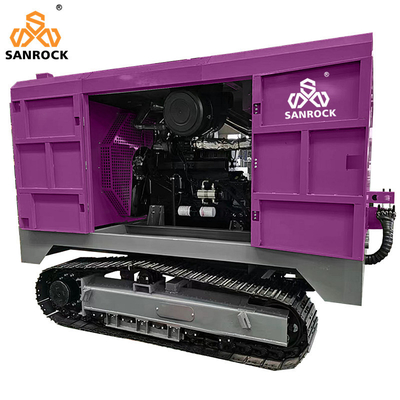

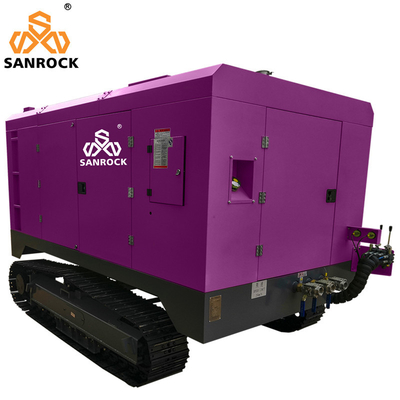

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Air Compressor Machine
Type: Screw Air Compressor
Name: Diesel Screw Air Compressor
Engine Brand: Cummins
Power Source: Diesel
Motor Power: 264kw
Configuration: Portable
Cooling Method: Air Or Water Cooled
F.A.D: 31m3/min
Working Pressure: 25bar
Fuel Tank Capacity: 410L
Oil-gas Tank Capacit: 150 L
Application: Water Well Drilling,mining Blasting,General Industry,Air
Outle Valve: G1"/G2"
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Air End: Two Stage Compression
Lubrication Style: Lubricated
Voltage: 380V
Warranty: 1 Year
Weight: 4800 KG
Dimension(l*w*h): 4430*2000*2950mm
Highlight:

Mining Screw Air Compressor

,

Diesel Screw Air Compressor

,

Steel Crawler Screw Air Compressor

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: QSDP1100C-25
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 12-20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description



Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 0Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 1

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 2



Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 3

Feature:

1. Full series product optimized for stronger frame and better towing protection and safety; stronger roof loading capabilities to meet customer load carry needs with rubber protection strips.

2. All pressure pipes are connected with steel tubes, it has excellent sealing and protect rubber from prevent aging, abrasion resistance and has attractive appearance.

3. With patent designed safety air filter unit and stainless steel air inlet pipes for guaranteed dust filter ability and better protection against dirty air due to rubber horse damage.

4. All new designed cooler with independent modular unit and secured by structural component with cushion pad without any pressure points, effectively eliminating cooler damage by shroud deformation; independent damage unit placement made easy without removing the cooler assembly.

5. New designed protected cooler for higher efficiency and better safety protection. Full body sound absorbent cotton and rear car silencer designed to make operate noise reduce 40% less than normal products.

6.Large stand-alone capacity, no clearance volume, reasonable structure and ideal force balance, long life of the host, easy maintenance and few wearing parts.

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 4

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 5Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 6Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 7Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 8Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 9



Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 10

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor



Products Description

Brand Name:Sanrock
Product name: screw air compressor
Oil-gas tank capacit:150 L
Fuel tank capacity :410L
Outle Valve:G1"/G2"
Air end:Two stage compression
Gas Type:Air
Motor power:264kw
Engine brand:Cummins
Working pressure:25bar
F.A.D /CFM:31m3/min /1100
Application:water well drilling,mining blasting,etc
Demensions (L*W*H):4430*2000*2950mm
Weight:4800kg
Certification:CE

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 11

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 12

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 13



Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 14Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 15Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 16Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 17

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 18

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 19

Company Profile

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 20

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 21

Steel Crawler Air Compressor Machine Mining Screw Air Compressor Diesel Air Compressor 22

1.What can you buy from us?

DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?

A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
