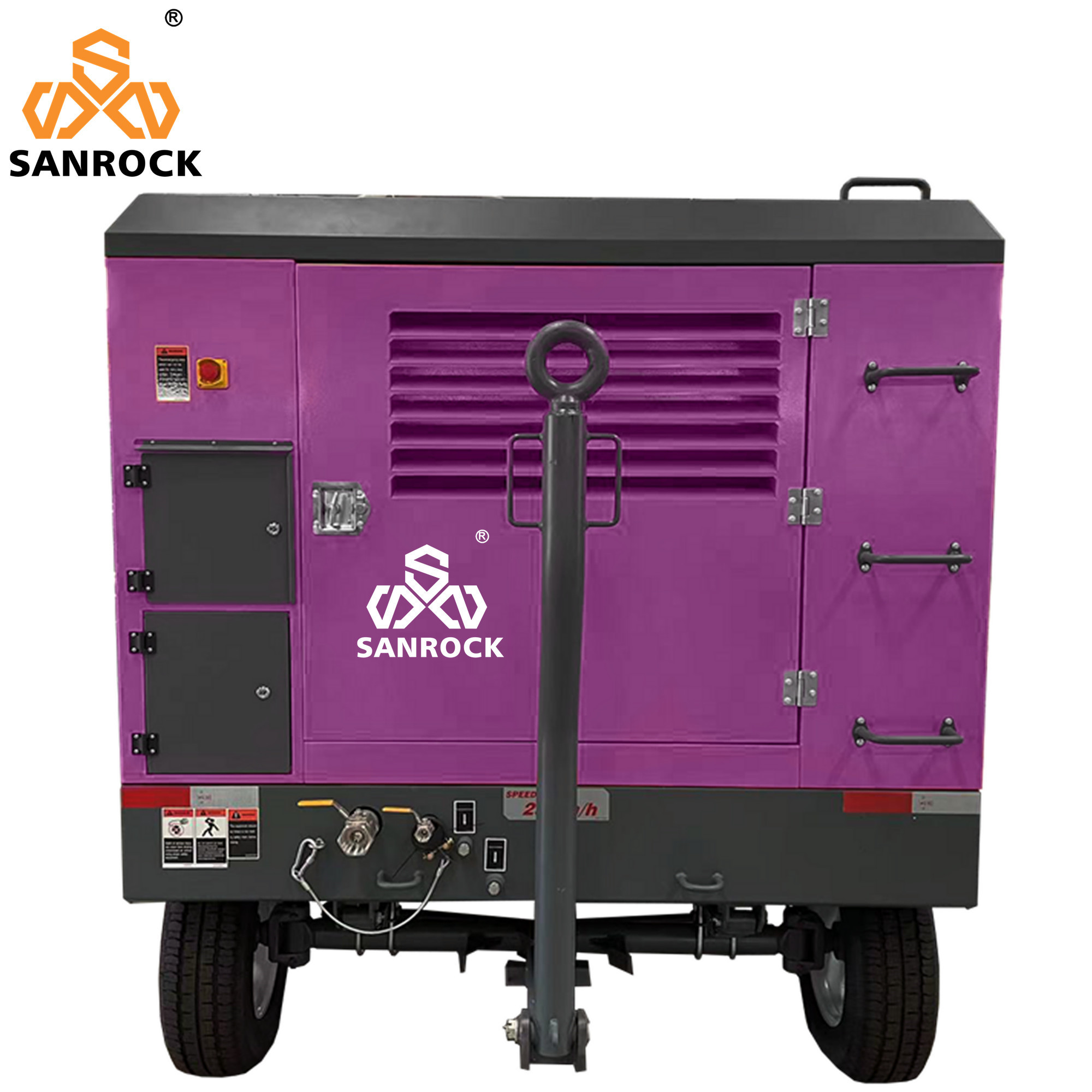

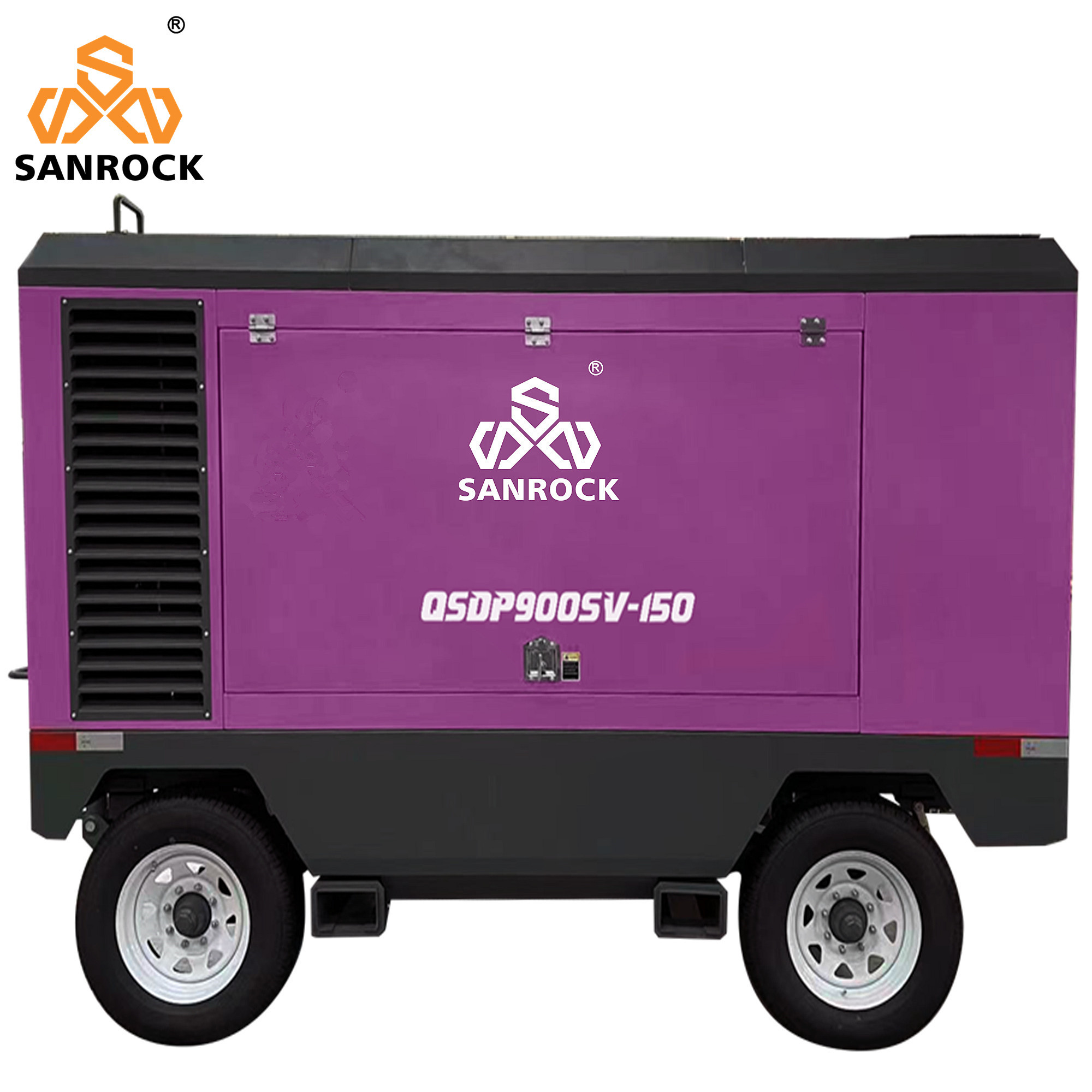

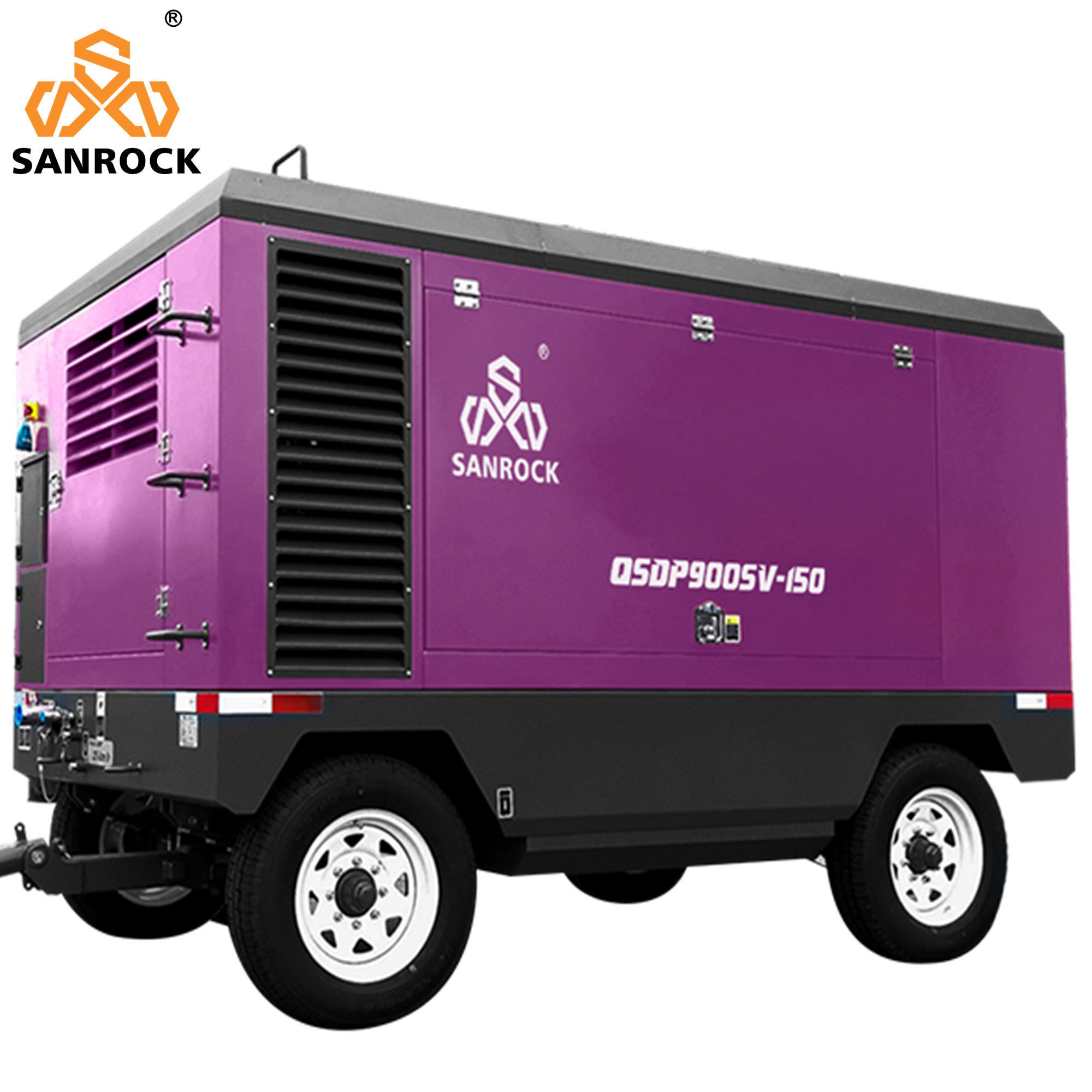

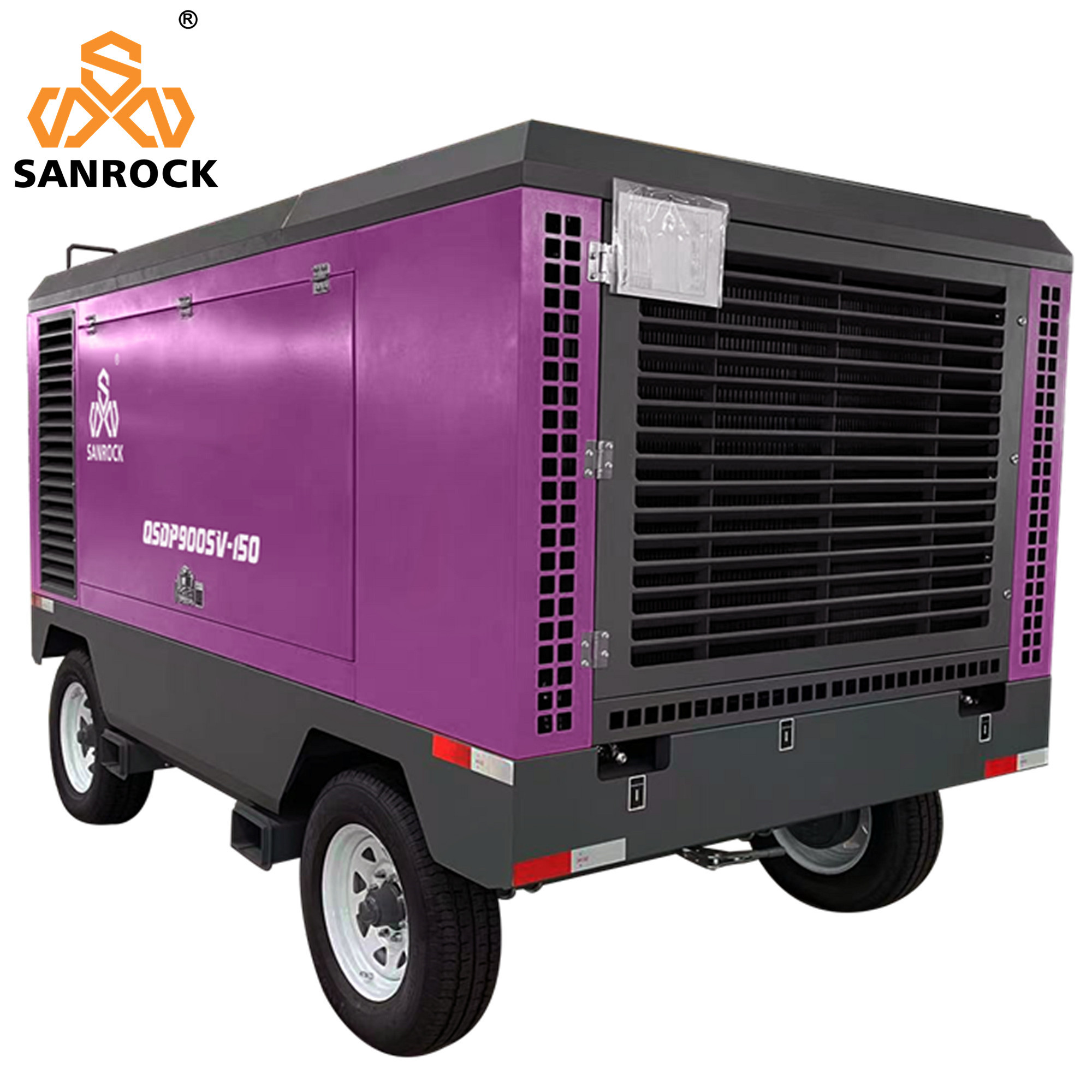

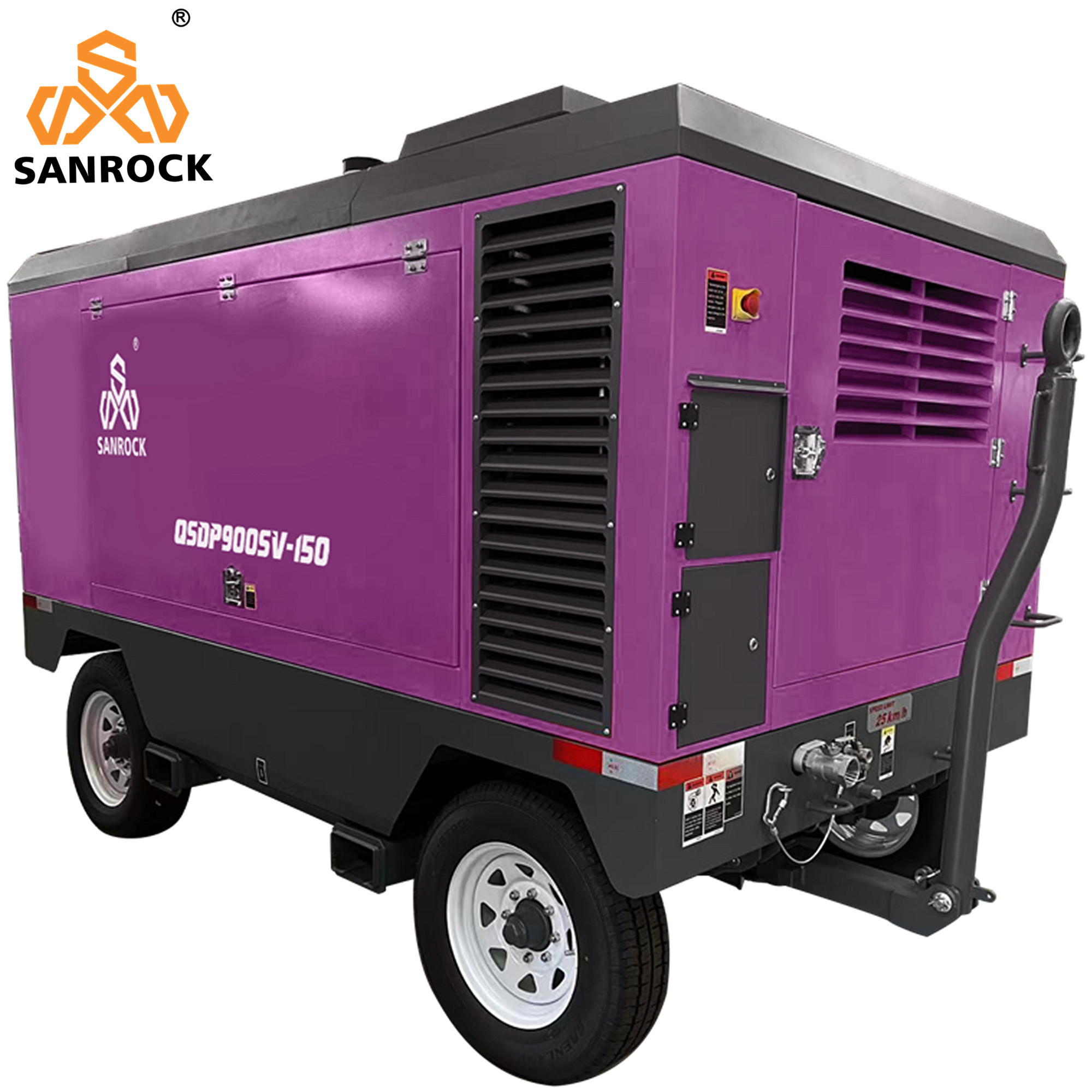

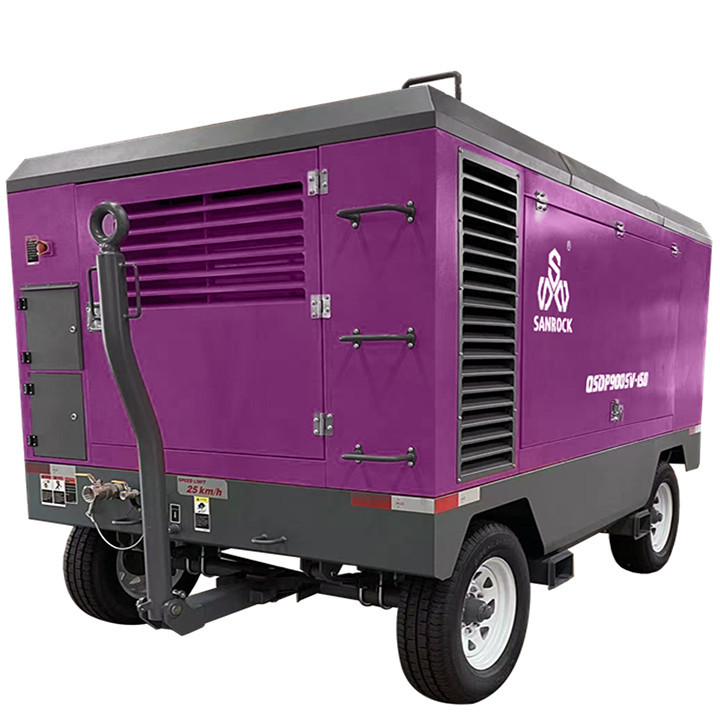

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor

1Set/Sets per Month
MOQ
negotiable
Price
240kw Diesel Air Compressor Machine Rotary Screw Air Compressor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Screw Air Compressor,Mining Air Compressor
Name: Air Compressor Machine
Cooling Method: Air Or Water Cooled
Motor Power: 240KW
ENGINE: Cummins
Rated Operating Pressure: 10.3(150)bar(psi)
Operating Pressure Range: 3.8-10.3(55-150)bar(psi)
F.A.D: 25.5m3/min
Lubricant Capacity: 85(22.5)L(gal)
Rated Speed: 1850rpm
Maximum Working Altitude: 3048m
Fuel Tank Capacity: 700L
Application: Water Well Drilling,mining Blasting,General Industry,Air
Feature: High Drilling Efficiency,Competitive Price
Configuration: Portable
Cooling: Air Or Water Cooled
Dime3200*1800*2100mmnsion(l*w*h): 3700x1900x2400mmmm
Weight: 4500 KG
Warranty: 1 Year
Core Components: PLC, Pressure Vessel, Engine, Gear, Motor, Bearing, Gearbox
Highlight:

240kw Screw Air Compressor

,

Diesel Screw Air Compressor

,

Rotary Screw Air Compressor

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: QSDP900SV-150
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Feature:
1.Cummins Engine.
2.Energy Efficient Twin Screw Rotor Air Ends for Stable and Continuous Air Supply.
3.Highly Flexible Coupling Between Rotors and Engine for Improved Reliability.
4.Air End Manufactured by Sullivan-Palatek Comes With an Exclusive Three Three-year Warranty.
5.Automatic 0% to 100% Capacity Control.
6.Ambient Opretion Tempreture Range:-4°to+122°F(-20°to+50 ℃).
7.Air Oil Separator With Wave Shaping Technology Ensures Highest Quality Discharge.
8.No High Wear Parts, Reducing Cost of Maintenance.
9.Energy Efficient Inlet Valve Mechanism.
10.Sound Deadening Material Ensures Quiet Operation.
11.Large Service Doors for Ease of Maintenance and Repair.

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 0240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 1

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 2240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 3





This series primarily used with construction and mining ,bolting rig, various hand held drill machines, drifters, blasting equipment and various air source requirement.

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 4

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 5



240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 6

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 7



240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 8

Products Description

Product name
air compressor
Compressor Model
QSDP900SV-150
Rated Delivery
CFM(m3/min)
900(25.5)
Rated Operating Pressure
bar(psi)
10.3(150)
Operating Pressure Range
bar(psi)
3.8-10.3(55-150)
Stages of Compression

1
Dimensions
mm
3700x1900x2400
Estimated Weight, Serviced
kg
4500
Noise Level
db(A)
80±3
Max. WorkingAngle
º
15
Lubricant Capacity
L(gal)
85(22.5)
Air Discharge Outlet
inch
1-NPT2,1-NPT3/4
Maximum working altitude
m
3048
ENGINE

Cummins (DCEC)

Model

6LTAA8.9-C325
Rated Power
kW(Hp)
240(325)
Rated Speed (Load/ldle)
rpm
1850/1300
Displacement
L(in3)
8.9(543)
Fuel Tank Capacity
L(gal)
700(185)
OperatingVoltage for Electrical System
DC-V
24
Rated Capactiy of Battery
A.H
165x2

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 9

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 10

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 11

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 12

240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 13



240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 14240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 15





240kw Diesel Air Compressor Machine Rotary Screw Air Compressor 16
