Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor

1Set/Sets per Month
MOQ
negotiable
Price
Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Air Compressor Machine
Type: Screw
Engine Brand: Yanmar / Yuchai
Power: 35.9KW/36.8KW
Pressure: 8bar
Lubricating Oil Capacity: 10L
Air Consumption: 5m³/min
Max. Working Speed/ Idle Speed (rpm): 2100/1300 Rpm /2300/1300rpm
Application: Water Well Drilling,mining Blasting,General Industry,Air
Wheel Specifications * Quantity: 2 Wheels
Dimension(l*w*h): 2700*1350*1300mm
Weight: 750kg
Configuration: Portable
Warranty: 1 Year
Condition: New
Highlight:

Mining Diesel Screw Air Compressor

,

Industrial Rotary Screw Air Compressor

,

Portable Industrial Screw Air Compressor

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: QSDP180LG-8Y
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 0

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 1

This series primarily used with construction and mining ,bolting rig, various hand held drill machines, drifters, blasting equipment and various air source requirement.
Features:
1.The host has higher efficiency, better reliability and longer life.
2.The diesel engine has strong power and low fuel consumption.
3.The air volume control system is simple and reliable, saving diesel.
4.Multi-stage air filter, suitable for dusty working environment.
5.Easy to move, it can still move flexibly in harsh terrain conditions.
6.long lifetime and low maintenaince cost.



Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 2Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 3Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 4





Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 5

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 6

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 7

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 8

Product Description

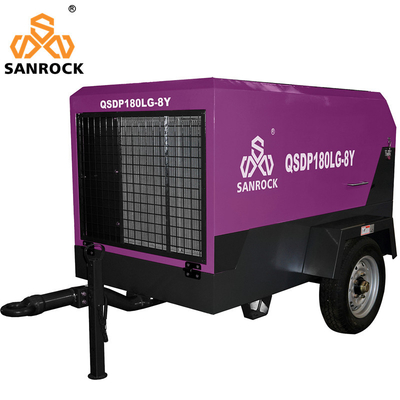

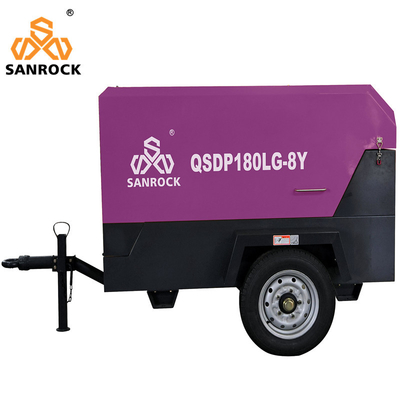

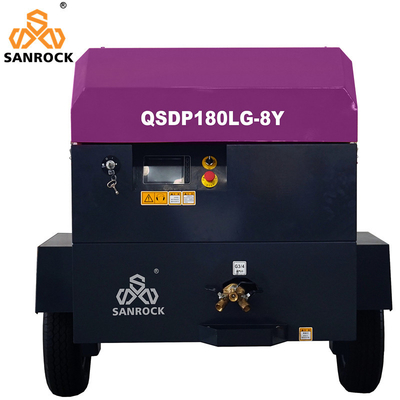

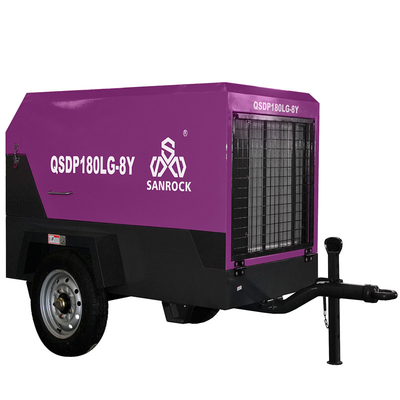

SANROCK SCREW AIR COMPRESSOR QSDP180LG-8Y
Compressor
Pressure (bar)
8
Air consumption (m³/min)
5
Lubricating oil capacity(L)
10
Dual transformation
Single
Engine
brand
Yanmar
Yuchai
Model
4TNV94L-ZCWCSY
YCF2550-T452
Power (kw)
35.9
36.8
Max. working speed/ idle speed (rpm)
2100/1300
2300/1300
Cylinder No.
4
4
Emission standard
Stage Ⅳ
Stage Ⅳ
Unit
Fuel tank capacity (L)
70
120
Exhaust port specifications * Quantity
G 3/4*3
Wheel specifications * Quantity
2 wheels
Noise[Db(A)]
70±3
Dimension (mm)
2700*1350*1300
Weight (kg)
750



Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 9

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 10



Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 11Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 12

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 13



Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 14Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 15Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 16

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 17

Company Profile

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 18

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 19

Mining Diesel Screw Air Compressor Portable Industrial Rotary Screw Type Air Compressor 20

1.What can you buy from us?

DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,underground jumbo drill rig ,screw air compressor,DTH hammer,drill rod,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?

A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
