Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Air Compressor Machine
Type: Screw
Engine Brand: Yanmar / Yuchai
Power: 35.9KW/36.8KW
Pressure: 8bar
Lubricating Oil Capacity: 10L
Air Consumption: 5m³/min
Max. Working Speed/ Idle Speed (rpm): 2100/1300 Rpm /2300/1300rpm
Application: Water Well Drilling,mining Blasting,General Industry,Air
Wheel Specifications * Quantity: 2 Wheels
Dimension(l*w*h): 2700*1350*1300mm
Weight: 750kg
Configuration: Portable
Warranty: 1 Year
Condition: New
Highlight:

Rotary Screw Air Compressor

,

Machine Screw Air Compressor

,

Portable Screw Air Compressor

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: QSDP180LG-8Y
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 0

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 1

This series primarily used with construction and mining ,bolting rig, various hand held drill machines, drifters, blasting equipment and various air source requirement.
Features:
1.The host has higher efficiency, better reliability and longer life.
2.The diesel engine has strong power and low fuel consumption.
3.The air volume control system is simple and reliable, saving diesel.
4.Multi-stage air filter, suitable for dusty working environment.
5.Easy to move, it can still move flexibly in harsh terrain conditions.
6.long lifetime and low maintenaince cost.



Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 2Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 3Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 4

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 5

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 6

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 7

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 8



Product Description

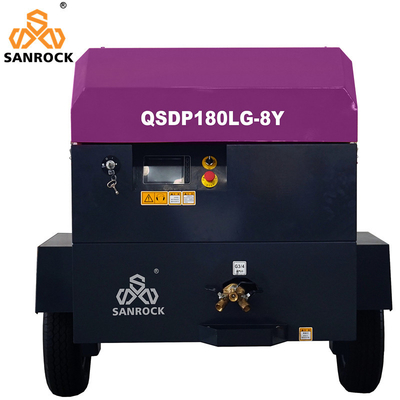

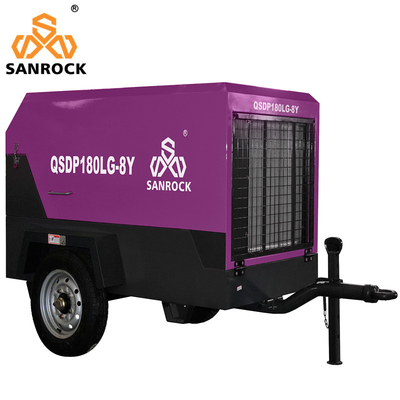

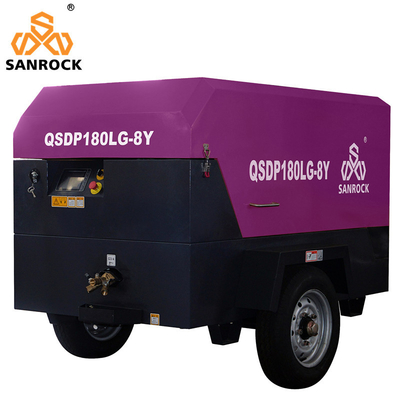

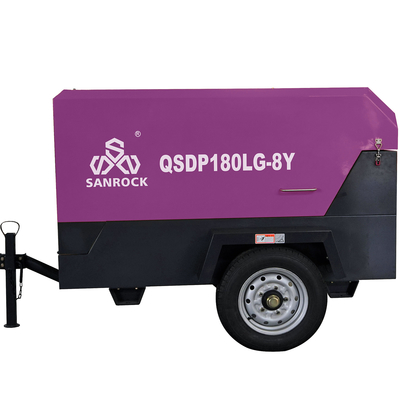

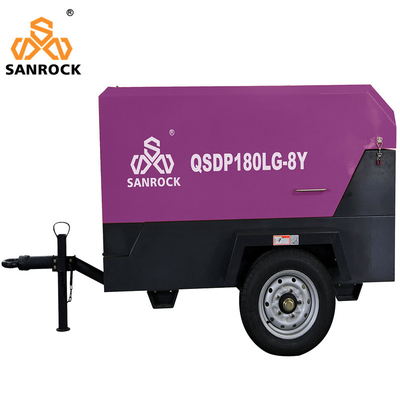

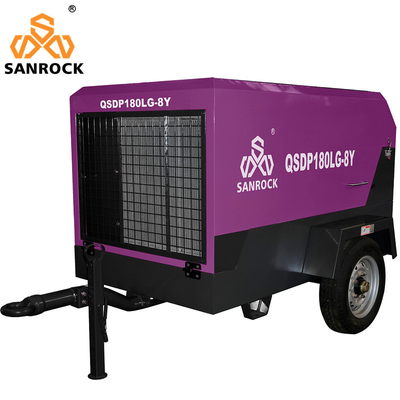

SANROCK SCREW AIR COMPRESSOR QSDP180LG-8Y
Compressor
Pressure (bar)
8
Air consumption (m³/min)
5
Lubricating oil capacity(L)
10
Dual transformation
Single
Engine
brand
Yanmar
Yuchai
Model
4TNV94L-ZCWCSY
YCF2550-T452
Power (kw)
35.9
36.8
Max. working speed/ idle speed (rpm)
2100/1300
2300/1300
Cylinder No.
4
4
Emission standard
Stage Ⅳ
Stage Ⅳ
Unit
Fuel tank capacity (L)
70
120
Exhaust port specifications * Quantity
G 3/4*3
Wheel specifications * Quantity
2 wheels
Noise[Db(A)]
70±3
Dimension (mm)
2700*1350*1300
Weight (kg)
750



Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 9

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 10

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 11





Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 12Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 13Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 14



Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 15

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 16

Company Profile

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 17

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 18

Screw Air Compressor Machine Rotary Screw Type Air Compressor Portable Air Compressor 19

1.What can you buy from us?

DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,underground jumbo drill rig ,screw air compressor,DTH hammer,drill rod,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?

A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
