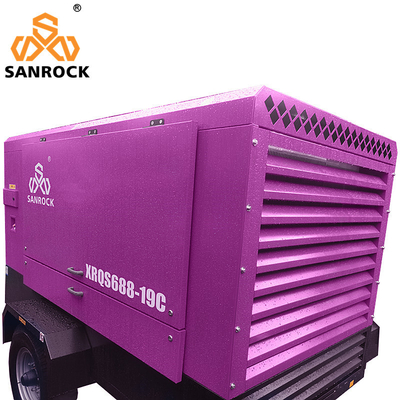

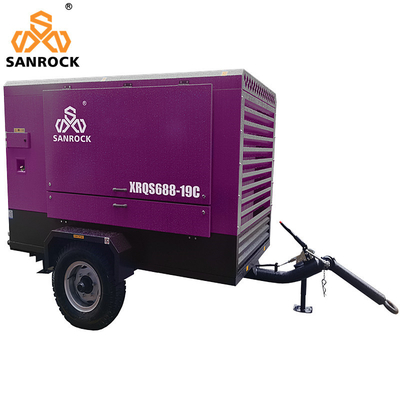

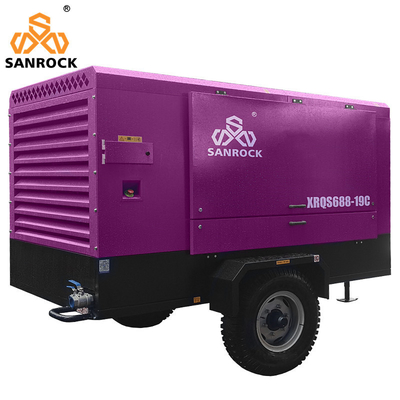

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size

1Set/Sets per Month
MOQ
negotiable
Price
300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Air Compressor Machine
Type: Screw Air Compressor
Power Source: Diesel
Configuration: Portable
Cooling Method: Air Or Water Cooled
Diesel Engine: Cummins
Motor Power: 194KW
Capacity: 19m3/min
Pressure: 19Bar
Tank: 300L
Oil-gas Tank Capacity: 55L
Application: Water Well Drilling,mining Blasting,General Industry,Air
Lubrication Style: Lubricated
Dimension(L*W*H): 4470*1960*2535mm
Weight: 3050kg
Warranty: 1 Year
Highlight:

Mining Screw Air Compressor

,

300L Screw Air Compressor

,

Portable Screw Air Compressor

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: XRQS688-19C
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

This series primarily used with construction and mining ,bolting rig, various hand held drill machines, drifters, blasting equipment and various air source requirement.
Features:
1.The host has higher efficiency, better reliability and longer life.
2.The diesel engine has strong power and low fuel consumption.
3.The air volume control system is simple and reliable, saving diesel.
4.Multi-stage air filter, suitable for dusty working environment.
5.Easy to move, it can still move flexibly in harsh terrain conditions.
6.long lifetime and low maintenaince cost.

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 0

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 1

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 2

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 3

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 4

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 5

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 6

Products Description

Product name
Screw Air Compressor
Cooling method
Air Cooling
Application
mining quarry, water well,constructure,etc
F.A.D m³/min/CFM
19/680
Pressure Bar/PSI
19/275
Fuel Tank Capacity(L)
300
Oil-gas Tank Capacity(L)
55
Outlet Valve
G2*1&G3/4*1
Air End
Atlas Two Stage Compression
Diesel Engine
Cummins ll
Model Number
6CTA8.3-C260
Rated Power(kw)
194
Rated Speed(rpm)
2060/1400
Dimension(mm)
4470*1960*2535
Shipping Dimension(mm)
3020*1650*2140
Weight(kg)
3050
Type
2 Wheels



300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 7300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 8

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 9



300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 10

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 11

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 12

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 13

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 14

Company Information

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 15

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 16

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 17

300L Tank Diesel Screw Air Compressor Mining Portable Compressor 4470*1960*2535mm Size 18

1.What can you buy from us?

DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
