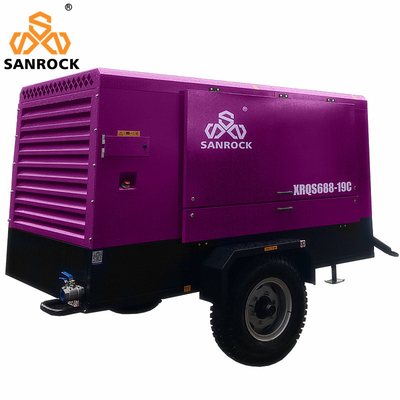

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry

1Set/Sets per Month
MOQ
negotiable
Price
300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Screw Air Compressor
Name: Air Compressor Machine
Type: Screw
Power Source: Diesel
Configuration: Portable
Cooling Method: Air Or Water Cooled
Diesel Engine: Cummins
Motor Power: 194KW
Capacity: 19m3/min
Pressure: 19Bar
Tank: 300L
Oil-gas Tank Capacity: 55L
Air End: Two Stage Compression
Outlet Valve: G2*1&G3/4*1
Application: Water Well Drilling,mining Blasting,General Industry,Air
Lubrication Style: Lubricated
Dimension(L*W*H): 4470*1960*2535mm
Weight: 3050kg
Warranty: 12 Months
Highlight:

Mining Industry Screw Air Compressor

,

300L Screw Air Compressor

,

Two Stage Compression Screw Air Compressor

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: XRQS688-19C
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 0300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 1

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 2

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 3

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 4

This series primarily used with construction and mining ,bolting rig, various hand held drill machines, drifters, blasting equipment and various air source requirement.
Features:
1.The host has higher efficiency, better reliability and longer life.
2.The diesel engine has strong power and low fuel consumption.
3.The air volume control system is simple and reliable, saving diesel.
4.Multi-stage air filter, suitable for dusty working environment.
5.Easy to move, it can still move flexibly in harsh terrain conditions.
6.long lifetime and low maintenaince cost.

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 5



300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 6

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 7

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 8

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 9

Products Description

Product name
Screw Air Compressor
Cooling method
Air Cooling
Application
mining quarry, water well,constructure,etc
F.A.D m³/min/CFM
19/680
Pressure Bar/PSI
19/275
Fuel Tank Capacity(L)
300
Oil-gas Tank Capacity(L)
55
Outlet Valve
G2*1&G3/4*1
Air End
Atlas Two Stage Compression
Diesel Engine
Cummins ll
Model Number
6CTA8.3-C260
Rated Power(kw)
194
Rated Speed(rpm)
2060/1400
Dimension(mm)
4470*1960*2535
Shipping Dimension(mm)
3020*1650*2140
Weight(kg)
3050
Type
2 Wheels



300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 10

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 11

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 12

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 13

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 14

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 15

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 16



300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 17

Company Information

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 18

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 19

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 20

300L Two Stage Compression Air End Diesel Screw Air Compressor for Mining Industry 21

1.What can you buy from us?

DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
