Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine

1Set/Sets per Month
MOQ
negotiable
Price

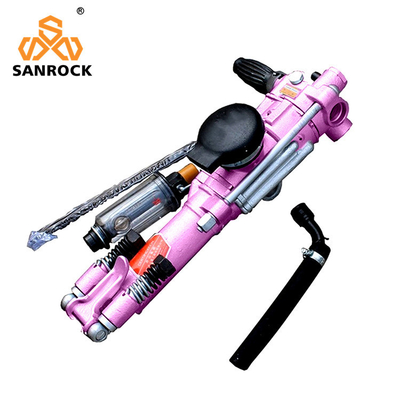

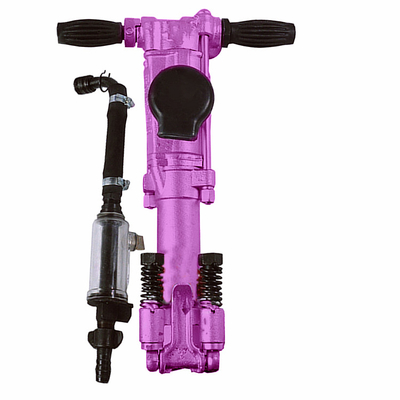

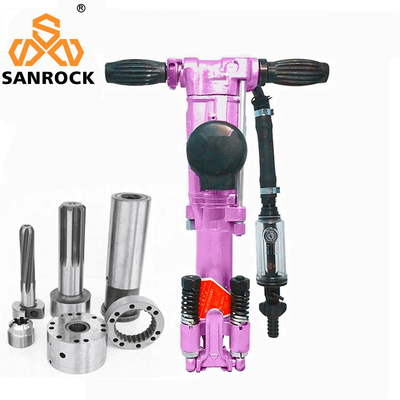

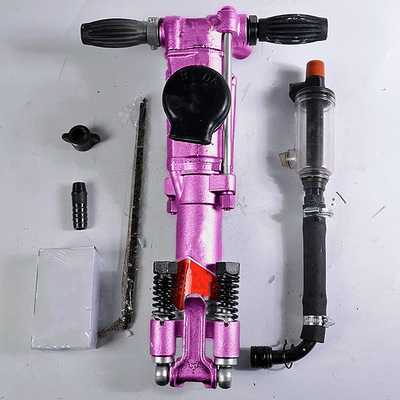

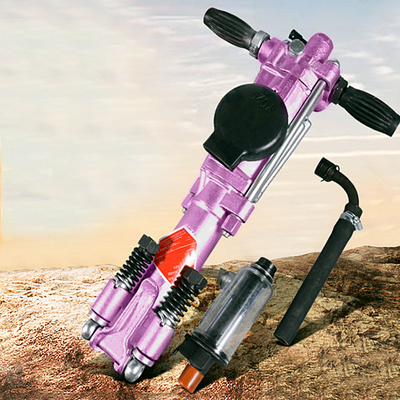

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Jack Hammer
Name: Pneumatic Rock Drill
Type: Rotary Drilling Rig
Feature: Light Weight, Portable,factory Price
Application: Quarry, Mining, Road Construction,concrete Breaking
Drilling Diameter: 50-57mm
Drilling Depth: 6m
Impact Frequency: ≥33 Hz
Air Consumption: ≤33 L/S
Air Pressur: 0.4-0.63 Mpa
Cylinder Diameter: 65mm
Weight: 20.5 KG
Keyword: Portable Rock Drilling Machine
Key Selling Points: Easy To Operate
Highlight:

Portable Rock Drilling Machine

,

Air Leg Rock Drill Machine

,

Mining Pneumatic Jack Hammer

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: Y20
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

We offer a range of hand drills,leg drills and feed drilld.It is mainly used for blasting holed and other drilling works railway construction,water conservancy construction and defence project facility.It is suitable for drilling and blasting under various of rocks at any direction angles.

This Series pneumatic rock drill apply in hard rock on the rock drill operation,it has strong adaptability to the working conditions.The product is energy efficiency, Its components has long life and durable.The machice can be generally used with the same type,it can greatly reduce the customer loss for spare part replacement.

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 0Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 1

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 2

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 3

1.Original in distributing construction, nimble in starting, and smooth in operation.
2.low noise, spare parts easily purchasing ,parts highly interchangeable and reliable performance.
3. Can be used on all rock formation, fast drilling velocity and energy-saving with low vibration and low noise.
4. Energy-saving and efficient, long service life of parts, adn the parts are highly interchangeable and reliable preformance.
5.Grouped control machanism, quick to start up, with "air on, water on, air off, water off" machanism, convenient to handle an deasy to maintain and repair.




Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 4Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 5




Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 6Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 7
Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 8Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 9



Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 10



Products Description

Product name: pneumatic rock drill
Name:Y20 jack hammer
Working pressure:0.4-0.63Mpa
Impact frequency:≥33Hz
Impact energy:≥26J
Cylinder Diameter:65mm
Air consumption:≤33(L/S)
Drilling Depth:6m
Piston Stroke:55mm
Weight:20.5kg
Use:mining, coal mining, engineering construction
Feature:Easy Operation



Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 11Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 12

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 13

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 14

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 15



Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 16

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 17Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 18

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 19

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 20



Company Information

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 21

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 22

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 23

Portable Rock Drilling Machine Mining Pneumatic Jack Hammer Air Leg Rock Drill Machine 24

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
