Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine

1Set/Sets per Month
MOQ
negotiable
Price
Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Jack Hammer
Name: Portable Pneumatic Rock Drill
Drilling Diameter: 34-42mm
Drilling Depth: 1-6m
Application: Mining ,blast Hole Drilling,metallurgy, Coal,railway, Transportation
Feature: High Drilling Efficiency,High Performance
Impact Energy: ≥65J
Air Consumption: ≤67VS
Impact Frequency: ≥31Hz
Working Pressure(bar): 0.4-0.63Mpa
Dimension(L*W*H): 760*320*260MM
Weight: 24 KG
Highlight:

Hand Held Air Leg Jack Hammer

,

YT24 Air Leg Jack Hammer

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: YT24
Payment & Shipping Terms

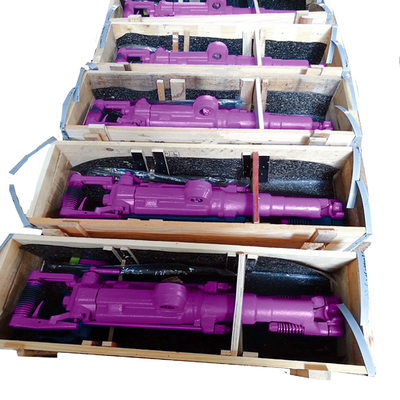

Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Hand-held Rock Drill is widely used for dry drilling in the medium-hard and hard rock. It is widely used in metallurgy, coal,railway, transportation, water conservancy construction and national defense stone works, etc. It is suitable for drilling and blasting under various of rocks at any direction angles.

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 0Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 1Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 2

1.Fit for wet drilling in medium-hard or hard rock.
2.Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism,convenient to handle and easy to maintain and repair.
3.Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
4.Hand-hold rock drill, hand hammer drilllow weight,reasonable structure,handy use and little air consumption.

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 3

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 4

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 5Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 6

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 7Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 8

Products Description

Product name:YT24 Jack hammer
Name:pneumatic rock drill
Air pressure:0.4-0.6Mpa
Drilling Diameter:34-42mm
Drilling Depth:10M
Impact energy:≥65J
Impact frequency:≥31Hz
Drilling Diameter:70mm
Dimension(L*W*H):760*320*260MM
Weight:24 KG

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 9

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 10

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 11Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 12

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 13



Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 14

Company Profile

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 15

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 16

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 17

Hand Held Air Leg Jack Hammer Pneumatic Rock Drill YT24 Small Rock Drilling Machine 18

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.


4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
