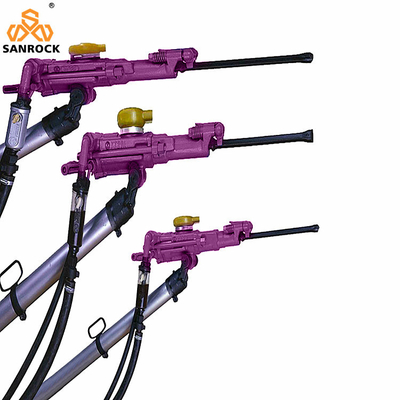

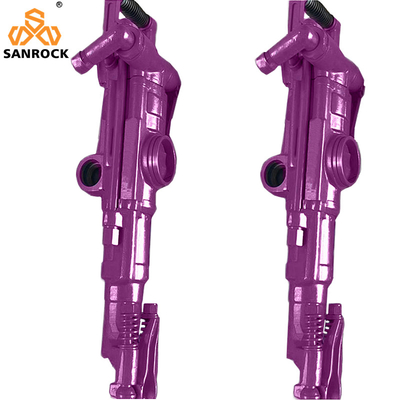

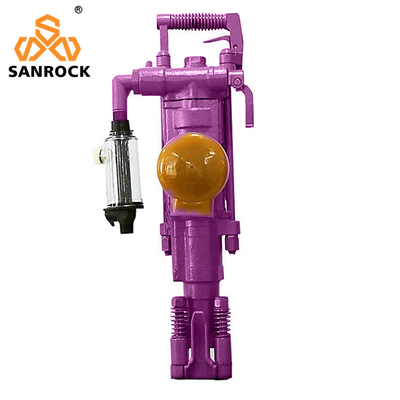

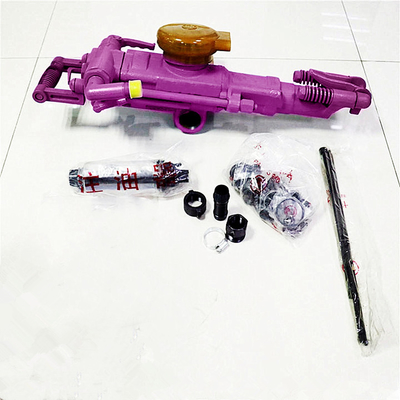

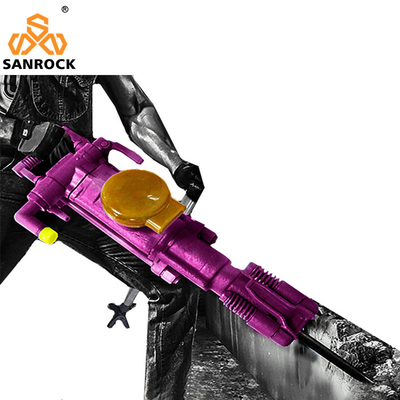

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine

1Set/Sets per Month
MOQ
negotiable
Price
Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Jack Hammer
Name: Pneumatic Rock Drill
Keyword: Portable Rock Drilling Machine
Drilling Diameter: 34-56mm
Drilling Depth: 1-6m
Application: Mining ,blast Hole Drilling,metallurgy, Coal,railway, Transportation
Feature: High Drilling Efficiency,High Performance
Drill Rod Diameter: Hex 22*108
Working Pressure(bar): 0.4-0.63Mpa
Air Consumption: 4.8m³/min
Cylinder Diameter: 80 Mm
Impacts Frequency: 37 (HZ)
Dimension(L*W*H): 668 X 248 X 202 Mm
Weight: 27KG
Highlight:

Portable Rock Drilling Machine

,

Mining Pneumatic Jack Hammer

,

YT27 Pneumatic Jack Hammer

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: YT27
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description



Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 0

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 1

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 2
Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 3

YT27 Rock Drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.

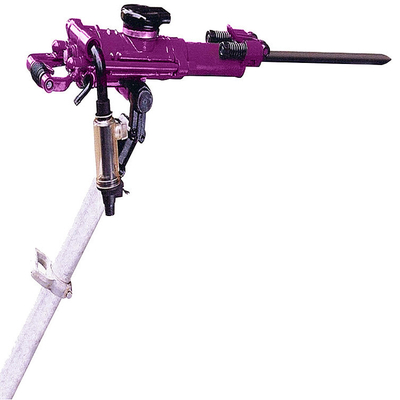

It is suitable for drilling and blasting under various of rocks at any direction angles.This machine could match with short air leg or long air leg.

Feature:
1.Fit for wet drilling in medium-hard or hard rock.
2.Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism,convenient to handle andeasy to maintain and repair.
3.Long service life of parts, parts highly interchangeable and reliable performance.
4.YT27 differ form similar products particularly in its high efficiency, strong flushing and powerful torque.

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 4

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 5


Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 6

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 7

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 8





Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 9



Products Description

Product Name:YT27 Portable Pneumatic rock drill
Key Selling Points:efficient and low energy consumption
Working Pressure(bar):0.4-0.63Mpa
Drilling Depth:6m
Drilling Diameter:32mm-56mm
Shank size:H22x108mm
Impacts Frequency:37 (HZ)
Cylinder Diameter:80 mm
Air Consumption :4.8m³/min
Dimension(L*W*H):668 x 248 x 202 mm
Weight:27 KG
Application:mining ,concrete breaking,metallurgy, coal,railway
Feature:easy Operation,light weight, high drilling efficiency

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 10

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 11

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 12Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 13

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 14Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 15

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 16Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 17

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 18

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 19

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 20

Company Profile

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 21

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 22

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 23

Air Leg Rock Drill YT27 Pneumatic Jack Hammer Mining Portable Rock Drilling Machine 24

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.


4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
