Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight

1Set/Sets per Month
MOQ
negotiable
Price
Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Jack Hammer
Name: Pneumatic Rock Drill
Keyword: Portable Rock Drilling Machine
Drilling Diameter: 34-56mm
Drilling Depth: 1-6m
Application: Mining ,blast Hole Drilling,metallurgy, Coal,railway, Transportation
Feature: High Drilling Efficiency,High Performance
Drill Rod Diameter: Hex 22*108
Working Pressure(bar): 0.4-0.63Mpa
Air Consumption: 4.8m³/min
Cylinder Diameter: 80 Mm
Impacts Frequency: 37 (HZ)
Dimension(L*W*H): 668 X 248 X 202 Mm
Weight: 27KG
Highlight:

27KG Drill Rod Diameter Jack Hammer

,

Portable Drill Rod Diameter Jack Hammer

,

22*108 Drill Rod Diameter Jack Hammer

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: YT27
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description



Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 0



Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 1

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 2
Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 3

YT27 Rock Drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.

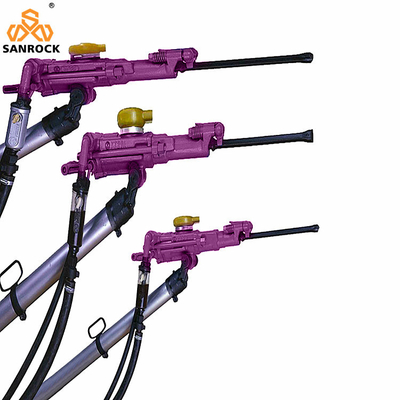

It is suitable for drilling and blasting under various of rocks at any direction angles.This machine could match with short air leg or long air leg.

Feature:
1.Fit for wet drilling in medium-hard or hard rock.
2.Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism,convenient to handle andeasy to maintain and repair.
3.Long service life of parts, parts highly interchangeable and reliable performance.
4.YT27 differ form similar products particularly in its high efficiency, strong flushing and powerful torque.



Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 4

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 5


Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 6

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 7

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 8Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 9



Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 10



Products Description

Product Name:YT27 Portable Pneumatic rock drill
Key Selling Points:efficient and low energy consumption
Working Pressure(bar):0.4-0.63Mpa
Drilling Depth:6m
Drilling Diameter:32mm-56mm
Shank size:H22x108mm
Impacts Frequency:37 (HZ)
Cylinder Diameter:80 mm
Air Consumption :4.8m³/min
Dimension(L*W*H):668 x 248 x 202 mm
Weight:27 KG
Application:mining ,concrete breaking,metallurgy, coal,railway
Feature:easy Operation,light weight, high drilling efficiency

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 11

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 12

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 13Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 14



Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 15Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 16

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 17

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 18

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 19

Company Profile

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 20

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 21

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 22

Drill Rod Diameter Hex 22*108 Portable Jack Hammer Mining Mini Rock Drill Machine with 27KG Weight 23

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.


4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
