Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill

1Set/Sets per Month
MOQ
negotiable
Price
Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Jack Hammer
Name: Pneumatic Rock Drill
Keyword: Pneumatic Rock Drill Machine
Drilling Diameter: 34-56mm
Drilling Depth: 1-6m
Application: Quarry, Mining, Construction,concrete Breaking
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Cylinder Diameter: 82mm
Drilling Frequency: 37HZ
Impact Energy: >70J
≤65 L/S: ≤65 L/S
Air Pressure: 0.4-0.63mpa
Drill Rod Diameter: Hex 22*108
Dimension(L*W*H): 659*248*205 Mm
Weight: 29KG
Highlight:

Air Leg Rock Drill

,

Handheld Jack Hammer

,

Concrete Breaker Rock Drill

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: YT29
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Portable Pneumatic Rock Drill :A tool used to extract stone directly by drilling holes in rock formations for explosive charges to blast through the rock to complete the quarrying of stone or other masonry. In addition, the drill can be converted into a destructor, used to break up hard layers such as concrete.

Usage: mining and construction work - the application scope includes construction demolition operation, geological exploration drilling and foundation engineering, as well as cement road surface, asphalt road surface of all kinds of splitting, crushing,tamping, shovel and fire rescue functions, more suitable for all kinds of mining drilling, splitting, mining. And with good performance, high efficiency, light weight, easy to use and other advantages.

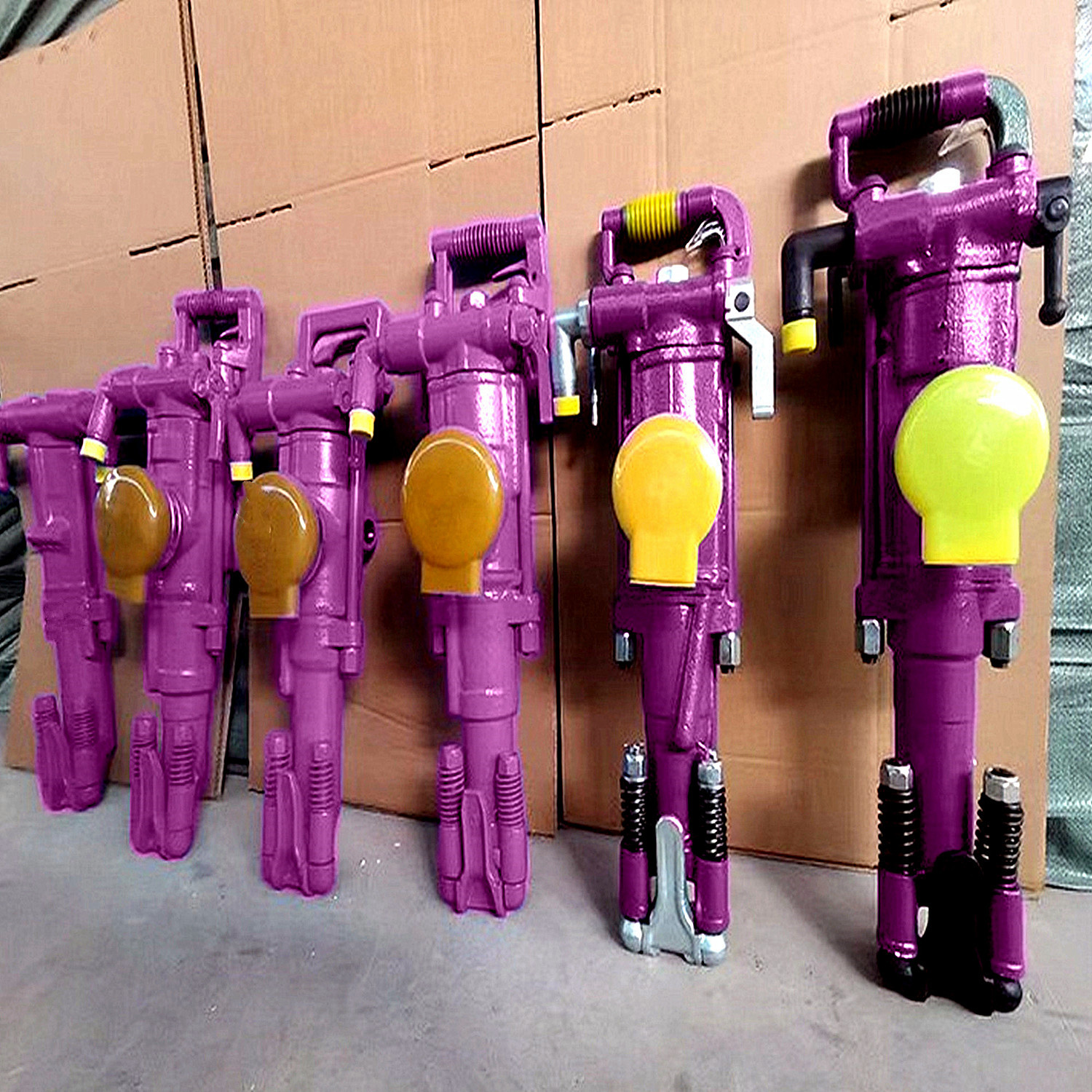

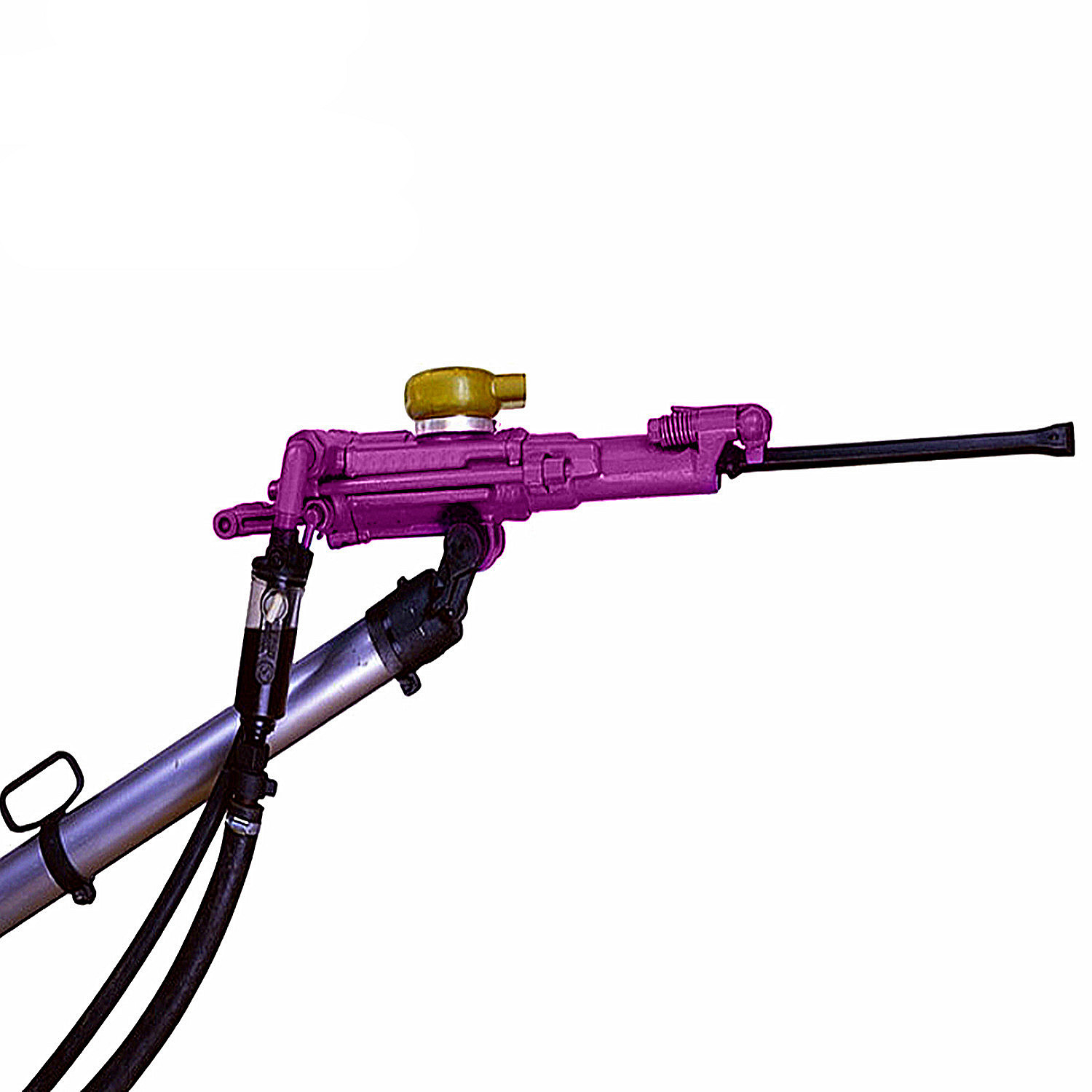

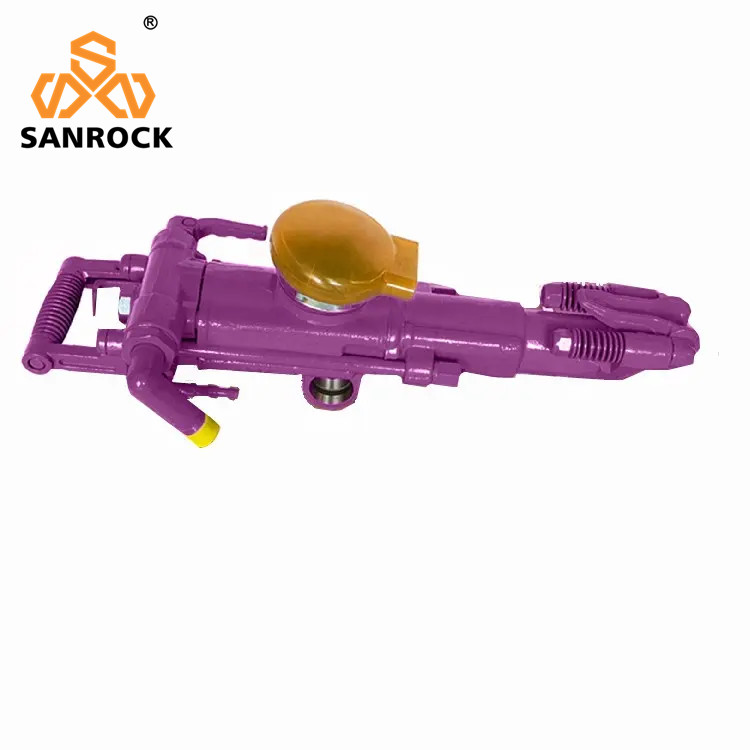

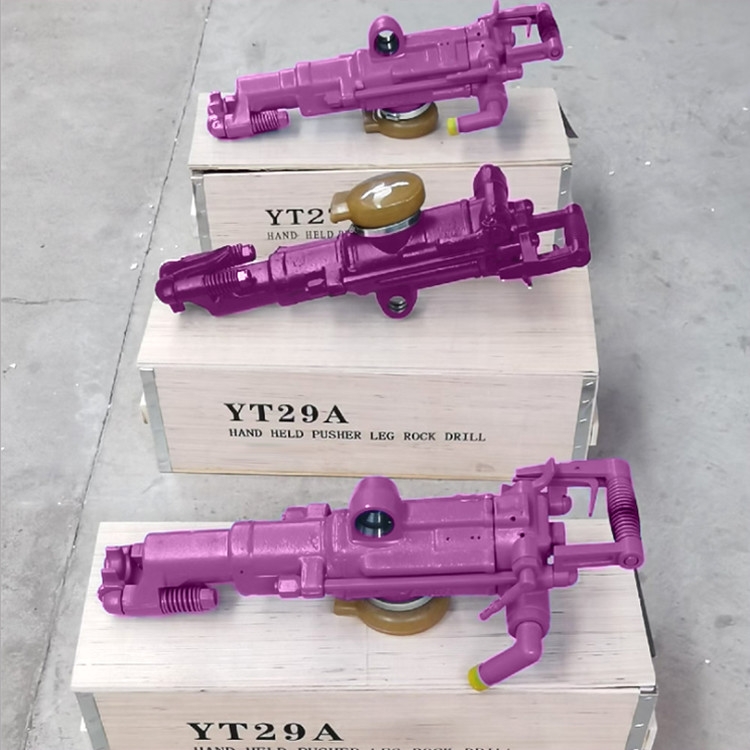

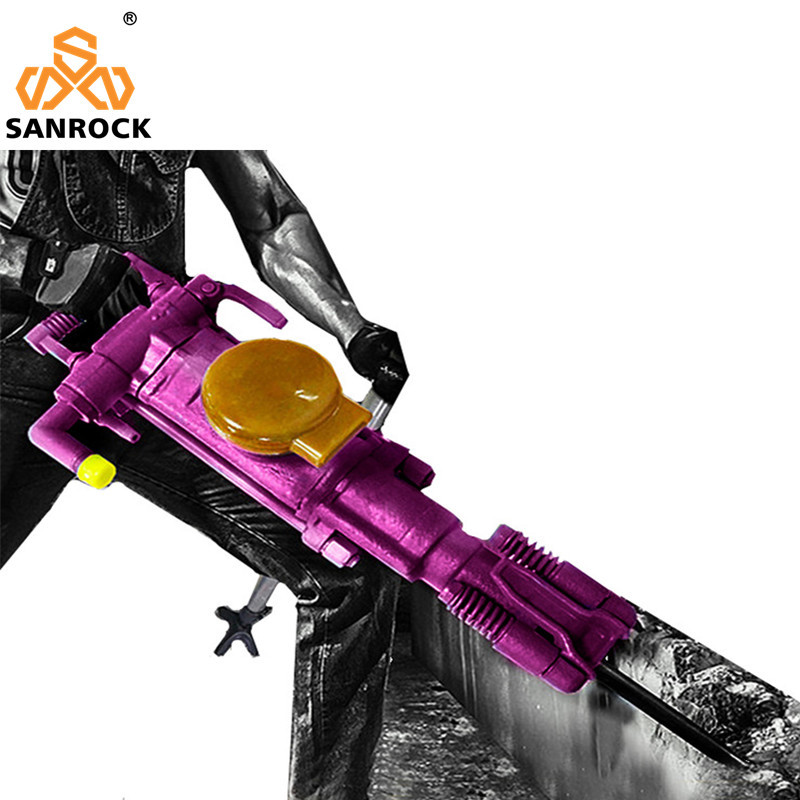

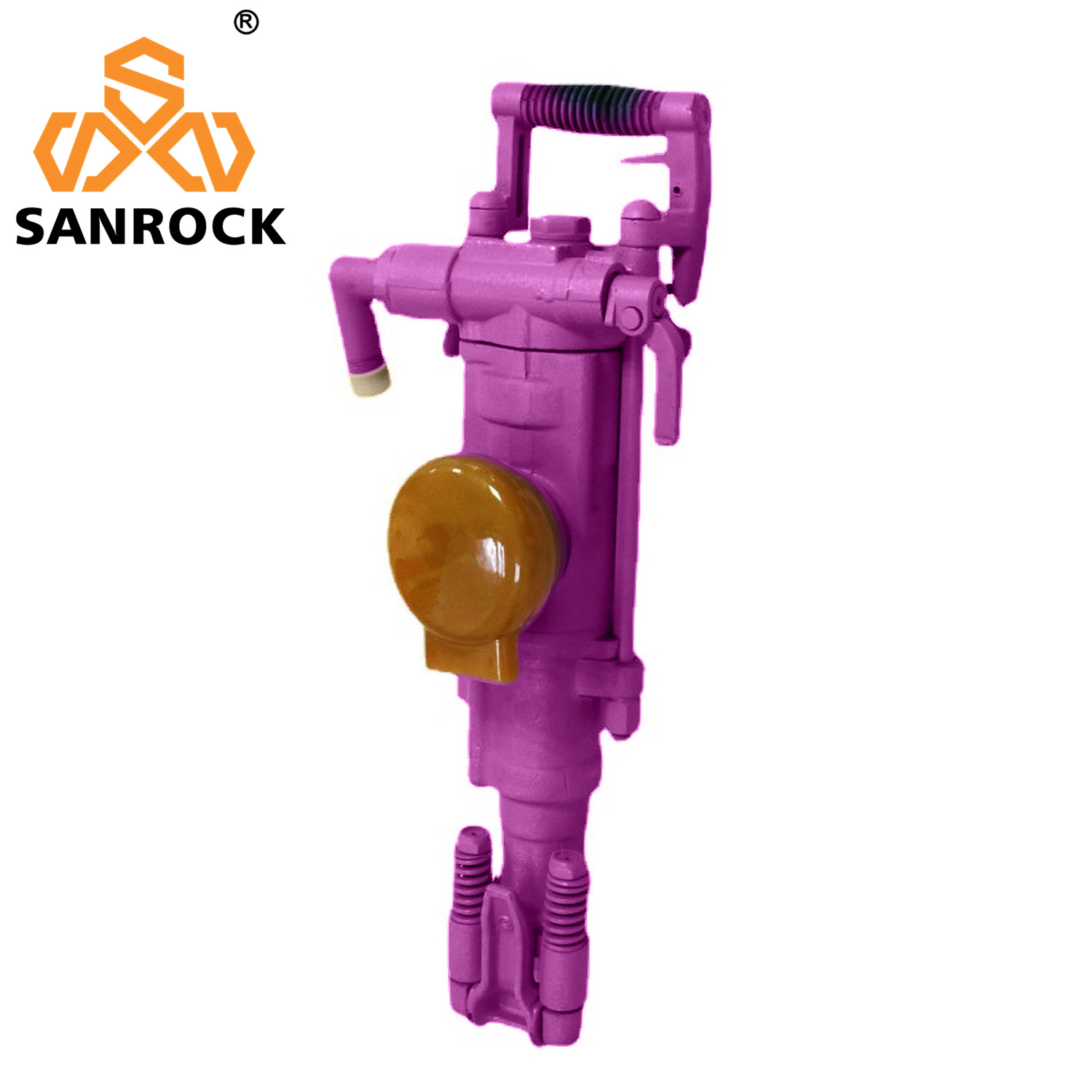

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 0

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 1

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 2

Features:
1, Portable Handheld Pneumatic Air Leg Rock Drill is fit for wet drilling in medium-hard or hard rock.
2, Grouped control mechanism, quick to start up, with "air on ,water on, air off, water off" mechanism, convenient to handle and easy to maintain and repair.
3, Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
4. Can play a variety of small diameter and shallow hole. Generally only downward holes and nearly horizontal holes.



Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 3

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 4

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 5

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 6

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 7



Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 8

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 9

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 10



Products Description

Product name: Pneumatic Rock Drill
Name: Air Leg Rock Drill
Type:pneumatic jack hammer
Air pressure:0.4-0.63mpa
Cylinder Diameter:82mm
Rock drill depth:6m
Drilling Frequency:37HZ
Drilling Hole Dia.:35-45mm
Impact energy:>70J
Shank size:H22*108mm
Weight:29 KG
Dimension(L*W*H):659*248*205 mm
Application:mining ,concrete breaking,metallurgy, coal,railway
Feature:easy Operation,light weight, high drilling efficiency



Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 11

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 12

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 13

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 14

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 15

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 16



Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 17



Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 18

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 19

Company Profile

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 20

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 21

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 22

Pneumatic Rock Drill Machine Handheld Jack Hammer Concrete Breaker Air Leg Rock Drill 23

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.


4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
