YN27C Internal Combustion rock drill machine is a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill.Gasoline rock drill machine's outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head.
1.Engine:

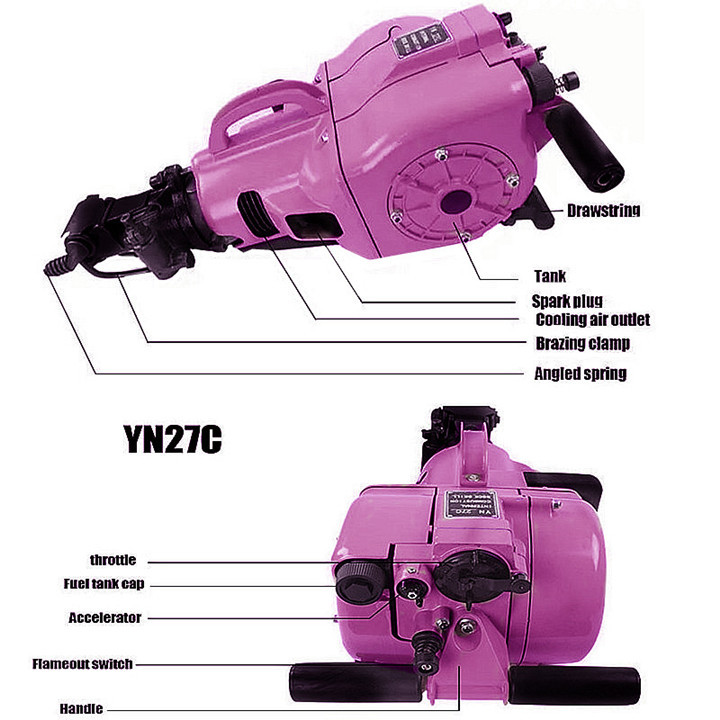

The engine is a hand operated,single cylinder and two stroke petrol engine with air cooling,reflux airconversion,no contact ignition,and no floating-type carburetor.It is composed of control parts,starter parts,oil tank parts,flywheel parts,crankshaft,connecting rod,crankshaft case parts,magneto parts,and piston parts and cylinder parts.
2.Air Compressor:
The engine piston and hammer piston are mounted separately in the upper and lower place of the cylinder.These two pistons move up and down synchronously.The hammer piston and the bigger bore of the cylinder forma compression chamber,which together with air inlet and outlet valves and ventilator valves,form the air compressor.It is composed of hammer piston parts and cylinder parts.
3.Rock drill:
It is composed of hammer piston parts,rotation mechanism parts,drill shank housing parts.

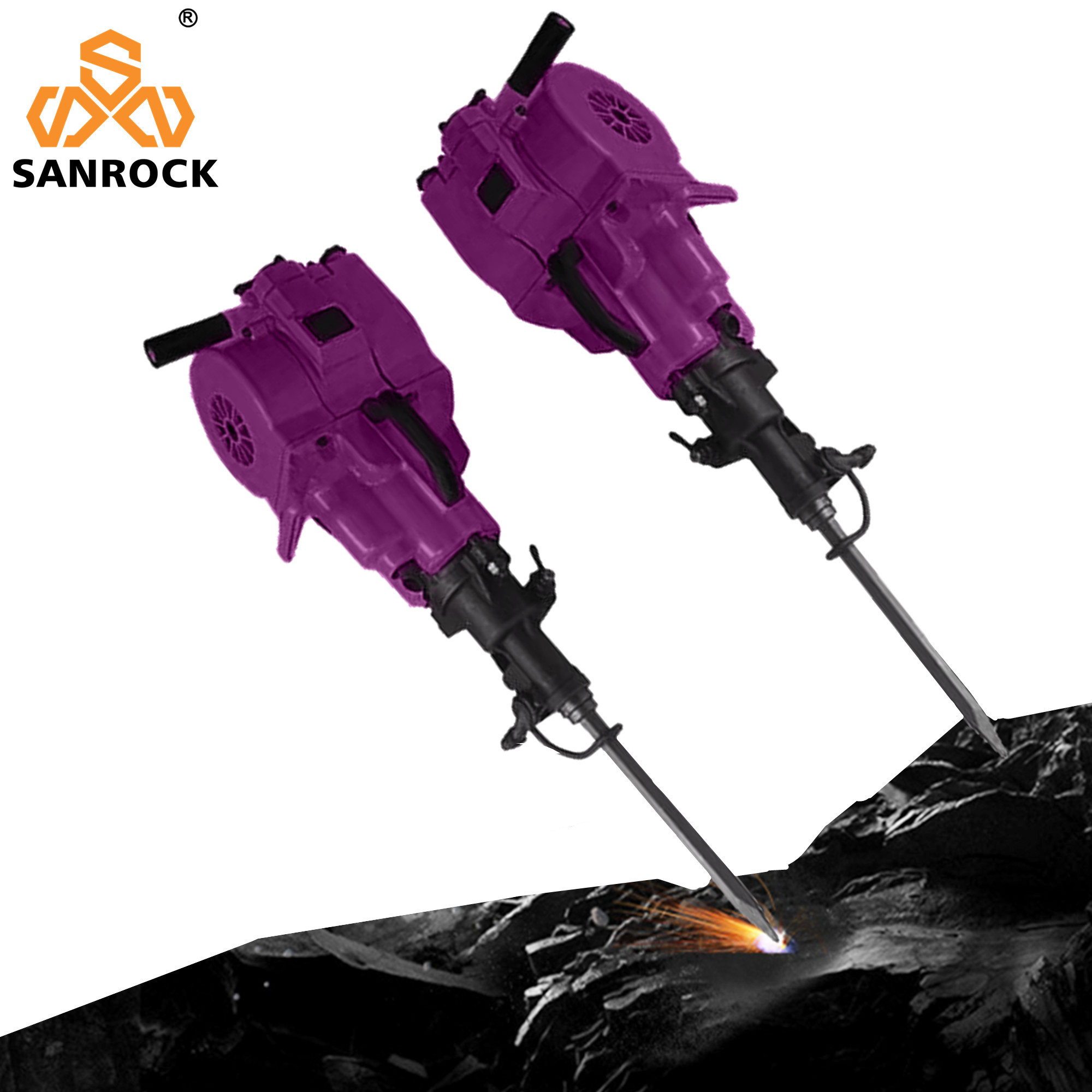

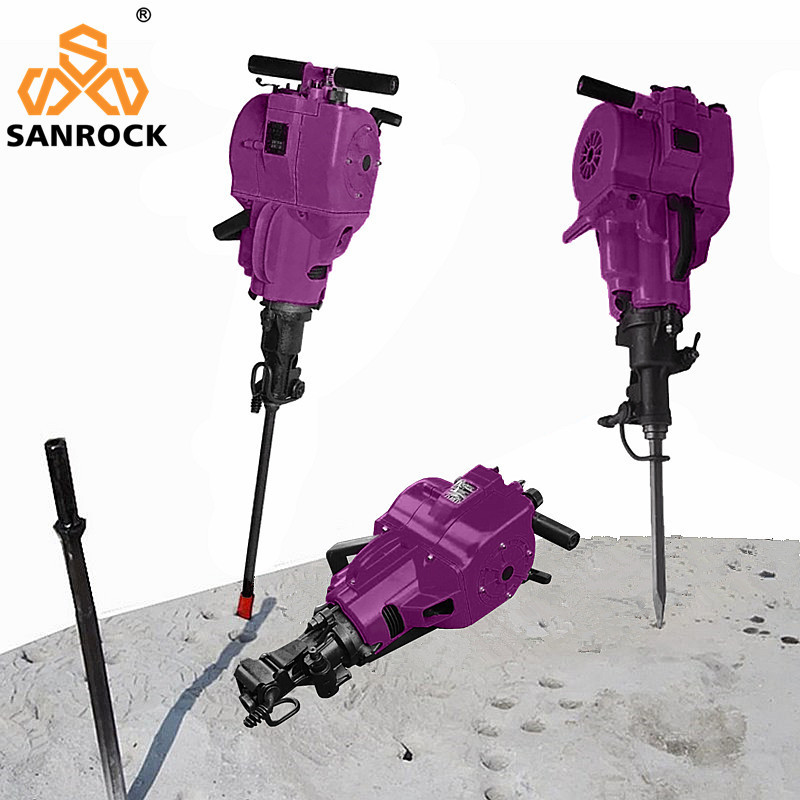

Available for drilling, splitting breaking, ramming, shoveling. And widely used in mining ,road construction, quarrying and national defense construction.The mini yn27c gasoline rock drill machine has functions of drilling holes, cleavage, bruising, tamping and chiseling.
1.Easy to operate. More timesaving and effortless. Drilling faster and more efficient.
2. Very compact structure, Less of the-easy-to-damage-parts, very easy to control. It can adapt to these outside situations there is no water and no electronic power.
3.It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plumbum equipment for running or stop.
4.It can be used for breaking, drilling, blasting, tamping splitting and ramming.
