Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine

1Set/Sets per Month
MOQ
negotiable
Price
Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Well Drilling Rig
Name: Water Well Drilling Rig Machine,Crawler Water Well Drilling Rig
Engine: Yuchai
Power Type: Diesel
Power(w): 60KW
Drilling Depth: 180m
Drilling Diameter: 140-254mm
Swing Torque: 3200-4600N.m
Air Consumption: 17-31m3/min
Swing Speed: 45-70rpm
Drill Pipe Diameter: 76mm / 89mm
Drill Pipe Length: 1.5m, 2.0m, 3.0m
Walking Speed: 2.5km/h
Application: Water Well Drilling Rig Mobile Drilling Rig,drilling Well
Feature: High Drilling Efficiency,Hydraulic Controlling,Portable
Usage: Water Well
Type: Rotary Drilling Rig
Warranty: 12 Months
Dimension(l*w*h): 4000×1630×2250mm
Weight: 5200KG
Working Pressure: 1.7~2.5Mpa
Highlight:

Crawler Water Well Drilling Rig

,

Crawler Borehole Drilling Machine

,

180m Crawler Water Well Drill Rig
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: SR180 Rubber Crawler Base
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

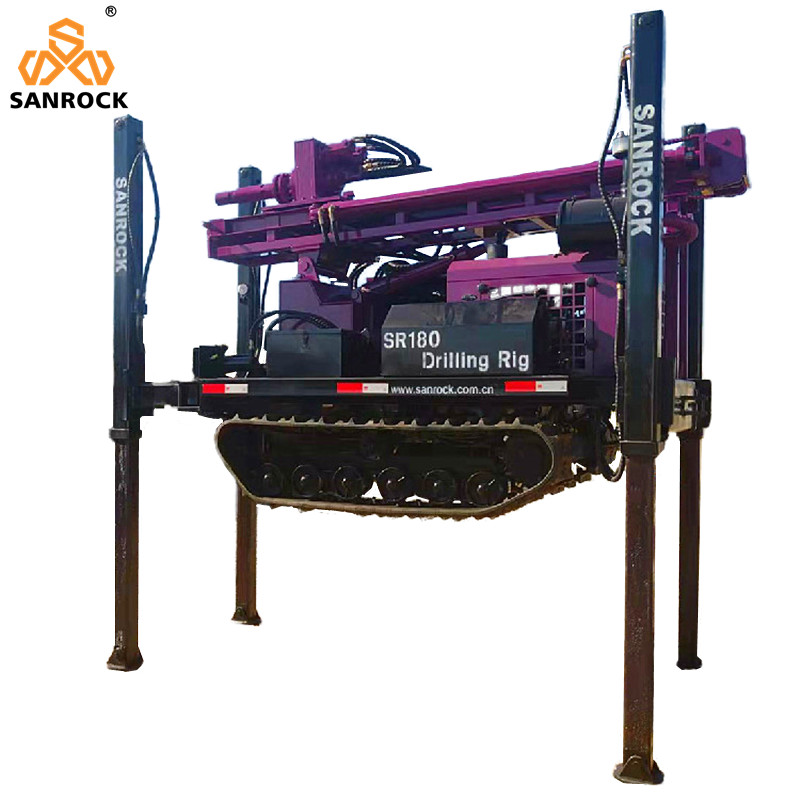

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 0

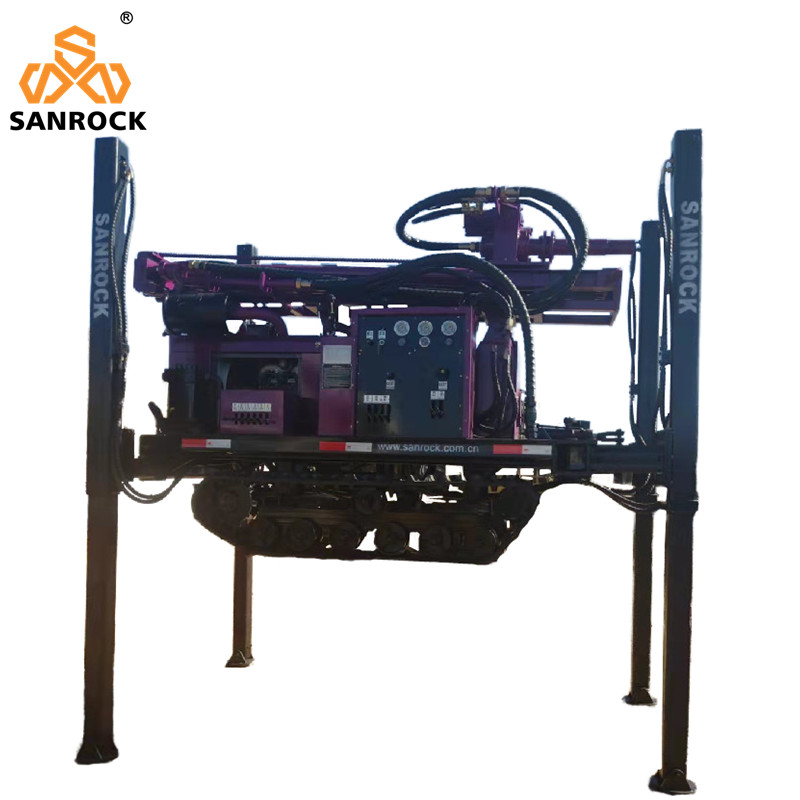

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 1
Extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums.
Feature:
1.SR180 series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
2.Water Well Crawler Drilling Rig is a light, highly-efficient and multifunction drilling device,convenient use, reliability and durability.
3.Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.
4.Lifting force: composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity
5.Hydraulic oil pump: It uses parallel gearbox to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost. 6.Rotary head device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs.

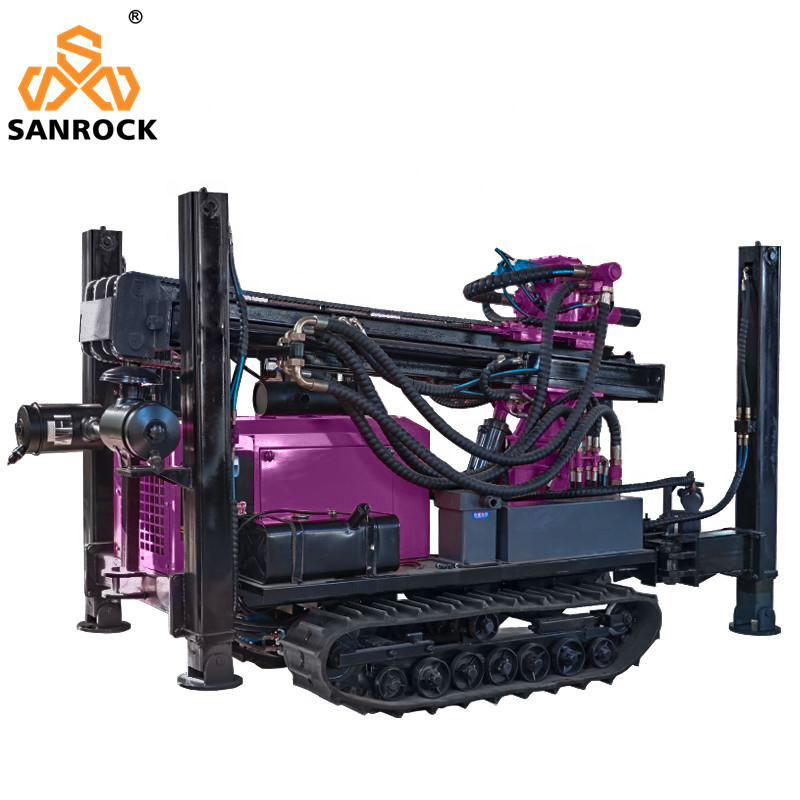

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 2

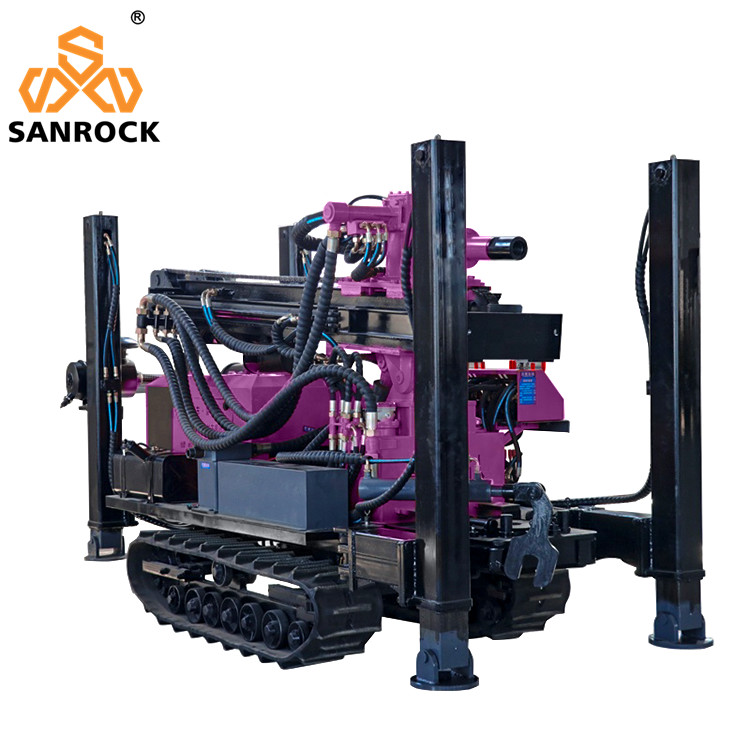

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 3

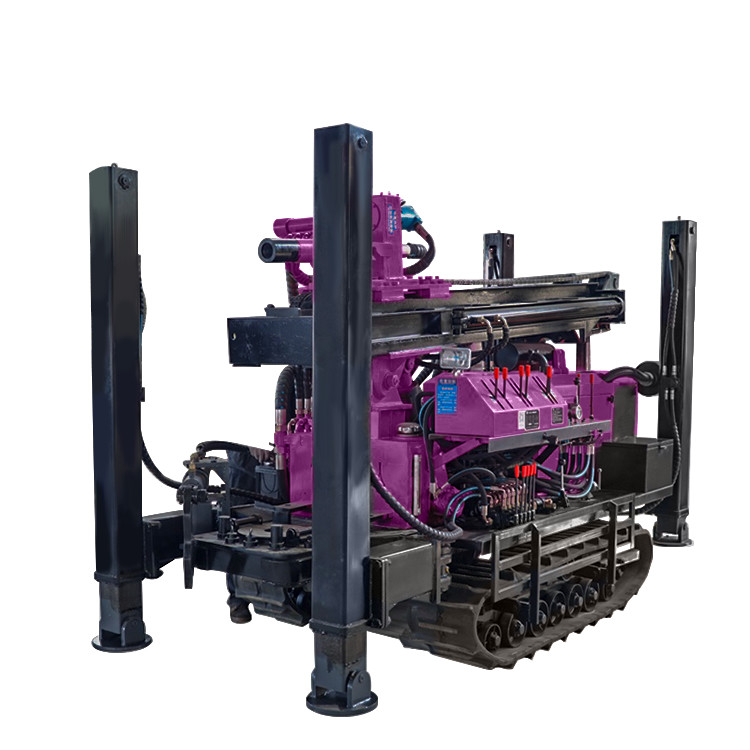

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 4

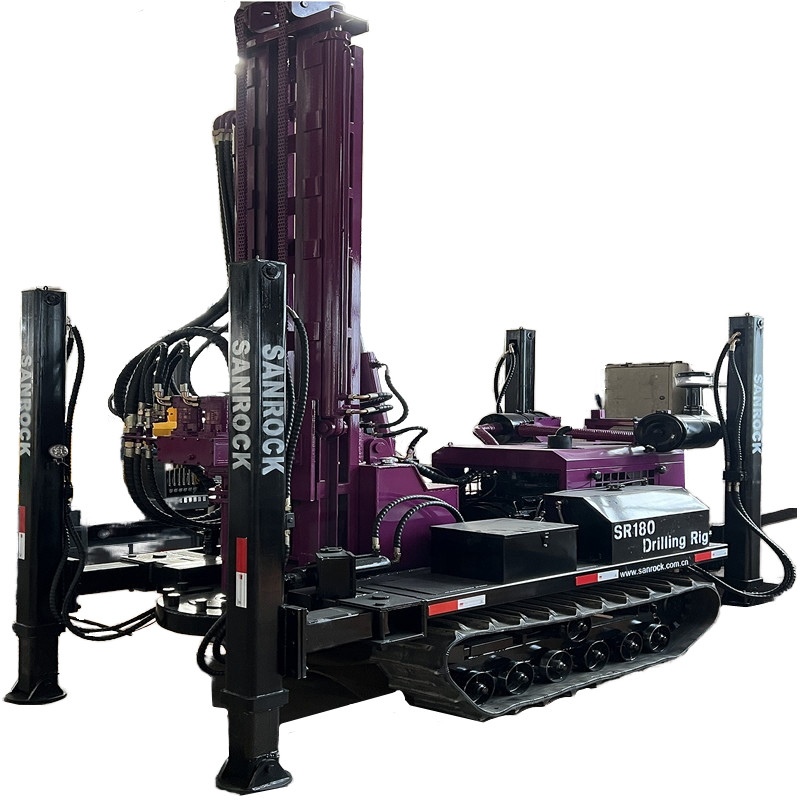

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 5Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 6
Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 7
Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 8
Products Description
Product Name:SR180 hydraulic water well drilling rig
Drilling Depth:180m
The hole diameter:140-254mm
Equipped capacitor:60KW
Using air pressure:1.7-2.5MPA
Air consumption:17-31m3/min
Swing speed:45-70rpm
Climbing angles:30Max
Walking speed:2.5km/h
Swing torque:3200-4600N.m
The engine brand:Yuchai engine
Equipped with hammer:Medium and high wind pressure series
The penetration efficiency:10-35m/h
Drill pipe diameter:76mm / 89mm
Drill pipe length:1.5m / 2.0m / 3.0m
Dimension:4000×1630×2250mm
The weight:5200KG


Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 9Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 10

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 11Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 12

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 13





Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 14

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 15

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 16Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 17

Company Profile

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 18Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 19



Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 20

Drilling Depth 180m Water Well Drill Rig Crawler Borehole Drilling Machine 21

1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.



2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
