Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Integrated Drilling Equipment
Name: DTH Drilling Rig
Power Type: Diesel
Engine: 298KW
Drilling Diameter: 140-190mm
Drilling Depth: 35m
Application: Drilling Rock Drilling Mining Quarry,blasting Hole Drilling,Construction Works
Feature: High Drilling Efficiency,Hydraulic Controlling,Multifunctional
Lifting Force: 30kn
Feed Stroke: 5895mm
Feed Extension: 1400mm
Working Pressure: 24bar
Air Consumption: 24m³/min
Rotary Torque (Max.): 3600 N. M
Fuel Tank Capacity: 700L
Climbing Capacity: 30°
Drilling Rod: 6+1, φ 89mmX3000/2000mm
DTH Hammer: 3"/4"/5''
Dimension(L*W*H): 9920X2700X3500 Mm
Weight: 21000KG
Highlight:

Hydraulic DTH Drilling Rig

,

Crawler Rock Borehole Drilling Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: S76
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Set/Sets per Month
Product Description

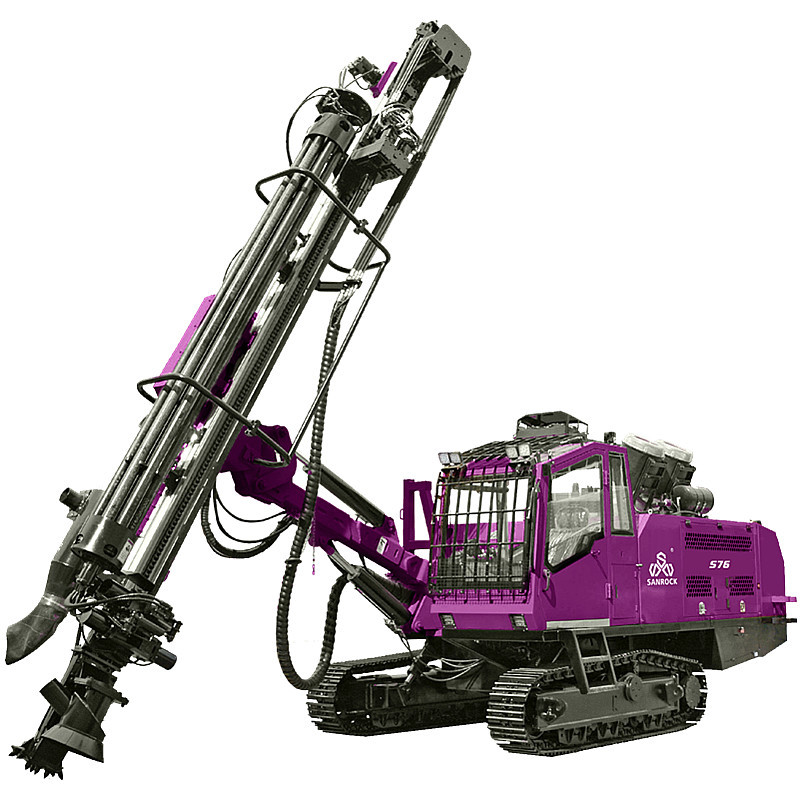

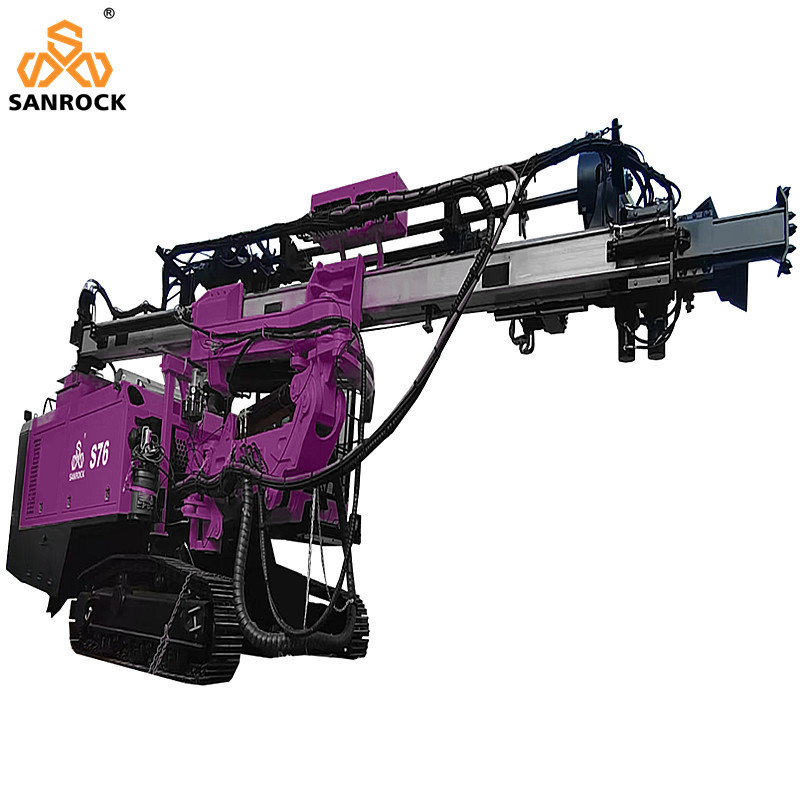

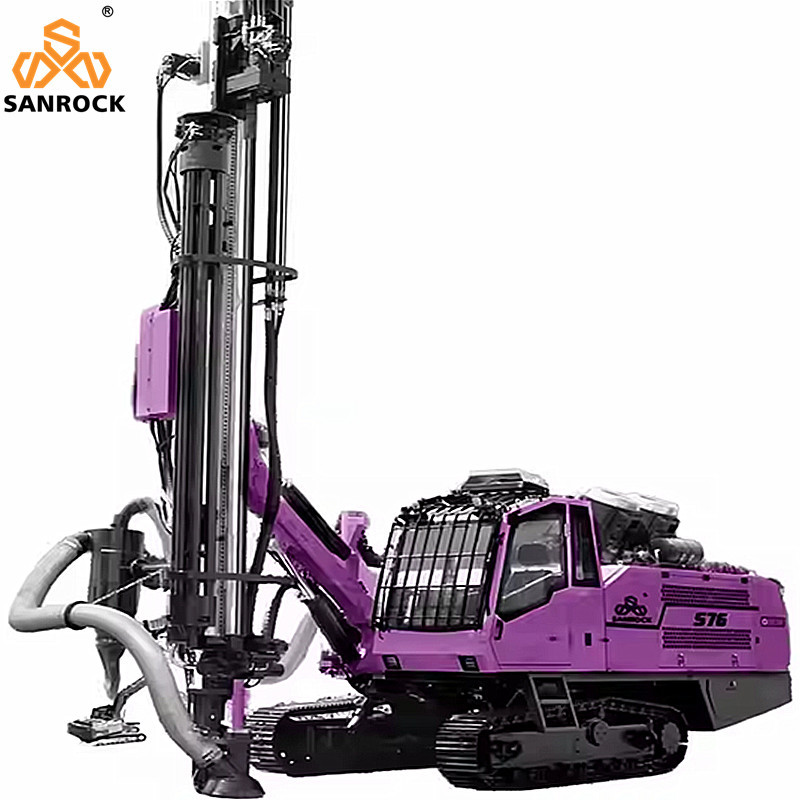

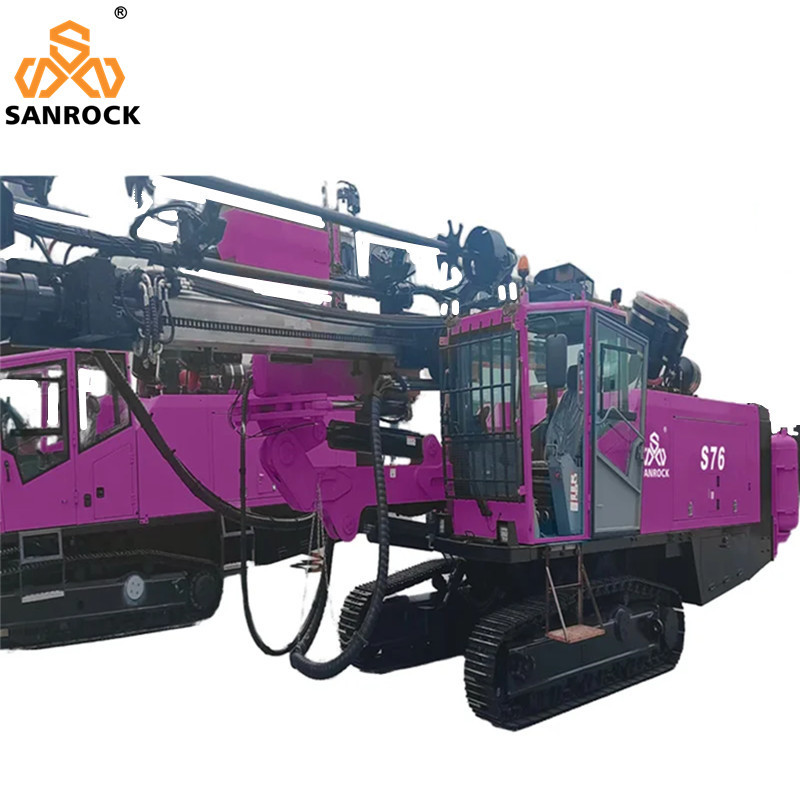

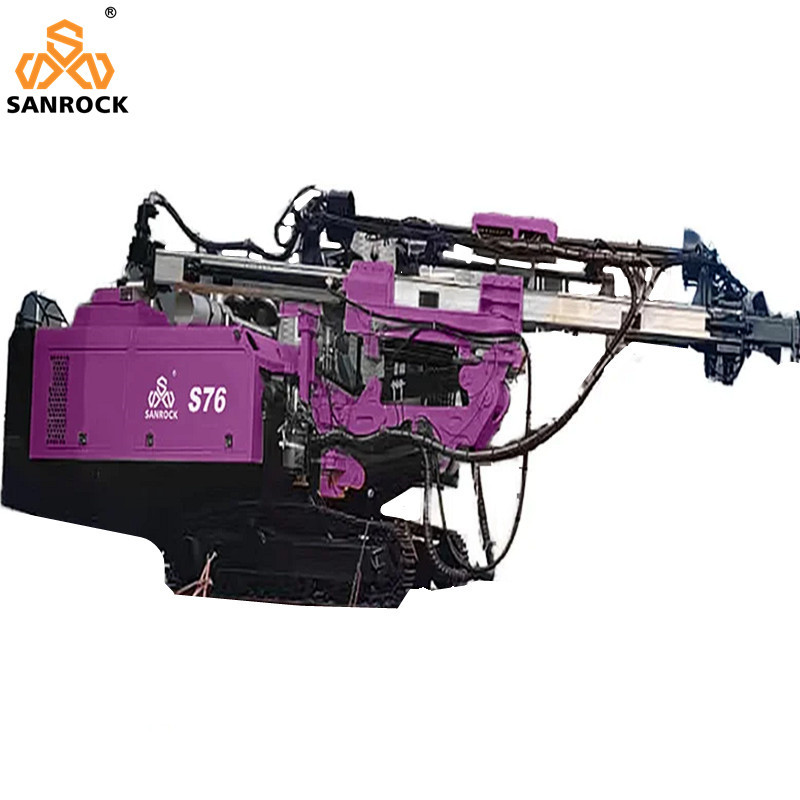

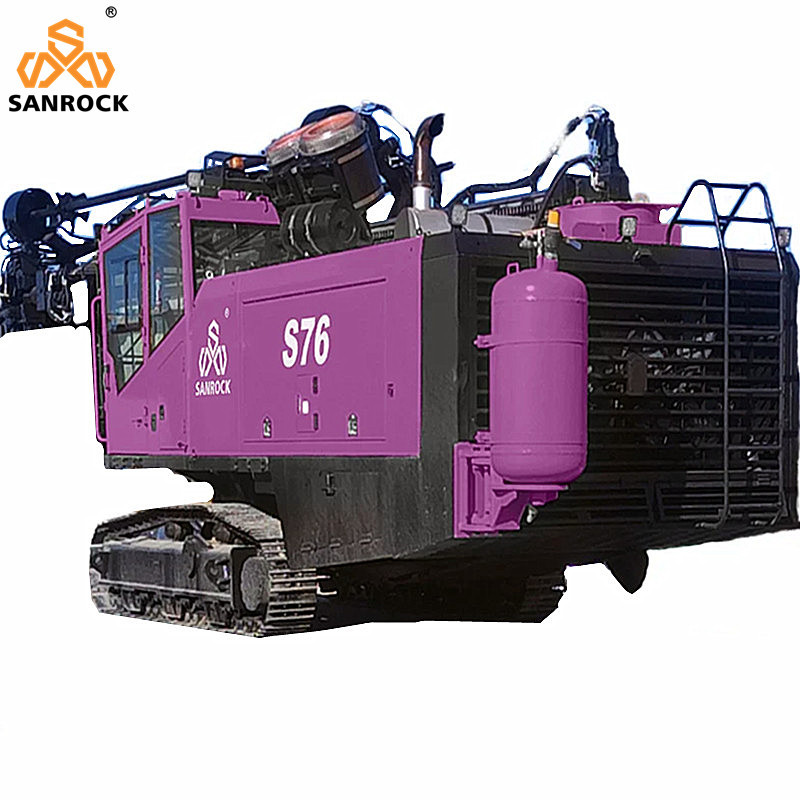

S76 is an All-In-One hydraulic DTH drilling rig, which equipped double cycloid motors can output massive torque and reduce possiblility of pipe-stuck situation. And the rotation rate can be continously adjusted according to differet rock formations. The imported seals for the rotation unit is with extraordinary performance and long service life. The high-output Atlas Copco air compressor features two stages of compression, powerful and realiable.
Mining Drilling Rig Crawler DTH Drilling Machine Hydraulic Borehole Drilling Rig


The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection. High degree of automation, efficient drilling, simple operation, flexible maneuverability, single operator for labor cost. Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed. Can easily cope with all kinds of drilling angel requirement of landscapes. The advantageous functions such as precise boom positioning,automatic rod handling.

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 0Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 1Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 2
Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 3



It is mainly used for drilling rock hole, such as rock bolt hole, anchor cable hole, blasthole, injected hole etc, at urban construction project, rod construction project, surface mining, high altiude surface mining, foundation pit construction, large scale open-bit mining, road slope protection project etc.

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 4Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 5Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 6

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 7Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 8

Product Description

Product name
DTH Drilling Machine
Power Type
Diesel
Engine
298KW
Application
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)
9920X2700X3500 mm
Weight
21000KG
Key Selling Points
High efficiency, high production capacity,Competitive Price
Drilling Diameter
140-190mm
Drilling Depth
Max.35m
Drilling hardness
f=6~20
Feed stroke
5895mm
Feed extension
1400mm
Lifting force
30kn
Method of Feed
motor+roller chain
Travelling speed
3km/h
Climbing capacity
30°
Ground clearance
360 mm
Drilling rod
6+1, φ 89mmX3000/2000mm
DTH hammer
3"/4"/5''
Working Pressure
24bar
Air consumption
24m³/min
Rotary torque (Max.)
3600 N. m
Fuel tank capacity
700L


Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 9

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 10Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 11Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 12

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 13

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 14

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 15

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 16

Company Information

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 17

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 18

Hydraulic DTH Drilling Rig Rock Borehole Drilling Machine Crawler Mining Drilling Rig 19

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
