Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drilling Rig
Power Type: Diesel
Power(w): 78KW
Drilling Depth: 10m
Drilling Diameter: 90-400mm
Product Name: Dth Drilling Rig
Air Consumption: 15~17 M3/min
Working Pressure: 1.0-1.7Mpa
Name: Solar Pile Drilling Rig Machine
Application: Solar Photovoltaic,drilling Blast Hole,mining And Construction
Weight: 5000KG
Dimension(l*w*h): 5000X2200X2550 Mm
Supporting Power: Yuchai
Highlight:

Solar Pile Driver Machine

,

Ground Screw Pile Driver

,

Photovoltaic Pile Driver Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Sanrock
Certification: IOS9001 CCC
Model Number: R69
Payment & Shipping Terms
Packaging Details: in wooden box, then in sea container
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Set/Sets per Month
Product Description

Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 0Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 1

Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 2

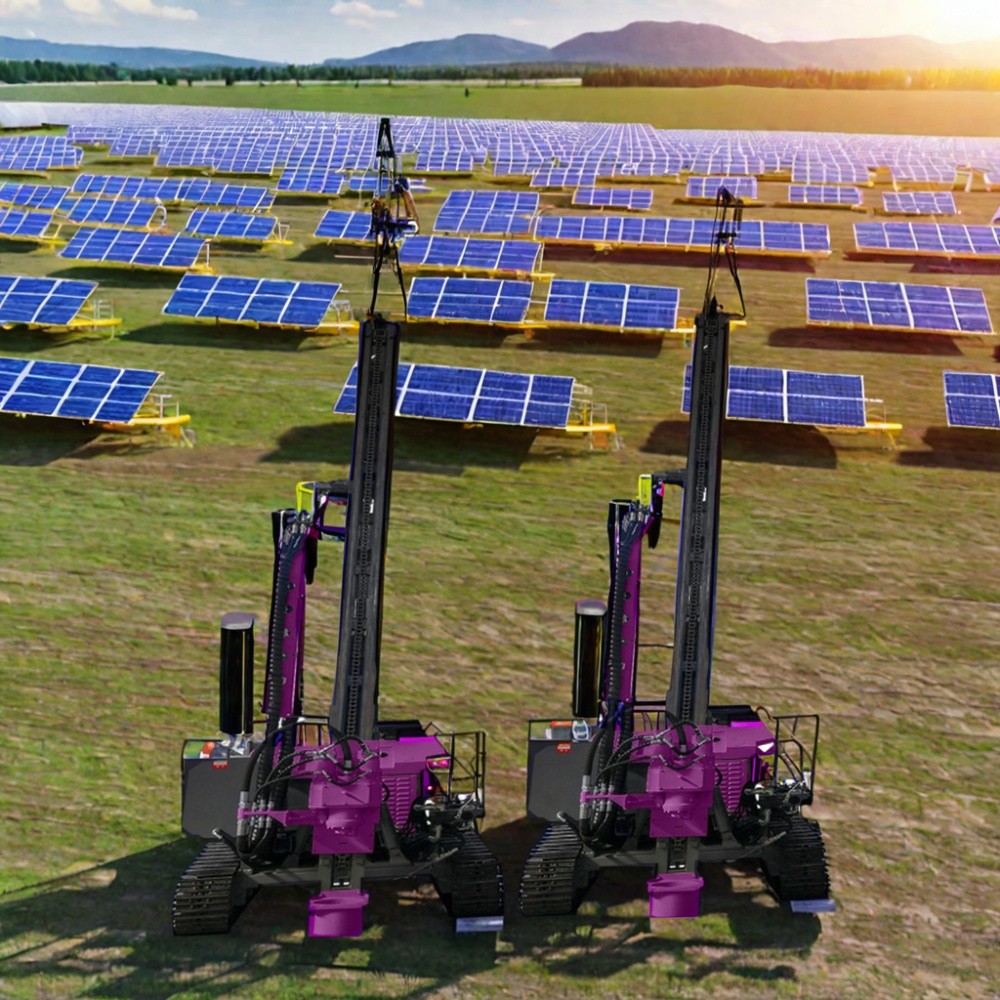

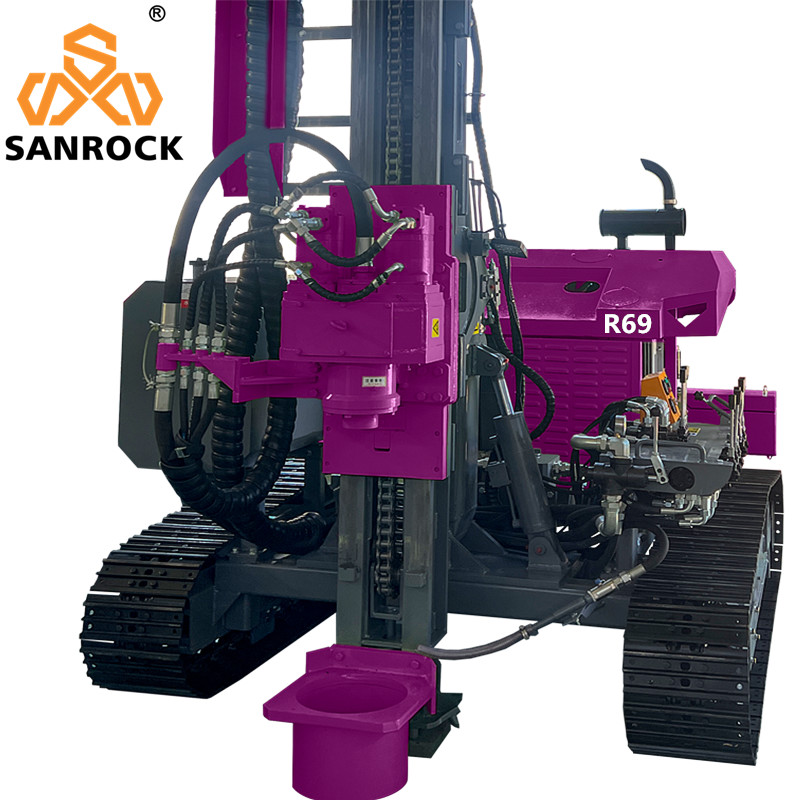

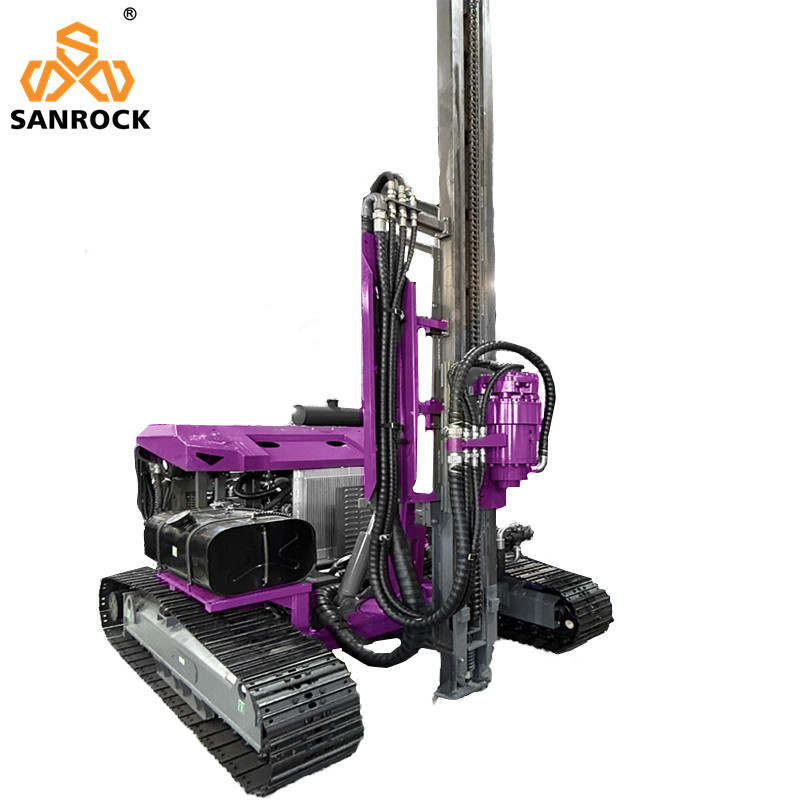

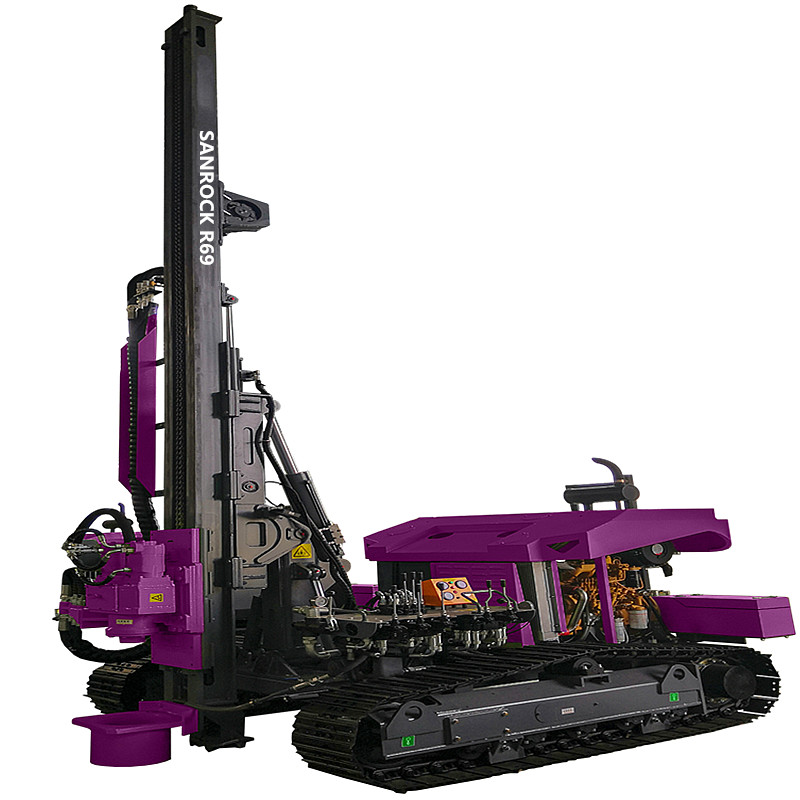

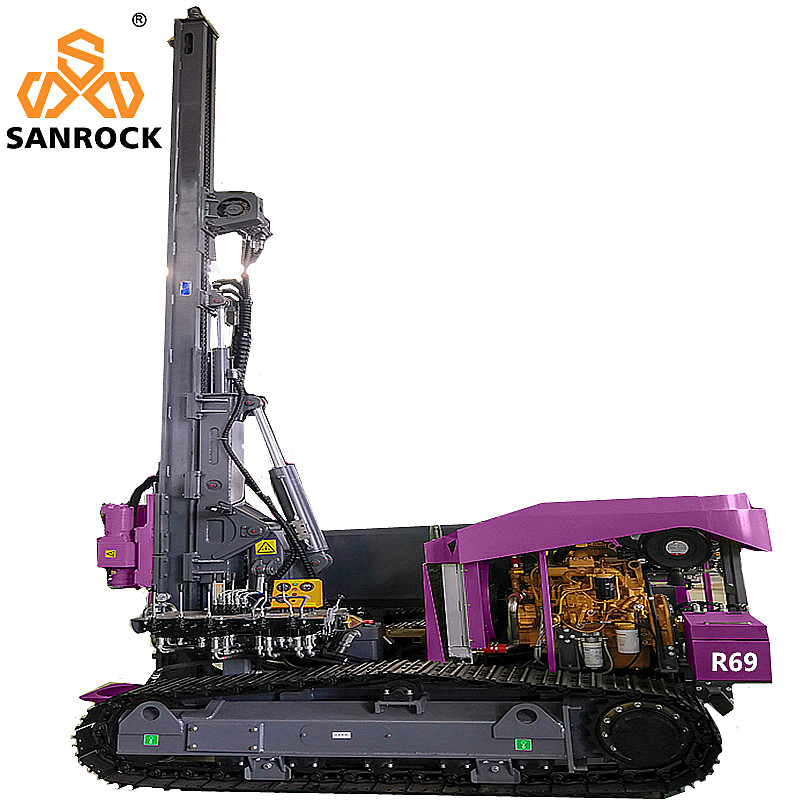

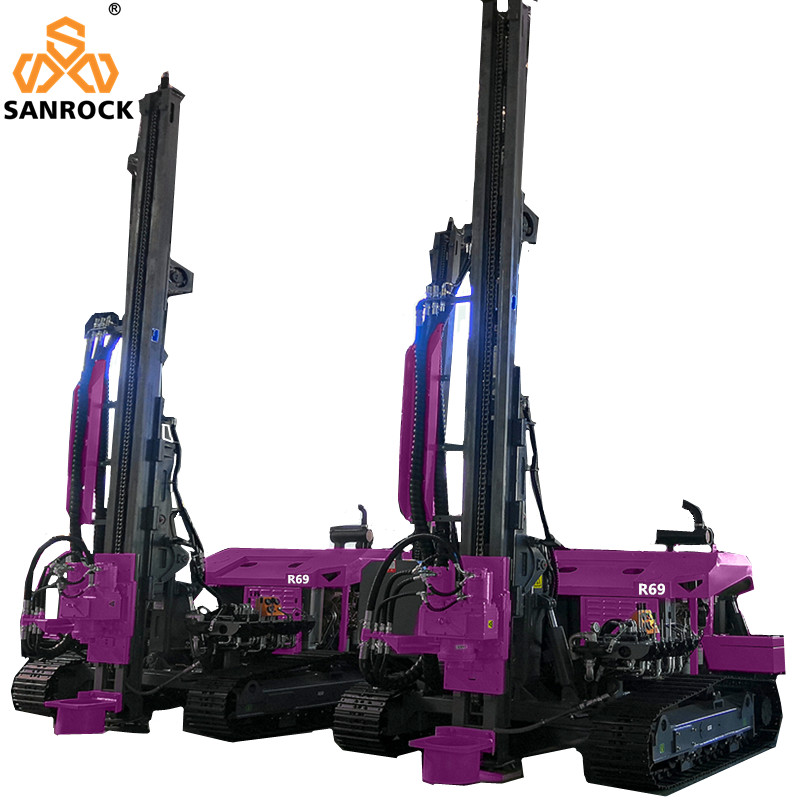

R69 Solar Pile Driver is kind of multifunctional pile construction machinery, with different configuration it can accomplish many fuctions, such as piling, pile extracting, and drilling on the stable layer of road before piling.. And mainly used in pile driving for photovoltaic solor power station , pile driving for highway guardrail, highway guardrail construction engineering construction, etc.

Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 3Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 4Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 5

Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 6

Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 7



Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 8

Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 9

Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 10

Products Description

Type
Rotary Drilling Rig
Power Type
Diesel
Supporting power
Yuchai
Rated Power
78KW
Dimension(L*W*H)
5000X2200X2550 mm
Weight
5000KG
Climbing capacity
30°
Drilling Diameter
90-400mm
Drilling Depth
Max.10m
Product name
Drilling Machine
Application
mining ,Solar Photovoltaic ,construction work
Feature
High Drilling Efficiency,Multifunction,Competitive Price
Keyword
DTH Drilliing Rig
Rotary Torque
7000N.m
Rotate speed
0-80r/min
Traveling speed
2 Km/h
Drilling rod
φ 89mmX3000mm
Compensation length
900 mm
Working pressure
1.0-1.7Mpa
Air consumption
15~17 m3/min
Drilling hardness
f=6~20
Volune of diesel oil tank
100 L
Feed stroke
3000 mm

Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 11Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 12Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 13Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 14Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 15

Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 16Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 17

Company Profile



Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 18

Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 19







Solar Pile Driver Machine Photovoltaic Hydraulic Pile Drilling Rig Ground Screw Pile Driver 20

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.



2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.



5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
