Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale

1Set/Sets per Month
MOQ
negotiable
Price
Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial Air Compressor
Name: Belt Driven Piston Air Compressor
Power Source: Diesel
Motor Power: 11KW /15KW / 18.5KW / 22KW
Application: Airbrush Spray Paint,blow Molding Machine/sand Blasting,bus,Medical
Cooling Method: Air Cooled
Transmission Way: Belt Driven
Voltage: 220V/380V
Mute: Low Noise
Feature: High Efficiency,Portable,Easy Operation
Color: Customized Color
Pressure: 8bar/115psi 7bar 10bar
Configuration: Portable
Type: Piston,Reciprocating
Highlight:

Industrial Piston Air Compressor

,

Mobile Piston Air Compressor

,

Belt Driven Piston Air Compressor

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: Customization
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

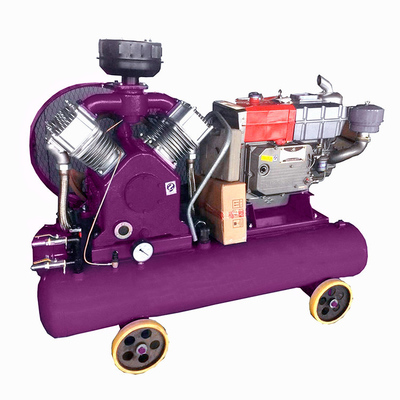

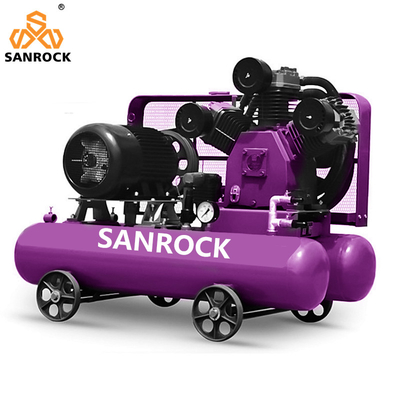

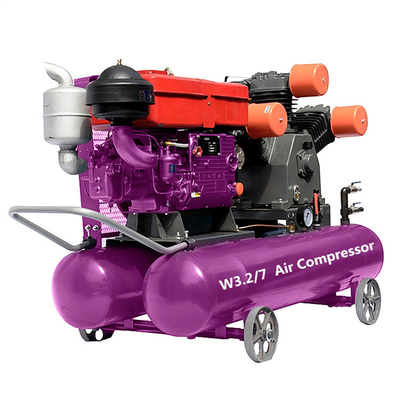

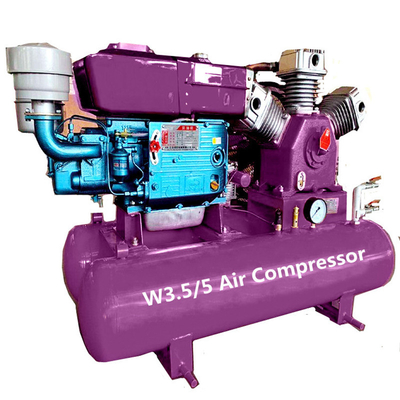

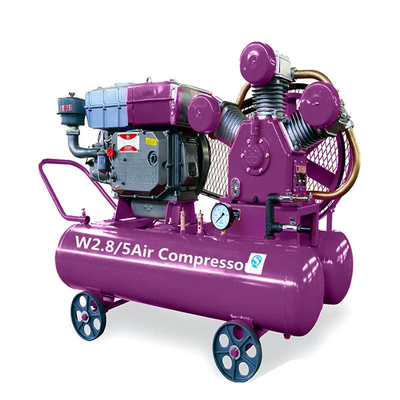

Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 0

Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 1











Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 2Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 3Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 4

Mainly used in mining, construction sites, supporting DTH drilling rig, rock drill, spraying machine.
Portable
 mining used air compressor with jack hammer price Double Air Tank Diesel Portable Best-Selling Engine Oil Piston Air Compressor are mainly used to supply stable and clean compressed air to the pneumatic tools and keep them working smoothly and efficiently.

Features of Mining Piston Portable Mini Air Compressor
1. Value plate and spring strip: made of special steel from Sweden and after special treatment.
2. Piston ring: special design; integral casting; excellent flexibility; lowest lubricating oil consumption.
3.Cylinder: made of boron cast iron; wear resistant; special suitable for dust condition.
4. Cylinder cover:extrusion process adopted; streamlined external appearance; good heat emission performance.
5.Crankshaft: made from ductile cast iron; rare magnesium alloy after heat treatment and surface quenching.
6.Simple structure,light weight, easy to move.
7. Easy operating and maintenance.





Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 5Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 6Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 7Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 8

Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 9

Product name:Portable Piston Air Compressors


Motor Power
Cylinder
qty*mm
Rotation Speed
r/min
F.A.D
m³/min
Working Pressure
Mpa(Kg/cm²)
Dimensions
L*W*H mm
Weight
kg
W-1.8/5
S1100*11kw
3 × Φ100
1200
1.8
0.5 (5)
1500*600*950
300
W-2.6/5
S1100*15kw
3 × Φ115
1030
2.6
0.5 (5)
1670*820*1150
450
W-2.8/5
S1100*15kw
3 × Φ115
1120
2.8
0.5 (5)
1670*820*1150
450
W-3.0/5
S1115*18.5kw
3 × Φ120
1070
3
0.5 (5)
1880*870*1230
460
W-3.5/5
S1125*18.5kw
3 × Φ125
1170
3.5
0.5 (5)
1880*870*1240
460
SF-3.6/5
S1125*18.5kw
4 × Φ115
1070
3.6
0.5 (5)
1960*860*1300
580
SF-4.0/5
S1125*18.5kw
4 × Φ120
1070
4.0
0.5 (5)
1960*860*1300
655
SF-4.5/5
S1130*22kw
4 × Φ125
1070
4.5
0.5 (5)
1960*860*1300
580
2V-3.5/5
S1125*18.5kw
4 × Φ115
980
3.5
0.5 (5)
1800*950*1300
650
2V-4.0/5
S1125*18.5kw
4 × Φ120
980
4.0
0.5 (5)
1800*950*1300
750
2V-4.5/5
S1130*22kw
4 × Φ130
980
4.5
0.5 (5)
1800*950*1300
750



Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 10Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 11



Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 12

Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 13Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 14

Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 15

Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 16

Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 17Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 18



Company Profile

Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 19

Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 20

Rotary Piston Compressor Belt Driven Industrial Air Compressor Machine Mobile Air Compressors for sale 21

1.What can you buy from us?

DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.



4.How is your quality control?

A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
