Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine

1Set/Sets per Month
MOQ
negotiable
Price
Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial Air Compressor
Name: Belt Driven Piston Air Compressor
Power Source: Diesel
Motor Power: 11KW /15KW / 18.5KW / 22KW
Application: Airbrush Spray Paint,blow Molding Machine/sand Blasting,bus,Medical
Cooling Method: Air Cooled
Transmission Way: Belt Driven
Voltage: 220V/380V
Mute: Low Noise
Feature: High Efficiency,Portable,Easy Operation
Color: Customized Color
Pressure: 8bar/115psi 7bar 10bar 5bar
Configuration: Portable
Type: Piston,Reciprocating
Condition: New
Dimension(l*w*h): 1780*1450*1140 Mm,1250*950*1120mm
Lubrication Style: Lubricated,Oil-free
Highlight:

Industrial Piston Air Compressor

,

Belt Driven Piston Air Compressor

,

3 Cylinder Piston Air Compressor

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SANROCK
Certification: CE ISO 9001:2015
Model Number: Customization
Payment & Shipping Terms
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Set/Sets per Month
Product Description

Industrial high pressure air compressor is used in pneumatic lock, pneumatic tool , tire inflation , blowing process, spray paint, sand blasting and fluidic element. Powerful type big head design, use good, enough material.

Strengthening design for the main components, dimension of the handpiece, weight all more than other factories, high safety, and low speed, particularly suitable for heavy duty,long time continuous operation, particularly high reliability and long service life. Especially air cooling design and air flow design, low exhaust temperature, not easy to carbon deposition and high efficiency.

Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 0Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 1Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 2

Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 3

Feature:
1. Low-speed design makes the products have low-noise running and long lifespan. It has the excellent air supply ability and good sealing performance.

2. Unique design of radiation, low air delivery temperature, non carbon deposition and high efficient

3. Designed with low speed in operation, the air-compressor is quieter in motion and longer in lifespan.

4. Reed valve design, more efficiency.

5. The core of air cleaner is made of filter paper, which acts well in filtering and absorbing noise and is durable.

6. Respirator channel using labyrinth structure, not leak oil.

Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 4

Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 5Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 6Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 7Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 8

Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 9

Product name:Portable Piston Air Compressors


Motor Power
Cylinder
qty*mm
Rotation Speed
r/min
F.A.D
m³/min
Working Pressure
Mpa(Kg/cm²)
Dimensions
L*W*H mm
Weight
kg
W-1.8/5
S1100*11kw
3 × Φ100
1200
1.8
0.5 (5)
1500*600*950
300
W-2.6/5
S1100*15kw
3 × Φ115
1030
2.6
0.5 (5)
1670*820*1150
450
W-2.8/5
S1100*15kw
3 × Φ115
1120
2.8
0.5 (5)
1670*820*1150
450
W-3.0/5
S1115*18.5kw
3 × Φ120
1070
3
0.5 (5)
1880*870*1230
460
W-3.5/5
S1125*18.5kw
3 × Φ125
1170
3.5
0.5 (5)
1880*870*1240
460
SF-3.6/5
S1125*18.5kw
4 × Φ115
1070
3.6
0.5 (5)
1960*860*1300
580
SF-4.0/5
S1125*18.5kw
4 × Φ120
1070
4.0
0.5 (5)
1960*860*1300
655
SF-4.5/5
S1130*22kw
4 × Φ125
1070
4.5
0.5 (5)
1960*860*1300
580

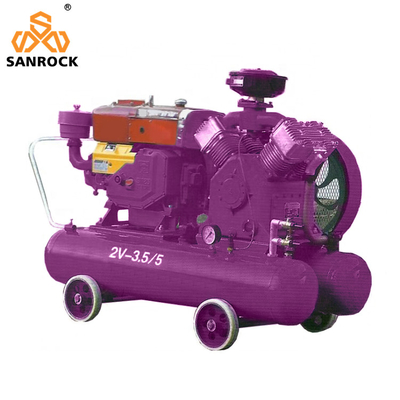

2V-3.5/5
S1125*18.5kw
4 × Φ115
980
3.5
0.5 (5)
1800*950*1300
650
2V-4.0/5
S1125*18.5kw
4 × Φ120
980
4.0
0.5 (5)
1800*950*1300
750
2V-4.5/5
S1130*22kw
4 × Φ130
980
4.5
0.5 (5)
1800*950*1300
750

Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 10Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 11Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 12Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 13Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 14



Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 15Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 16



Company Profile

Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 17

Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 18

Compact Air Compressor 3 Cylinder Belt Driven Air Compressor Industrial Piston Air Compressor Machine 19

1.What can you buy from us?

DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.



4.How is your quality control?

A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
